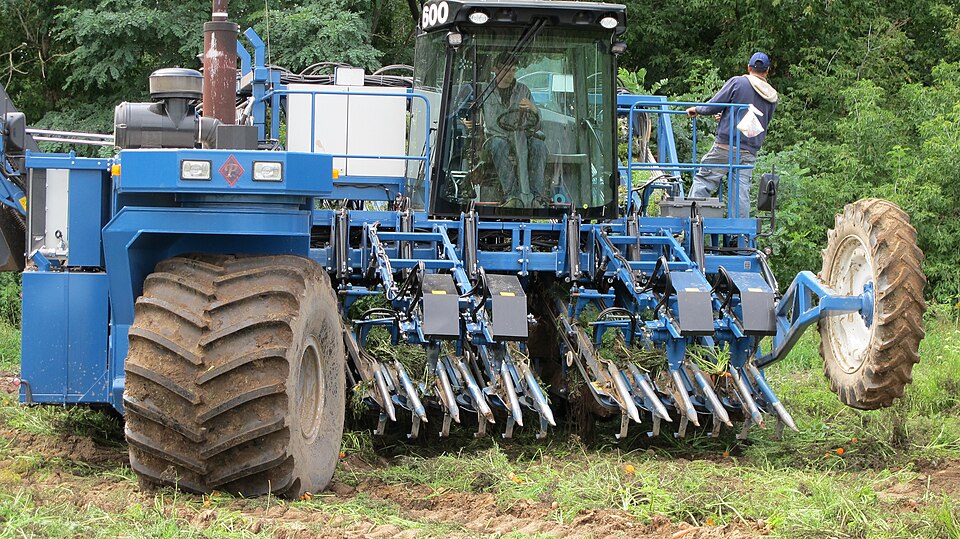

Carrot Harvester Product

Overview

The self-propelled belt-lift carrot harvester is engineered for mechanical root extraction in North American and European carrot production, where harvest must be completed within a narrow soil moisture window (optimal soil is moist but not waterlogged, reducing both root damage and soil adhesion). The machine lifts carrots via parallel friction belts, conveys them upward, and deposits them into an onboard hopper for transport to processing or storage.

Modern belt-lift harvesters achieve <2% ground loss and <1% root damage when soil conditions are suitable. The key advantage over blade diggers or share lifters is precise depth control and gentler handling; parallel belts slide under roots at 40–50 mm depth, lifting without shattering or skinning.

How it works

Foliage Removal: A front-mounted trimming head with reciprocating knife blade cuts carrot foliage 20–40 mm above the root crown, reducing contamination downstream and improving handling during subsequent processing. The trimmer height is adjustable via hydraulic cylinder to match ground elevation and row conditions.

Root Lifting: Two parallel Lift Belt (600 mm wide, running at 0.5 m/s) are positioned 150 mm apart—spacing suited to typical carrot row width. As the harvester moves forward at 4–8 km/h, the belts slide under carrot roots at 40–50 mm depth, gripping the root via friction and conveying it upward and forward onto the main elevator. Depth control is passive: a ground-following wheel maintains the belt entry depth as soil elevation changes. The belt speed is moderate (0.5 m/s) relative to forward speed (4–8 km/h), creating a gentle grip that extracts roots without skinning.

Conveying and Cleaning: Lifted carrots (still bearing soil) are deposited onto the Main Elevator, an inclined belt (35°, 900 mm wide, 0.4 m/s speed) with cross-bars (rubber bars at 250 mm pitch) preventing rollback. As carrots traverse the conveyor, friction with the belt and impact with cross-bars dislodges adhering soil. Loose soil falls through the conveyor frame; moisture content and soil type determine cleaning efficiency (light sandy soils clean >95%, heavy clay soils clean 60–70%). Air streams or dedicated soil screens can be added for additional cleaning in challenging conditions.

Hopper and Discharge: Cleaned carrots accumulate in the Bunker Tank (800 L capacity), an onboard stainless steel hopper designed to prevent rust and facilitate frequent washing. A side-mounted discharge auger (150 mm diameter helical screw, 1.5 kW motor) conveys roots horizontally into a trailing truck or bins at rates of 0.8–1.2 tonnes per minute. The operator engages the auger intermittently (every 2–3 minutes for a full hopper), avoiding spillage and managing truck arrival/departure logistics.

Hydraulic Control: A 40 cc/rev variable-displacement axial piston pump (load-sensing, 210 bar rated) supplies pressurized fluid to the rear steering cylinder (60 mm bore, 280 mm stroke) and (optionally) a height-adjustment cylinder for the trim head. The pump is sized modestly because the belt-lift mechanism is mechanically driven (no hydraulic motor); electrical motors power the belts and conveyors. This hybrid approach reduces fuel consumption and improves efficiency compared to fully hydraulic designs.

Electrical Integration: A 60 A three-phase alternator supplies 24 V DC to independent motor circuits: trim motor (2 kW), lift belt motor (4 kW), main conveyor motor (3 kW), and auger motor (1.5 kW). Soft-start contactors ramp motor inrush current, protecting the alternator. Variable-frequency drives on the lift and conveyor motors allow the operator to modulate speed matching field conditions (wetter soils require slower speeds for better cleaning and gentler handling).

Chassis and Mobility: The self-propelled chassis uses 11.2/50 agricultural radial tires on dual axles with 2.3:1 reduction gearing. Front-wheel drive and leaf spring suspension (20 kN/m rate) with hydraulic dampers provide traction on slopes up to 12° and smooth ride over field obstacles. The straddle geometry allows the machine to harvest single rows or dual rows (if equipped with dual lift belt sets), typical row spacing in carrot fields.

Root Quality Preservation: Carrots are sensitive to mechanical damage, which reduces storage life and creates pathways for decay fungi. Belt-lift harvesters minimize damage because the friction-based grip is gentler than blade cutting or aggressive vibration. Skinning is rare; bruising is typically <1% for mature carrots harvested in optimal soil conditions. Broken roots (shattered root tips) occur in compacted or rocky soils; machines operating in such fields require slower forward speeds (4–5 km/h vs. 6–8 km/h) to reduce impact shock.

Harvest Logistics

Typical day: the harvester operates 10–12 hours, covering 1.2–1.8 hectares depending on row length and soil conditions. Two trucks with 2–3 bin capacity each rotate collection; as one truck is loading (10–15 minutes), the other is in transit to the processing facility. Root temperature at harvest is field temperature (5–15 °C in spring, 15–25 °C in fall); rapid cooling to 0–4 °C is essential to prevent respiration and spoilage, typically achieved within 2–4 hours of harvest.
