Centrifugal Water Chiller Product

Overview

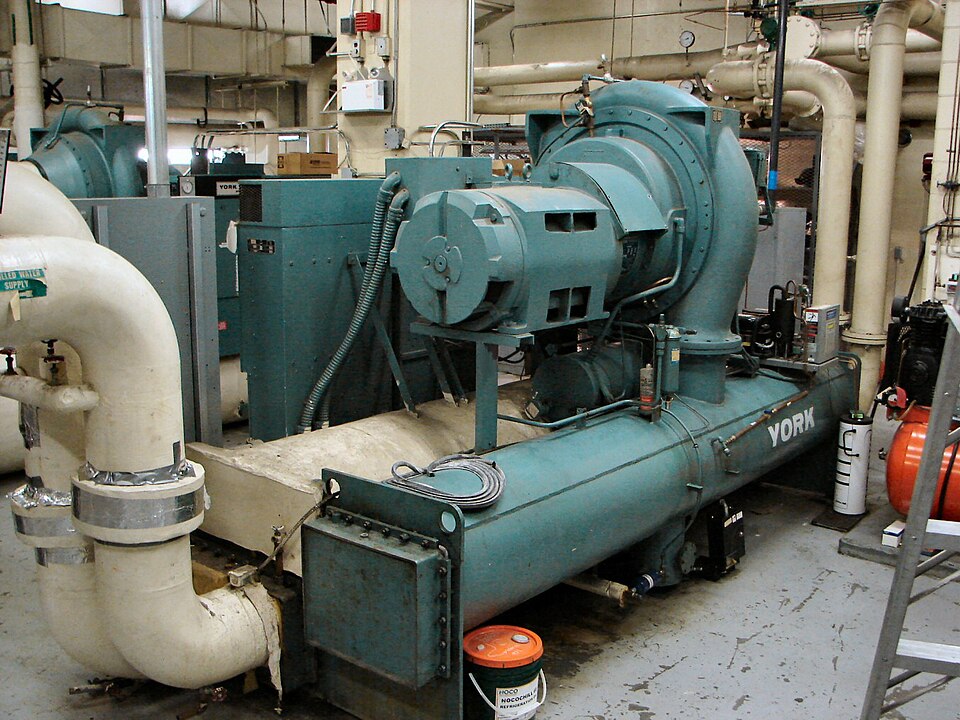

A centrifugal water chiller is the workhorse cooling machine of large buildings, campuses, and district cooling plants. It produces chilled water, typically leaving at 7 °C, that is pumped to air handlers and fan coils throughout a facility. Unlike reciprocating or scroll machines, it compresses refrigerant dynamically: a high-speed Compressor Impeller flings vapor outward, and the Vaned Diffuser converts that velocity into pressure. Because there are no rubbing compression surfaces, centrifugal machines achieve the highest efficiencies and longest service lives of any chiller class, with many units running 30 years or more.

The machine has four refrigerant-side elements arranged in the classic vapor-compression cycle: the Centrifugal Compressor, the Water-Cooled Condenser, the Expansion / Metering Section section, and the Flooded Evaporator. Supporting them are the Lubrication Oil System, the Motor Starter / VFD, and the Unit Control Panel.

How it works

Cool, low-pressure refrigerant vapor leaves the top of the flooded evaporator, passes through the Mist Eliminator mesh that strips out liquid droplets, and enters the compressor eye. The Inlet Guide Vanes ring ahead of the impeller pre-swirls this flow; closing the vanes is the primary capacity control, smoothly throttling the machine from full load down to roughly 10%. The impeller, an aluminum-alloy wheel turning at anywhere from 3,000 rpm in direct-drive designs to 30,000 rpm in geared ones, accelerates the gas to near-sonic tip speed. The diffuser and Discharge Volute then recover that kinetic energy as a pressure rise of roughly 3:1 per stage with R-134a.

Hot discharge gas enters the Condenser Shell, where a Discharge Gas Baffle spreads the jet before it reaches the Condenser Tube Bundle. Cooling-tower water at about 30 °C flows inside the tubes; refrigerant condenses on their finned exteriors and rains down to the sump, where the Subcooler Section section cools it a few kelvin below saturation. A High-Side Float Valve and Orifice Plate then drop the liquid to evaporator pressure — about 350 kPa absolute for R-134a at 5 °C — flashing a fraction of it and cooling the rest.

In the Evaporator Shell, the Refrigerant Distributor spreads this cold liquid along the Evaporator Tube Bundle. Building chilled water flows inside the tubes and the refrigerant pool boils on their outside, absorbing heat and closing the cycle. Water connections at each end terminate in bolted Waterbox heads that swing open for tube brushing, the main maintenance task on the water side.

Drive and bearings

Most centrifugal chillers use a hermetic Hermetic Drive Motor cooled by liquid refrigerant sprayed over the windings, which keeps the motor compact and eliminates shaft penetrations to atmosphere. Embedded Motor Winding RTD sensors guard the insulation. Geared machines couple the motor to the impeller through a precision Helical Gear Pair speed increaser; the shaft rides in babbitt-lined Journal Bearing sleeves on a pressurized oil film. The Lubrication Oil System is therefore a startup-critical subsystem: the Oil Pump must prove 100–250 kPa of net oil pressure before the controller releases the start, the Oil Sump heater keeps refrigerant from diluting the oil during off cycles, and the Oil Cooler and Oil Filter condition the supply during running. Newer oil-free designs replace all of this with active magnetic bearings and direct drive, trading the oil loop for power electronics.

Capacity control and surge

The defining operating constraint of a centrifugal compressor is surge: at low flow and high head, the impeller can no longer sustain the pressure rise and flow reverses violently. The Unit Control Panel avoids this by coordinating the guide vanes with compressor speed when a variable-frequency drive is fitted. The Motor Starter / VFD on modern machines is usually that VFD — six or more IGBT Power Module power stages fed through a DC Bus Capacitor Bank bank — which both soft-starts the multi-hundred-kilowatt motor and cuts part-load power dramatically, since most chillers spend the vast majority of operating hours below 60% load. Phase Current Transformer sensors provide overload protection and demand limiting, and a Line Contactor isolates the drive when the machine is off.

The controller itself runs on the Controller Board, reading six or more Thermistor Sensor thermistors and three Pressure Sensor transducers. Its primary loop holds leaving-chilled-water temperature to ±0.3 K; its protective logic watches evaporator pressure (freeze protection), condenser pressure (head limit), bearing temperature, and net oil pressure. Operating data and fault history display on the panel's LCD Panel with a Touch Digitizer overlay, and the same data is served to the building automation system over BACnet or Modbus.

Ratings and standards

Performance is certified to AHRI Standard 550/590 at standard conditions, and machine rooms holding these chillers must meet ASHRAE 15 refrigerant-safety requirements, including refrigerant monitors and mechanical ventilation. The pressure vessels are built to ASME Section VIII. The industry transition away from R-134a (GWP 1,430) toward low-pressure R-1233zd(E) (GWP ~1) is reshaping impeller and vessel design, since the replacement refrigerants run below atmospheric pressure on the low side and require larger gas passages for the same capacity.
