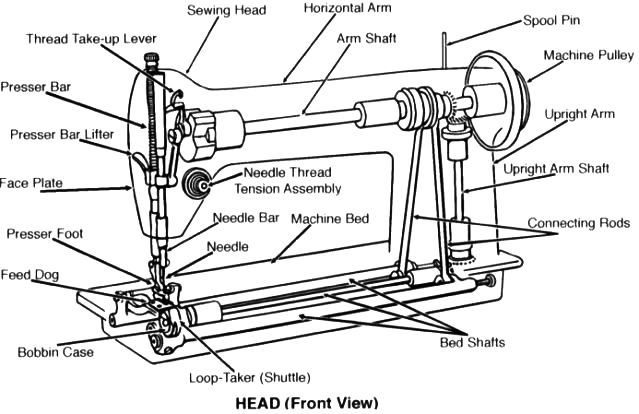

Chainstitch Machine Product

Overview

The chainstitch machine is a single-needle flat-bed sewing system designed for high-speed production of chain stitches in light to medium-weight fabrics. Chain stitching is an interlocking stitch formed by a needle thread looped and caught by a rotating looper (shuttle), creating a characteristic loop-on-loop appearance on the underside. Unlike lockstitch machines, which require both needle and bobbin coordination through complex cam mechanisms, chainstitch machines use a simpler rotating looper to intercept the needle thread with a single strand of bobbin thread.

The machine is driven by a precision servo motor regulating stitch rate from standstill to 5000 spm, making it suitable for production environments requiring fine control and quick start/stop behavior. Feed dog motion is mechanically synchronized with needle bar oscillation via a crankshaft and cam train, ensuring stitch length consistency across varying fabric densities. Tension is controlled through dual sets of adjustable tension discs—one for needle thread and one for looper thread—allowing operators to fine-tune loop balance and seam security.

Chainstitch machines are widely used in apparel finishing (hemming, topstitching), shoe assembly, bag and luggage seaming, and decorative work where visible loop chains are acceptable or even desired. Industrial models accept decorative threads up to 40-weight, enabling both functional and aesthetic applications.

How It Works

The sewing cycle is a continuous mechanical sequence synchronizing four primary motions:

Needle Bar Oscillation

The servo motor drives a main crankshaft at a constant angular velocity. An offset throw on the crankshaft converts rotation into vertical oscillation of the Needle Bar, moving the needle through a fixed arc depth. As the needle rises on the return stroke, thread tension is released momentarily, allowing the Looper Shuttle to rotate and insert its hook beneath the needle thread. Precision Needle Guide Ring rings constrain the needle bar, preventing lateral deflection that would cause thread shredding or needle breakage.

Looper Interception

The rotating Looper Shuttle (shuttle) has a hook face that times to intercept the needle thread loop as the needle rises. The looper completes approximately one full rotation per stitch cycle. The bobbin thread is routed through the looper body, so as the looper hook passes through the needle loop, it catches and pulls the bobbin thread, forming the interlocking stitch on the underside of the fabric. The looper is driven via a separate cam lobe on the main drive shaft, timed to operate in phase with needle motion.

Feed Dog Advancement

A Feed Linkage Arm connected to a second crankshaft throw transfers motion to the Feed Dog Foot, a serrated metal foot that reciprocates beneath the needle plate. As the needle rises out of the fabric, the feed dog pushes forward by a fixed stroke distance (typically 2–5 mm, set via a mechanical stop or electronic control). The fabric advances by this amount each cycle, and when the needle descends again, the feed dog retracts to prepare for the next stroke. A Feed Pressure Spring biases the feed dog downward against the fabric; operators adjust pressure via the Pressure Adjustment Screw to accommodate different fabric weights without slippage.

Thread Tension Regulation

Both needle and looper threads pass through separate Needle Tension Disc and Looper Tension Disc disc assemblies. These pairs of smooth or slightly textured metal discs clamp the thread between them, creating controllable friction that meters thread flow. A Tension Adjustment Knob adjusts spring pressure on each disc pair, typically with an indexed dial from 0 (minimum tension) to 10 (maximum tension). Proper balance is critical: if needle tension is too loose, loops form on the top side; if looper tension is too loose, the stitch security degrades and thread nesting fails. Experienced operators achieve this balance through test stitching and incremental adjustment.

Frame and Drive

The Frame and Support consists of a cast iron Machine Base and Vertical Column providing a rigid, vibration-dampened platform. The servo motor is mounted low on the frame, with the main Main Crankshaft running horizontally through sealed bearings in a Gearbox Housing that also contains the cam train. All bearings are pre-lubricated and sealed with Oil Seal components to maintain cleanliness and reduce maintenance intervals. The transmission is enclosed, requiring no operator adjustment or lubrication during typical 8-hour shifts.

Control and Operation

A foot pedal connected to a Control Panel Box modulates motor speed from 0 to 100% of maximum. The Microcontroller (programmable logic controller) receives pedal input and encoder feedback from the servo motor, adjusting power to maintain the requested stitch rate even as needle load varies with fabric density or thread twist. Modern machines include stitch-count memory, allowing operators to dial in a fixed stitch length (e.g., 5 mm) and the controller automatically adjusts motor speed to maintain consistency.

Electrical components include a Relay circuit for motor contactor control and emergency stop, a Bare PCB drive board managing servo current, and sensor inputs for needle position detection. The Control Panel Box houses the speed dial, on/off switch, and indicator lamps for ready/running/fault states.

Applications and Variants

Apparel finishing: Hemming, topstitching, topstitching of collars and cuffs. The visible chain stitch adds decorative appeal and is a mark of quality finishing in premium garments.

Footwear: Upper seaming, insole attachment, and decorative vamp stitching. Chain stitches are preferred where loop-chain aesthetics are acceptable and seam strength is less critical than in load-bearing joints.

Home textiles: Decorative quilting on blankets and throws. The slight elasticity of chain stitches accommodates fabric stretch better than rigid lockstitches.

Bag and luggage: Seaming of light canvas and synthetic fabrics. Single-thread seams reduce weight and thread bulk.

High-speed models capable of 6000+ spm are used in high-volume production environments, while slower machines (2500–3500 spm) are preferred in job shops where operator control and thread handling precision are paramount. Some machines feature adjustable stitch length via mechanical cam followers or electronic needle lift adjustment, expanding versatility across product ranges.

Maintenance

Routine maintenance includes:

• Daily cleaning of lint and thread trimmings from feed dog and looper areas
• Weekly oiling of external pivot points and cam followers (where exposed)
• Monthly inspection of needle clamp tightness and needle straightness
• Quarterly cleaning and re-tensioning of drive belt
• Annual seal and bearing inspection, particularly if the machine operates continuously in dusty environments

The sealed gearbox and enclosed cam train minimize contamination and extend service intervals to 5000–10,000 operating hours before major overhaul, depending on duty cycle and fabric type.
