Chocolate Fountain Product

Overview

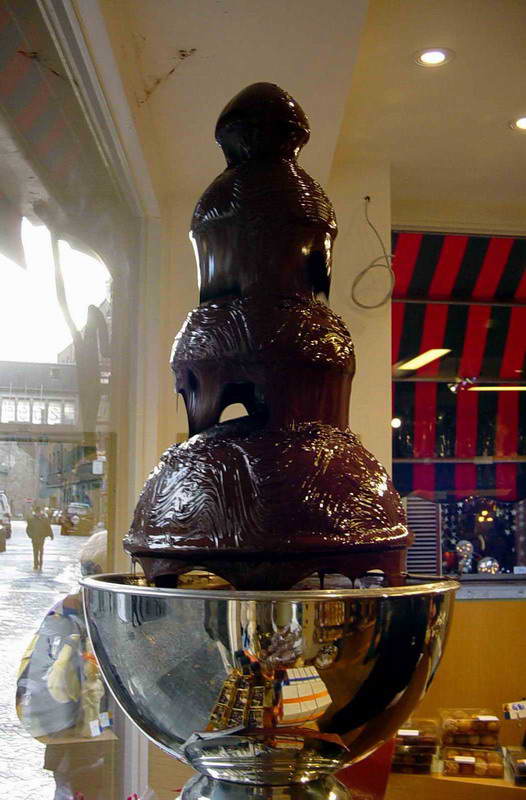

A chocolate fountain is an elegant countertop appliance for parties and events that displays flowing chocolate in a cascading waterfall. Guests dip strawberries, marshmallows, cookies, and fruit into the tiers as chocolate flows down, then return the dipped items to plates.

The machine comprises a heated Heated Basin holding 3–5 L of melted chocolate, an electric Circulation Pump that drives a central Central Auger Column, and a series of Tiered Catch Plate Set plates that guide and display the chocolate cascade. A Heating System maintains the chocolate at 45–50°C to keep it fluid and smooth.

The user fills the basin with melted chocolate (or chocolate chips that melt in place), switches on the Control Panel, and the Spiral Auger Screw begins rotating. Chocolate is scooped up and pushed upward through the central column, spilling over the top Top Apex Plate and cascading down the successive Middle Cascade Plate and Bottom Collection Plate plates. Gravity returns the chocolate to the basin, and the cycle repeats continuously, creating a theatrical visual effect while keeping the chocolate uniform in temperature.

How it works

Electrical power (220–240 V, 50 Hz) enters through the Power Cord and Mains Plug. The Control Panel contains a Main Power Switch that gates current to both the heating circuit and the pump motor circuit.

The heating system consists of a Heating Element (typically a 200–300 W resistive coil or surface heater) in thermal contact with the Stainless Steel Bowl. A Temperature Sensor (NTC thermistor) is mounted inside the basin to measure chocolate temperature. The heating element is controlled via a thermostat or simple relay circuit, comparing thermistor readings against a setpoint. The user adjusts the setpoint via the Temperature Control Dial on the control panel. A Thermal Fuse provides a safety cutoff at ~60°C (above 50°C setpoint).

When powered, the AC Motor—an AC induction motor rated ~30 W—starts spinning. This motor is mechanically coupled to the Pump Impeller Screw, a screw or gear pump that drives the central Spiral Auger Screw. The auger is a progressive-pitch helical screw, often made of food-grade stainless steel, that rotates at ~60–80 RPM (slow enough that chocolate does not aerate or break into droplets prematurely).

As the auger rotates, it scoops chocolate from the basin (sitting at the auger's base) and pushes it upward along the interior of the Central Tube, a stainless steel or high-temp plastic tube. The auger pitch and bore diameter are designed so that the scoop volume and rotational speed together pump roughly 0.5–1 L/min—a visual flow rate rather than a practical cooking rate.

Chocolate emerges at the top of the column and spills over the Top Apex Plate, a small ring plate at the column apex. The chocolate flow spreads across the top tier's edge and cascades down onto the Middle Cascade Plate, a larger concentric ring. Here the flow spreads again and falls to the Bottom Collection Plate, the largest ring, where it collects and drains back into the Heated Basin.

This design allows guests to dip items into any tier they prefer: the narrow top for light dips, the broader middle or bottom for heavier coatings. The tiers are typically removable, stainless steel rings with a slight lip that guides chocolate radially outward before it falls to the next tier. Chocolate continuously recirculates, staying warm and smooth as it moves.

Temperature control is crucial: below 40°C, chocolate thickens and flows sluggishly; above 55°C, cocoa butter begins to separate, and the chocolate becomes thin and separates into oil and solids. The Heating System and Temperature Control Dial are designed to hold temperature within a tight band (±2–3°C) of the setpoint, typically 48–50°C for dark and milk chocolate.

The O-Ring Seal (O-ring) prevents chocolate from leaking from the basin during operation, and the Non-Stick Coating (a non-stick, food-safe polymer) inside the bowl prevents chocolate from sticking and facilitates cleanup. The Rubber Isolation Foot (rubber, elastomeric) isolate the unit from the serving table, reducing vibration and suppressing noise from the motor and pump.

Safety is passive: the motor is low-speed (no high-velocity parts), the heating power is moderate, and the Thermal Fuse prevents overheating. Chocolate itself is a food-safe substance, though the design keeps the motor and pump inside the basin and isolated from the cascading chocolate, ensuring that any small leakage or splashing does not contaminate food or the machine.

Operation is simple: fill, heat, switch on, and watch. No timers or complex logic needed. Guests dip, and the fountain runs until the user switches it off, then lets the chocolate cool and solidify for cleanup (or uses a heat gun to re-liquefy and drain).
