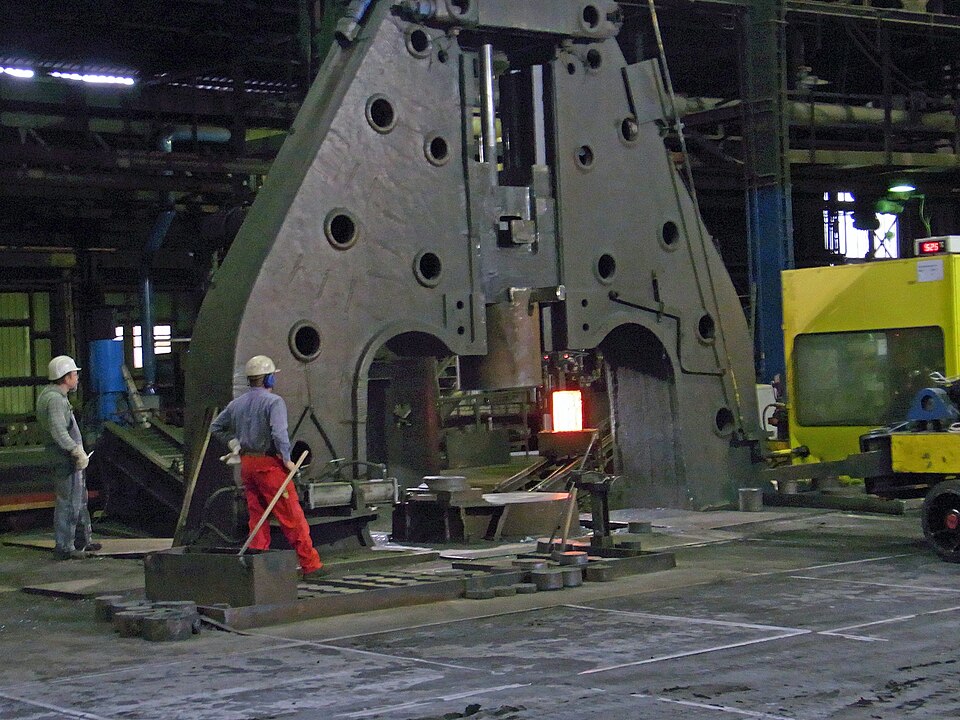

Closed Die Forging Press Product

Overview

A closed die forging press is a precision metalworking machine that forces heated metal stock into a mating set of steel dies to produce finished parts with little or no secondary machining. The process forms complex geometries—connecting rods, crankshafts, turbine blades, and fasteners—by plastic deformation under high pressure.

Modern closed die presses operate at 500–5000 tons of force, with hydraulic actuation dominating industrial use due to superior load control and speed flexibility compared to mechanical alternatives. The dies, typically made of H13 hot-work tool steel hardened to 38–42 HRC, are precision-machined to match each other, with draft angles and overflow cavities to accommodate material flow and internal porosity relief.

The machine consists of a rigid frame maintaining alignment between upper and lower platens, a driven ram delivering force at controlled speed, a hydraulic power unit with directional and pressure logic, temperature monitoring and cooling systems, and a programmable control system managing the complete forging cycle. Safety interlocks and fixed guards prevent operator contact with the dies.

How it works

The operator loads a heated metal blank (forged or cast) into the lower die cavity. The press cycle begins when the PLC receives a start signal. The main hydraulic pump, driven by an electric motor at constant 1500 rpm, delivers pressurized fluid to the main cylinders. The directional control valve routes oil to advance the ram downward at a pre-set speed (typically 0.1–0.5 m/s), initiating metal flow into both upper and lower die cavities.

As the ram descends, pressure rises in the cylinders. The metal deforms plastically, filling the die cavity and the overflow reservoir (biscuit). Pressure transducers monitor load in real time; if pressure exceeds a preset safety threshold, the PLC triggers the relief valve to prevent die damage or frame overstress. Near the end of stroke, the operator may hold the ram at peak pressure for 1–5 seconds to allow oxygen-free forging in sealed cavity zones, improving internal quality.

Once the cavity is filled and the metal temperature has dropped sufficiently to avoid excessive flash, the ram retracts. The directional valve reverses, returning pressurized oil to tank and allowing the cylinder return springs to pull the ram upward. Simultaneously, a solenoid-controlled ejector cylinder activates, pushing the finished forging upward and out of the lower die cavity for manual or robotic removal.

The entire cycle—load, descend, hold, retract, eject—takes 20–60 seconds depending on part size and material. The dies and ram platen are often water-cooled or air-cooled to extend tool life and maintain consistent metal flow characteristics. Oil cooling through the main heat exchanger maintains the hydraulic fluid at 40–50 °C, preserving viscosity stability and seal elasticity over millions of cycles.

Die Design and Cavity Engineering

The closed die cavity is engineered with precise draft angles (typically 3–7° depending on part geometry) to allow easy ejection without sticking. Overflow reservoirs, called biscuits, capture excess metal as the dies meet, improving internal soundness by helping gases and oxides escape. Pin gates and blocker pins in some designs pre-shear flash before it enters the overflow, reducing trimming load downstream. Computer finite-element analysis (FEA) of cavity filling is routine, using software like Deform or QForm to optimize material flow and predict die wear.

Dies are manufactured from alloy blocks (often starting at 400–600 kg each), then rough-machined, cavity-formed (often by EDM for complex shapes), hardened, and precision ground. A matched pair costs $10,000–$50,000 per cavity depending on complexity and production volume. At high volumes, the cost is amortized over part quantity, making closed die forging economically superior to casting or machining for parts above 0.5 kg.

Hydraulic System Architecture

The pump displacement is typically variable (swashplate), allowing the PLC to modulate flow and pressure by changing pump tilt. A pressure compensator maintains system pressure at the set point, reducing energy waste during long holds or when the ram is fully retracted. A pilot-operated directional spool ensures fast, smooth transitions between advance, hold, and retract phases.

Relief valves—main system relief at 25 MPa, pilot relief at 3–5 MPa—protect against overpressure. Counterbalance cartridges on each cylinder port prevent free-fall of the ram under its own weight during retract, ensuring operator safety and load control. Solenoid-controlled pilot signals to the main directional valve are hardwired in series with the mechanical E-stop button, guaranteeing that loss of electrical power halts all motion within milliseconds.

Tooling Changeover and Flexibility

Modern presses feature quick-change die clamping using hydraulic or mechanical locks, allowing a skilled operator to swap dies in 30–60 minutes. Cavity dimensions may range from 20 mm (for small fasteners) to 600 mm (for large aerospace forgings), with tonnage requirements scaling with part mass and flow resistance. A single press with interchangeable die sets can produce a dozen different part families, offering manufacturing flexibility for job shops and captive forge facilities.

Quality and Metallurgical Benefits

Closed die forging produces mechanical properties superior to casting because the forging process refines grain structure and eliminates internal porosity. Tensile strength is typically 10–20 % higher, and fatigue strength can exceed cast or machined equivalents by 50 %. Critical aerospace and automotive components—crankshafts, connecting rods, turbine discs—are forged before final machining to specifications such as AMS 2300 (aerospace) or DIN 7155 (automotive).

Traceability and material certification are integral; each forging lot is chemically analyzed (carbon content, alloy ratios), mechanically tested (tensile, hardness, impact), and documented per customer and regulatory requirements. This makes closed die forging the process of choice for safety-critical applications.

Maintenance and Operational Considerations

Hydraulic systems require oil analysis every 500–1000 operating hours to detect wear metals and contamination. Pump displacement checks and valve pilot testing are part of standard preventive maintenance. Die inspection every 50k–100k cycles identifies cracks, wear patterns, and erosion; cavities are polished or surface-treated (TiN, CrN) to extend life. Cooling system flushing and descaling maintain heat transfer efficiency, preventing temperature excursions that can reduce die life by 50 %.

A well-maintained closed die press achieves 10,000–15,000 operating hours per year in continuous shift operations, with downtime typically under 5 % when hydraulic, electrical, and die support systems are managed proactively.
