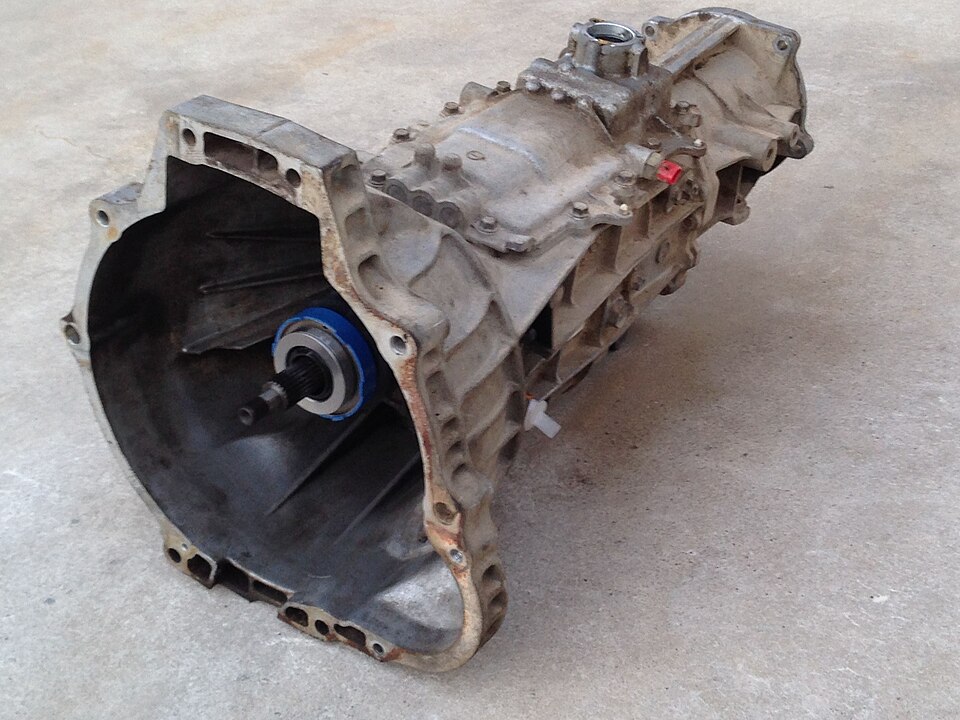

Clutch Kit Product

Overview

A clutch kit is a friction coupling that enables a driver to mechanically engage and disengage the engine from the transmission. The driver operates the clutch pedal, which via a cable or hydraulic master/slave cylinder, retracts a spring-loaded Release (Throwout) Bearing, causing the Pressure Plate Assembly to release clamping force on the Clutch Friction Disk. With the friction disk free-spinning and unpowered, the driver can shift the manual transmission into the desired gear without grinding. Re-engaging the pedal allows the pressure plate to re-clamp the disk, smoothly transmitting engine torque to the transmission input shaft.

The clutch operates in a harsh thermal and mechanical environment: repeated engagement (10,000+ times over a vehicle's life) generates 200–600°C local temperatures at the friction surfaces, while the disk sees continuous pressure cycling. Friction-disk lining wear is inevitable; replacement at 100,000–200,000 km is standard maintenance.

How It Works

The Clutch Friction Disk is bolted to the engine's flywheel (via the Pressure Plate Assembly), and the disk hub spline slides over the transmission input shaft spline. When the clutch pedal is released (at rest), the Pressure Plate Assembly's diaphragm spring holds clamping force, pressing the Friction Facing Material face against both the flywheel and the pressure plate.

The friction coefficient between the lining (organic or sintered metal) and the cast iron contact surfaces is 0.3–0.5. At 8–15 kN clamping force, this generates torque capacity of 200–600 N·m, sufficient to transmit full engine torque during acceleration without slipping.

When the driver presses the clutch pedal, mechanical force is transmitted through either a [[clutch-kit-release-fork|release fork]] (cable-actuated, older cars) or a hydraulic slave cylinder (modern cars). This force acts on the Release (Throwout) Bearing, a rotating rolling-element bearing that presses against the three radial fingers of the Diaphragm Spring.

As the bearing pushes inward on the diaphragm fingers, the spring flexes and retracts, reducing clamping force. The Clutch Friction Disk becomes unpowered and free-spins; no torque is transmitted. With the transmission input shaft unpowered, the driver can manipulate the shift lever without gear grinding.

Upon releasing the clutch pedal, the Diaphragm Spring re-extends via its inherent spring stiffness, the Release (Throwout) Bearing retracts away from the lever fingers, and clamping force re-applies. The friction disk accelerates as friction couples engine speed to transmission speed.

The Torsion Damper in the disk hub contains coil springs that absorb the shock of re-engagement, smoothing the transition and reducing drivetrain noise, vibration, and harshness (NVH). Without the damper, engagement would be jerky and harsh.

Friction Lining Materials

Organic friction linings (the traditional choice) are composite materials: plant resin (phenolic), inorganic fibers (graphite, asbestos-free ceramic), and friction modifiers, pressed into a 0.5–1 mm sheet bonded to the steel disk backing. Coefficient is 0.3–0.4 cold, increasing slightly as temperature rises (beneficial: engagement is progressive).

Sintered metal linings (bronze or iron-copper powder sintered at 1000°C) have coefficient 0.4–0.5, higher capacity per unit area, and better high-temperature stability but lower engagement smoothness (more on-off, less progressive).

Modern eco-friendly formulations use no asbestos or lead, replacing them with ceramic fibers and advanced binders. Performance is equivalent to older linings.

Pressure Plate Spring Design

The diaphragm spring is the key innovation enabling modern single-plate clutches. It is a thin conical spring-steel disk with three radial projections (fingers). The spring is pre-curved and under tension, holding clamping force. When the release bearing pushes the fingers, the diaphragm flexes, clamping force drops nearly proportionally to bearing travel (linear disengagement), enabling smooth and modulated engagement over the full pedal stroke.

Older coil-spring pressure plates used multiple coil springs around the circumference, heavier and bulkier but functionally similar. Diaphragm springs are lighter, more compact, and enable smaller pressure plate diameters—critical for modern compact engines.

Engagement Characteristics

A well-adjusted clutch engages smoothly with the "bite point" occurring at 20–50% of pedal travel. Aggressive starts generate high engagement friction heat; mild launches generate less. Skilled manual drivers "feather" the clutch (partially engage it) during hill starts or tight-space maneuvers, controlling engine stall-out torque delivery.

Riding the clutch pedal (keeping the pedal partially pressed during driving, riding the bite point) generates continuous slipping, overheating, and rapid lining wear—poor driving practice.

Slipping (engine speed rising but vehicle not accelerating) indicates worn-down lining: friction coefficient drops below the requirement to transmit full engine torque. Replacement is required.

Chatter (vibration/judder during light acceleration or hill starts) indicates uneven lining wear, warped flywheel, or worn spline tolerance. Replace the clutch kit and resurface the flywheel.

Hydraulic Actuation

Modern vehicles use hydraulic master and slave cylinders instead of mechanical cables. A small master cylinder mounted on the firewall is actuated by the clutch pedal; fluid pressure travels through a small-diameter hose to a slave cylinder mounted on the transmission. The slave rod pulls the release fork.

Hydraulic clutches require periodic fluid changes (to prevent moisture accumulation and corrosion) but provide consistent pedal feel independent of cable stretch and lower maintenance.

Release Bearing Design

The Release (Throwout) Bearing is a deep-groove ball bearing (typically 6205 series: 25 mm bore, 52 mm OD, 15 mm width) mounted on a steel collar with tabs welded to the release fork. The bearing rotates with the fork as it translates axially. A light Bearing Preload Spring (0.5–1 N) keeps the bearing in light contact with the diaphragm lever fingers, reducing noise.

Bearing failure (seized, spalling) causes noise (grinding, squealing) and loss of clutch disengagement. A seized bearing cannot move, preventing pedal motion.

Failure Modes and Wear

Friction lining wear: Organic linings are abraded away through repeated slipping. A new lining is ~1 mm thick; wear limit is typically 0.1–0.2 mm. At 100,000–200,000 km, lining thickness reaches limit. Continued driving risks friction loss (pedal goes to the floor, no torque transmission).

Flywheel wear: The flywheel contact surface (against which the friction disk presses) wears concave over time. Uneven clamping results—chatter during engagement.

Thermal damage: Extreme overheating (from continuous slipping or towing beyond capacity) can cause the diaphragm spring to relax (lose preload), reducing clamping force. Lining can also glaze or delaminate, losing friction.

Spline wear: The hub spline and transmission input shaft spline can wear, creating play. Excessive play allows the disk to cock askew, causing uneven engagement.

Release bearing failure: A seized bearing prevents clutch disengagement.

Vibration damage: Drivetrain resonances can excite the diaphragm spring, causing fatigue cracks.

Maintenance and Replacement

Clutch replacement is a major service: the transmission must be removed to access the pressure plate bolts. Typical clutch kit cost is $400–$1200 labor plus $200–$400 parts. Skilled DIY mechanics can replace the clutch with a transmission jack and engine hoist in 4–6 hours.

At replacement, it is standard practice to resurface or replace the flywheel (reface to remove wear grooves) and replace the pilot bearing (if present) to ensure optimal engagement.

Pushing a clutch beyond capacity (aggressive drag racing, towing beyond payload) accelerates wear but rarely causes catastrophic failure—the worst case is gradual slipping and eventually loss of transmission of full torque.

Modern vehicles with manual transmissions (uncommon in North America, still common in Europe and Asia) are nearly all equipped with clutch kits meeting OEM specifications. Aftermarket "performance" kits (higher torque capacity, stiffer spring) exist for modified engines but sacrifice smoothness for durability.
