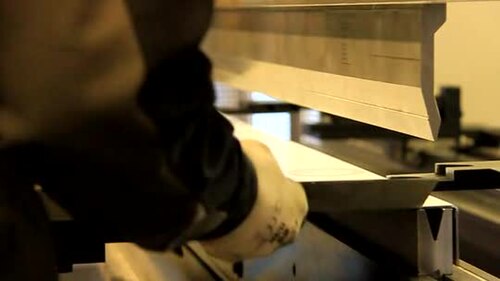

A CNC press brake is a precision metal-bending machine controlled by computer-numerical code, capable of bending sheet metal into complex multi-angle geometries without manual repositioning between bends. The machine hydraulically extends a ram carrying an upper Upper Punch Die that descends into a lower Lower Vise Die cavity, compressing and bending the workpiece into the target angle. A motorized Backgauge System system positions the workpiece along its length, enabling different bend locations in a single setup. Servo-controlled ram descent (monitored by a Position Sensor) compensates for material springback and variation, holding angle tolerance to ±0.5 degrees repeatably. CNC press brakes dominate the fabrication of brackets, enclosures, panels, and assemblies requiring compound bends (angle 1, then rotate 90°, then angle 2) that would require manual repositioning on a manual brake.

Hydraulic power and ram control

The Motor Housing, running at constant speed (typically 40–50 Hz in Europe or 60 Hz in North America), drives the Variable-Displacement Pump, a swashplate piston pump. Unlike a fixed-displacement pump that must dump excess flow to tank (energy waste and heat), the variable pump modulates its displacement via a load-sensing compensator. When the Proportional Valve solenoid is energized by the CNC, the spool shifts, opening the cap-end line of the Hydraulic Cylinder. Pressurized oil flows in, and the Piston pushes the rod outward, extending the ram. The descent speed is controlled by metering the return flow through the proportional spool; the CNC continuously adjusts spool position based on the Position Sensor reading. This closed-loop control allows the ram to decelerate as it approaches the workpiece, preventing shock and protecting tooling.

Bending force is determined by pressure and Piston area. A typical 100-ton brake has a 160 mm bore:

Area = π × (80 mm)² = 20,106 mm²
Force = 210 bar × 20,106 mm² ≈ 422 kN = 100 tons

Springback compensation and adaptive bending

Sheet metal does not stay bent. When the Upper Punch Die lifts away, the elastically deformed metal springs back typically 2–8 degrees depending on alloy, thickness, and temper. A mild-steel 3 mm sheet bent to 90° might spring back to 92°. The CNC is programmed with material-specific springback coefficients. For the example above, the CNC would overstroke the ram to bend the metal to approximately 88°, allowing springback to settle near 90°.

Advanced systems use Position Sensor feedback and iterative correction: the CNC bends to a calculated angle, measures the part, detects springback deviation, and corrects the next bend by a small delta. Over 5–10 sample parts, the system self-tunes and converges to ±0.5 degree accuracy.

Backgauge and workpiece positioning

The Backgauge Carriage is a motorized linear slide on a precision Backgauge Rail, typically with ballscrews and a stepper or servo motor. An Backgauge Encoder provides absolute position feedback. The Rear Stop Block are hardened steel blocks that the operator places the workpiece against. When the CNC program runs, it commands the backgauge to a specific distance (e.g., "stop at 150 mm from the left edge"), and the operator slides the blank against the stop. This indexing ensures all bends occur at the correct distance, critical for bracket legs, panel tab, or ductwork where precision dimensions are essential.

Backgauge speeds are typically 200–500 mm/s, so repositioning between bends takes 2–5 seconds. On a job with 10 bends, repositioning alone consumes 20–50 seconds per part.

Bending tooling and die sets

Standard bending dies come in matched pairs: upper Upper Punch Die and lower Lower Vise Die. Common profile:

  • V-Dies (30°, 45°, 60°): Acute-angle receiving cavities. The 30° die is deepest and creates the tightest radius; the 60° die is shallower and larger-radius bends. A single press brake has a turret or quick-change magazine holding 10–20 die pairs for rapid tool switching.

  • Wiping Dies: Lower die with a wiping edge that prevents excessive material flowback, used for thin materials or tight tolerances.

  • Hemispherical Dies: Rounded receiving cavity producing a very large radius bend without material stretching, preferred for stainless or aluminum where cracking is a risk.

Custom forming dies are ground to complex profiles for one-off or short-run jobs; these can cost £1000–£5000 each.

Side clamps and workpiece restraint

Side Clamp Pad are pneumatic or hydraulic pads that hold the workpiece sides during bending, preventing lateral drift and ensuring the bend axis is perpendicular to the machine centerline. Without clamps, a long workpiece might shift sideways under the punch impact, producing an off-axis bend or wrinkles. Clamp pressure is programmed via solenoid pilot or direct-control, engaging before the ram descends and releasing after retraction.

Material considerations and gauge

Mild steel up to 6 mm is routine. Aluminum (more springback, ~50 % more tonnage required for the same thickness), stainless (higher forming force, more work-hardening, higher scrap rates on complex bends), and titanium (extreme work-hardening, very high forces) are all bendable but require higher tonnage and careful die design to prevent cracking. The "springback coefficient" varies dramatically: mild steel springs back ~5 degrees on a 90° bend in 3 mm thickness, while 3 mm 6061-T6 aluminum springs back ~12 degrees. The CNC is reprogrammed for each material.

Precision and repeatability

Modern CNC brakes achieve ±0.1 mm in length (backgauge) and ±0.5° in angle under ideal conditions. On a job with five sequential bends, if each is off by ±0.3°, the cumulative angle error compounds. Smart control algorithms track and correct, but tolerances of ±1–2° are typical in production without sampling and machine maintenance.

Integration with CAM and nesting

Part programmers use CAM software (Bystronic ByVision, Amada Torell, or vendor-specific) to model the workpiece geometry, calculate bend sequences, and optimize bend order to minimize repositioning and material waste. Nested layouts show how many blanks can be sheared from a sheet, and the software estimates scrap rates. Programs are transferred to the press brake via USB or Ethernet, and the operator loads the job from the Touch Screen HMI.

Safety and guarding

Heavy tonnage and rapid descent create hazards. Two-hand control systems (both hands required simultaneously) or light-curtain barriers are standard. Emergency stop must cut pump power, release Clamp Cylinder, and hold the ram via pilot-operated check valves. Foot guards prevent accidental contact with the backgauge and tooling areas.

Maintenance and thermal management

Hydraulic fluid heats up during continuous bending (drawing 20–30 kW continuously). A shell-and-tube cooler or radiator is necessary for production speeds above 50 parts/hour. Filter changes (25 microns return-line) every 500 hours prevent valve spool stiction. Die-holder taper connections (typically 7:24 or DV) must be cleaned and re-seated periodically to prevent slippage under load.
