CNC Turret Punch Product

Overview

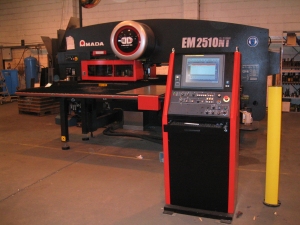

A CNC turret punch is an automated precision punch press for perforating, piercing, embossing, and shaping holes and features in sheet metal without tooling changeover. The machine features a rotating Turret Assembly carrying 40–60 interchangeable punch-and-die pairs, a servo-driven X-Y Positioning Stage positioning the workpiece in two axes, and a Punch Ram Cylinder delivering rapid punching force. A CAD-integrated CNC automatically indexes the next tool, moves the sheet to the punch location, activates clamping, fires the punch, and repeats. A single machine can produce 100+ unique hole patterns and shapes without manual die changeover. Turret punches dominate the fabrication of enclosures, electrical cabinets, HVAC ducts, and appliance chassis—any application requiring dozens of holes or cutouts in flat sheet metal. Speed, precision, and tool flexibility make turret punches far more efficient than manual drilling or hole-saw operations on large sheets.

Turret indexing and tool selection

The Turret Housing is a rotating drum containing 60 machined cavities, each holding a punch-and-die pair. The Turret Drive Motor, a stepper motor with gearhead, rotates the turret incrementally via PLC command. The Turret Position Encoder confirms position. Once the desired tool cavities align with the upper ram and lower table opening, the Turret Positioning Pin spring-loaded locking dogs seat in index cavities, rigidly locking the turret. This prevents tool rotation during the high-impact punching stroke. Typical indexing time is 0.5–1 second, adding minimal cycle time compared to manual tool changing (5–15 minutes on a hydraulic press).

Tool station layout is typically radial: station 1 at 0°, station 2 at 6° (360°/60), and so on. Programming is intuitive: the operator selects from a tool library (round hole Ø8, slot 10 × 20, hexagon Ø12, etc.), and the CNC identifies which turret station contains that tool, rotates if needed, and queues the punch.

Punch-and-die pairs

Turret tooling comes in standard or custom forms:

• Standard Holes: Diameters 3–25 mm in 1 mm increments, hardened to 60–62 HRC.
• Slots: Rectangular cutouts (10 × 5 mm, 20 × 8 mm, etc.) for tab engagement or cable passages.
• Hexagons, Squares, Pentagons: Custom shapes for ventilation or mechanical features.
• Embossing: Punch with small protrusion that deforms metal upward without full penetration, useful for assembly pilot pins.

Each punch has a corresponding lower die cavity with a clearance of 0.05–0.1 mm per side. Punch clearance is critical: too tight and the punch dulls rapidly and creates burrs; too loose and the punch breaks. Clearance is set based on material hardness and thickness (typically 5–10 % of punch diameter per side for mild steel).

X-Y positioning and part nesting

The X-Y Positioning Stage uses ballscrews and stepper or servo motors to position the workpiece beneath the punch. Typical travel is 1500 × 1000 mm to 3000 × 2500 mm, accommodating large enclosure panels. The Work Table is a hardened steel or aluminum platen onto which the sheet is clamped. Positioning repeatability of ±0.1 mm ensures holes are located to tolerance across the entire part.

CAD/CAM software (Bystronic Punch, Amada CAPS, or Strippit) generates the punch program: it analyzes the part geometry, identifies all required holes and features, assigns a turret tool to each, and calculates X-Y coordinates. The software also nests multiple parts on a single sheet to minimize scrap. For example, a 1500 × 1000 mm sheet might fit 6 identical enclosure lids; the CNC punches all holes and shapes in lid 1, moves to lid 2 (via X-Y), and repeats.

Sheet clamping and hold-down

Sheet Clamp System clamps engage before each punch stroke and release after the punch retracts. Typical systems use 4–6 pneumatic or hydraulic clamp cylinders with hardened steel or polymer pads contacting the sheet surface. Clamping is critical: if the sheet shifts during the punch strike, the hole location will be off, and the part scraps. Clamping pressure is typically 200–400 kPa (30–60 psi), sufficient to hold the sheet without deforming thin material.

For very thin materials (< 0.5 mm), vacuum hold-down is preferred to avoid indentation. Vacuum cups apply 0.8 bar over a large area, immobilizing the sheet without point loads.

Punch stroke and force application

The Punch Ram Cylinder is typically pneumatic for small machines (< 30 tons) and hydraulic for larger ones. Pneumatic cylinders are fast (100–200 mm/s descent) and simple; hydraulic cylinders are slower (30–50 mm/s) but more powerful. Punching speed (strokes per minute) depends on tool complexity and clamp engagement time:

• Simple round hole (3 mm): 80–100 strokes/min
• Complex slot or emboss: 30–50 strokes/min (longer dwell for precision)

The Ram Position Sensor detects when the punch impacts the sheet (electrical signal from sudden pressure spike). The PLC triggers clamp release immediately after impact and signals the ram to retract. Total cycle time (punch, retract, clamp release, index new tool, position X-Y, re-clamp) is typically 3–8 seconds for a single feature.

Burr and edge quality

Sheared holes in punched sheet leave a burr on the bottom side. The size depends on material temper and punch clearance. Mild steel produces small burrs (0.1–0.3 mm); aluminum and stainless may produce rougher edges. If a finished part requires smooth edges, secondary deburring is necessary. Some machines integrate a small rotating brush or abrasive pad beneath the punch die to automatically deburr as the punch withdraws, though this adds cost.

Productivity and economics

A well-programmed turret punch can produce 500–1000 holes per hour (depending on hole density and complexity). Manual drilling of the same part might require 2–4 hours and multiple operator touch points. Payback typically occurs within 2–3 years for shops punching more than 5 parts per week. Maintenance is modest: Hydraulic Pump Assembly oil changes every 500 hours, turret bearing lubrication, and periodic punch and die replacement as they wear.

Integration with press lines

Large facilities combine turret punch with a shearing machine (to trim the perimeter) and a bending machine (CNC press brake) in a sequential line. A single operator loads a coil or sheet, and the parts progress: shear → turret punch → deburr → press brake → stack. Automation via conveyor and part hoppers can achieve fully lights-out production.

Programming and offline simulation

Modern CAM software allows the programmer to simulate the punching sequence offline, detecting collisions between the punch turret and part geometry, optimizing tool order, and previewing finished parts. Programs are verified with sample parts before full production run, reducing first-article scrap.
