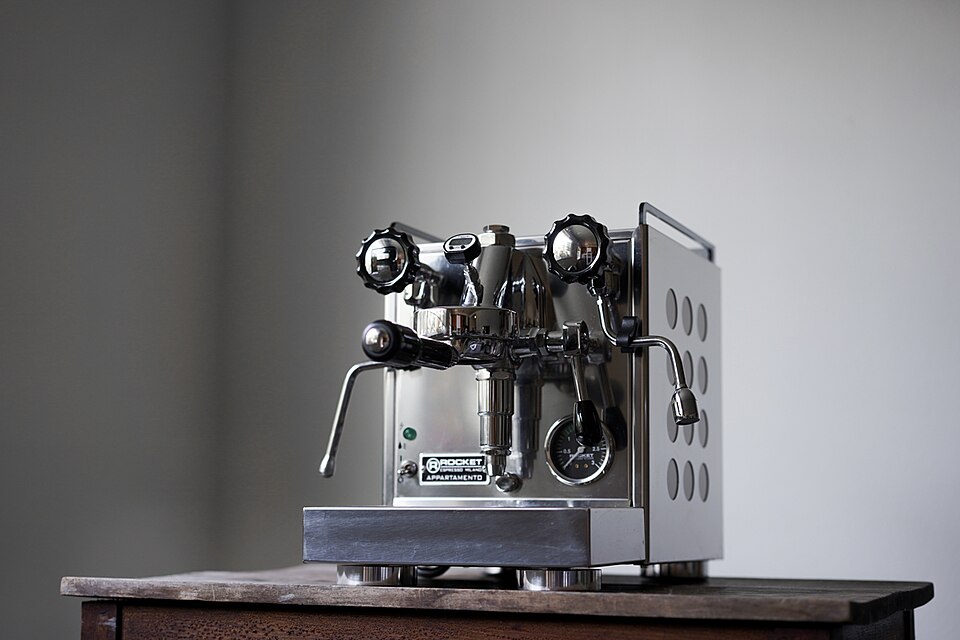

Commercial Espresso Machine Product

Overview

A commercial espresso machine is the centerpiece of professional coffee service, engineered to deliver consistent high-volume espresso shots while simultaneously steaming milk for cappuccinos and lattes. Multi-group machines feature two or three independent Group Head Assembly (brew stations), each with its own Group Solenoid Valve and temperature control, allowing baristas to work multiple drinks in parallel without pressure fluctuations.

The machine employs either a dual-boiler or heat-exchanger architecture. Dual-boiler designs maintain a dedicated Brew Boiler for espresso at 90–94 °C and a separate Steam Boiler for steam generation at 1.5 bar, ensuring that steam production never interferes with brew temperature. Heat-exchanger machines use a single large boiler with an internal tube loop; water flows through the loop, cools to brew temperature, then enters the group head. Both approaches solve the "steam-while-brewing" challenge that plagues single-boiler consumer machines.

A Rotary Pump Head driven by a high-powered AC motor supplies water under precisely regulated pressure, typically 9 bar (130 psi). Unlike cheaper vibratory pumps in home machines, rotary pumps run at constant displacement, allowing PID Control Module electronics to modulate pressure by adjusting solenoid timing rather than motor speed. This enables shot consistency across hundreds of drinks per day and fine-tuning of extraction by flow control.

Commercial espresso machines must handle continuous operation—baristas pull shots every 20–30 seconds during peak service. The Machine Frame and Manifold houses robust manifold plumbing, oversized Boiler and Heat Exchange System vessels, and a Drip Tray Assembly large enough to capture waste water and backflush debris without overflow.

How it works

Water enters the machine through a Water Filtration System stage that removes sediment and chlorine. The filtered water fills the boiler(s) to a predetermined level, where heating elements maintain brewing temperature (92 °C) and steam temperature (120–130 °C) independently.

When a barista loads a portafilter basket into a Group Head Assembly and triggers the brew lever, the group's Group Solenoid Valve energizes. Simultaneously, the Pump Drive Motor runs the Rotary Pump Head, which draws water from the boiler and pressurizes it through the manifold to the group head. Water passes through the Shower Screen, which distributes flow evenly across the coffee bed, then downward through the grounds and out the spout into the cup. The Over-Pressure Valve (OPV) maintains 9 bar by diverting excess flow back to the tank.

Simultaneously, the PID Control Module board monitors Temperature Probe readings from both boilers and triggers heating elements on and off to hold setpoint. The PID algorithm dampens overshoot, preventing thermal shock to the espresso.

To steam milk, the barista opens a manual valve on the Dual Steam Wands, allowing pressurized steam from the separate Steam Boiler to flow through a perforated tip into the pitcher. Dual wands allow simultaneous milk steaming on two pitchers, a necessity in high-volume service.

After the shot, the barista activates a backflush mode: the Group Solenoid Valve pulses rapidly, forcing water backward through the puck to dislodge grounds and oils, keeping the group clean. Waste water drains into the Drip Tray Assembly and is manually emptied or, on some models, auto-drained via a solenoid controlled by the PID module.

Key engineering requirements

Thermal stability: Commercial machines must hold brew temperature within ±1 °C across 50+ shots in a row. This demands large heat mass (copper or stainless steel boilers), good insulation, and aggressive PID tuning. A 3 L brew boiler takes 10–15 minutes to reach stability at startup.

Pressure reliability: Espresso requires exactly 9 bar to extract properly. A rotary pump delivers constant displacement; the Over-Pressure Valve (OPV) (OPV) shunts excess pressure to drain. Inconsistent pressure causes under- or over-extraction, producing sour or bitter shots.

Seal integrity: Multiple boilers, group head circuitry, and high-pressure fittings demand durable O-Ring Set seals and regular maintenance. Brass or stainless manifolds resist corrosion from minerals in water.

Steam power: 1.5 bar steam can texture 4–6 oz of milk in 5–8 seconds. Dual boilers ensure steam pressure never drops during heavy use; heat-exchanger machines may dip slightly under extreme load.

Serviceability: Commercial machines are modular. Group heads, solenoids, heating elements, and boilers are field-replaceable without factory rebuild. Screw-in group heads standardize across brands.

Standards and regulation

Commercial espresso machines in North America comply with NSF (National Sanitation Foundation) standards for food-contact surfaces and drainage. EU machines meet CE marking requirements. Electrical systems follow IEC standards for voltage, grounding, and thermal protection.
