Composite Autoclave Product

Overview

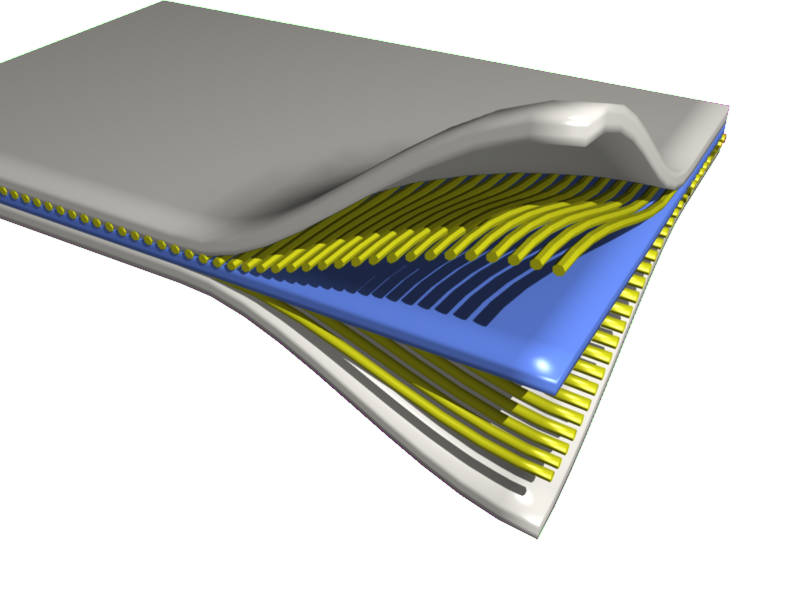

An industrial composite autoclave is a large, heavily insulated pressure vessel that cures prepreg composite laminates by simultaneously applying heat (120–200°C), pressure (700 kPa), and vacuum (to remove trapped air and moisture). This combined process—unique to aerospace and high-performance composites—consolidates layups into void-free, fully cross-linked structures with superior mechanical properties compared to room-temperature or oven-only curing.

The typical cure cycle has four phases: (1) vacuum dwell (remove air, 30–60 min at 50–100 mbar), (2) ramp (slow heating at 1–5°C/min to target temperature), (3) soak (isothermal hold at full temperature and pressure, 1–8 hours), and (4) cool (slow descent at 0.5–3°C/min to prevent cracking). A single cure cycle consumes 4–12 hours; large autoclaves process multiple parts simultaneously (layered on shelves), achieving throughputs of 10–50 metric tons per month.

Autoclaves are capital-intensive ($500k–2M for 10 m chamber) but essential for aerospace (Airbus, Boeing, Bombardier, Lockheed) and high-end automotive (carbon monocoques, Formula 1), where composite strength and reliability must be certified.

Pressure Vessel Design

The Pressure Vessel & Chamber is an ASME Section VIII Div. 1 rated cylindrical steel chamber, typically 1–10 m long and 0.5–4 m diameter, welded from ASTM A516 Grade 70 carbon steel with hemispherical or torispherical End Plates. Wall thickness is calculated from Barlow's formula:

t = (P × D) / (2 × S − P)

where P = working pressure (700 kPa = 100 psi for 10 bar), D = diameter, S = allowable stress (~110 MPa for carbon steel).

Example: 2 m diameter autoclave at 700 kPa working pressure requires ~15 mm wall thickness (plus margin for corrosion).

The Door Frame supports a large hinged or sliding door sealed by a multi-point Door Lock (pneumatic or manual toggle clamps, 8–16 per perimeter). The Door Gasket is a molded silicone or EPDM gasket (50 mm profile, dual-seal) maintaining a 700 kPa pressure differential across the perimeter. A composite-autoclave-cure-door-gasket replacement costs $5–10k and is a major maintenance item.

Heating System

The Heating System warms the chamber to 120–200°C (depending on resin system: epoxy 150–180°C, polyester 120–140°C) at a controlled ramp rate (1–5°C/min). Two approaches:

1. Electrical: Heater Cartridges (6–12 kW immersion cartridges or strip heaters) directly heating chamber air.
2. Steam-based: Heat Exchanger receiving steam from a site boiler, thermally indirect but more efficient for large autoclaves.

The Heater Controller PID regulates heater power, with multiple Temperature RTDs (PT100 RTD, stratified at top/middle/bottom chamber) providing feedback. The controller maintains temperature uniformity within ±5°C across the chamber—critical because localized hot spots accelerate resin polymerization (voiding) while cold spots leave resin under-cured (low strength).

Thermal stratification physics: Hot air rises; the internal Circulation & Mixing recirculates air downward, breaking convection cells and forcing uniform temperature. Without circulation, the top of the chamber may be 20°C hotter than the bottom—causing dramatic property variation across a large layup.

Vacuum Degassing Phase

Before heat and pressure are applied, a Vacuum Degassing System draws 50–100 mbar (5–10 kPa absolute) for 30–60 minutes. This phase:

1. Removes air: Trapped air bubbles (generated during layup) are evacuated, preventing void growth under pressure.
2. Removes moisture: Prepreg and mold surfaces harbor moisture; vacuum drives it out as water vapor (preventing void coalescence during cure).
3. Promotes resin flow: Lower pressure reduces viscous drag, allowing resin to flow and consolidate fiber waviness.

The Vacuum Pump (rotary screw, 10–30 m³/h, 50 mbar minimum) pulls vacuum via a Vacuum Regulator proportional solenoid valve. A Vacuum Trap removes oil mist and condensate. Once vacuum dwell completes, the Vacuum Regulator closes, isolating the chamber.

Pressurization & Ramp

After vacuum dwell, the Pressurization & Steam System system injects steam or nitrogen, raising pressure to 700 kPa and simultaneously heating at 1–5°C/min. The slow ramp is critical:

• Fast ramp (>5°C/min): Resin exothermic polymerization accelerates, local temperature spikes cause matrix microcracks and void growth.
• Slow ramp (1–3°C/min): Uniform, controlled curing; resin polymerization lags behind externally applied heat, minimizing exothermic feedback.

The Pressure Regulator proportional valve throttles steam/nitrogen inflow, maintaining constant pressure. The Autoclave PLC coordinates heater power and pressure valve to follow a programmed profile:

Typical 200°C epoxy schedule:

1. Vacuum phase: 50 mbar for 45 min.
2. Ramp 1: Heat at 2°C/min from 20°C to 80°C, hold pressure at 500 kPa.
3. Soak 1: 80°C for 60 min, pressure 500 kPa (volatile release).
4. Ramp 2: Heat at 3°C/min from 80°C to 180°C, pressure 700 kPa.
5. Soak 2: 180°C for 120 min (cross-link completion), pressure 700 kPa.
6. Cool: Slow descent at 1°C/min from 180°C to 100°C, then faster at 3°C/min to room temperature.

Total cycle: ~9 hours.

Circulation & Temperature Uniformity

The Circulation & Mixing is critical for eliminating thermal gradients. An internal Fan Motor (1–3 kW EC brushless) drives a Fan Impeller centrifugal impeller. Fan Ductwork internal to the chamber redirects hot air downward, breaking buoyancy-driven convection.

Benefit: Temperature uniformity improved from ±20°C (natural convection) to ±3–5°C (forced circulation). This translates directly to mechanical property scatter reduction: fiber-reinforced epoxy strength varies ~2–3% per °C of cure temperature, so ±5°C uniformity achieves ~10–15% property scatter (acceptable), vs. ±20°C achieving ~40% scatter (unacceptable for aerospace).

Safety & Overpressure Protection

Autoclaves operate at 700 kPa (10 bar), a serious hazard. Multiple safeguards:

1. Pressure Relief Valve: Spring-loaded relief valve set at 900–1000 kPa, venting excess pressure to atmosphere.
2. Rupture Disk: Failsafe rupture disk rated for 900–1000 kPa; if Pressure Relief Valve fails, the disk ruptures and safely vents the chamber.
3. Door Interlock Switch: Safety switch prevents door opening above 50 kPa chamber pressure; if someone tries to open the door mid-cure, the PLC cuts power to the door unlock solenoid.
4. Pressure monitoring: Pressure Gauges (redundant Bourdon tube + electronic transducers) display chamber and supply pressures; PLC alarms if setpoint is exceeded.

The vessel and all fittings must have ASME certification stamps and undergo annual hydrostatic tests (1.5× working pressure, 5 minutes dwell) per ASME Section VIII Div. 1.

Control & Data Logging

The Control & Automation PLC runs stored cure recipes (loaded via HMI Touchscreen touchscreen):

Recipe parameters:

• Vacuum phase: initial delay, ramp rate, target pressure, dwell time.
• Heat ramp 1: target temperature, ramp rate, pressure setpoint.
• Soak 1: temperature, pressure, duration.
• (Repeat for additional ramps/soaks as needed).
• Cool ramp: descent rate, final temperature.

During execution, the PLC logs all temperatures, pressures, and vacuum readings to a Data Logger (SD card or cloud service). This data is critical for:

1. Traceability: Aerospace standards (AS9100, NADCAP) require cure history documentation per batch.
2. Troubleshooting: If a part fails post-cure inspection, the cure log reveals if thermal profile was deviated (explaining failure mechanism).
3. Predictive maintenance: Repeated pressure overspikes might indicate relief valve fouling; trending alerts maintenance.

A typical autoclave archives 500–1000 cure cycles on local storage.

Energy Efficiency & Operating Costs

A 10 m × 2 m autoclave heating 10 m³ air from 20°C to 180°C at 2°C/min consumes:

Energy = m × c_p × ΔT = (ρ × V) × c_p × ΔT

• Air density ≈ 1.2 kg/m³, c_p ≈ 1.0 kJ/kg·K, ΔT = 160°C.
• Energy per cycle ≈ (1.2 × 10) × 1.0 × 160 ≈ 1920 kJ = 0.53 kWh (air only).
• Plus insulation losses (poor insulation adds 5–10×).
• Plus part thermal mass: a 500 kg carbon/epoxy layup adds another 1–2 kWh per cycle.
• Total per cycle: 3–5 kWh, operating cost ~$1–2/cycle (at $0.12/kWh electrical).

Large aerospace suppliers operate 10–20 autoclaves continuously, consuming 500–1000 kW average facility power, a major operational cost.

Composite Quality Outcomes

With autoclave curing:

• Void content: <2% (vs. 3–8% for room-temperature or oven cure without vacuum).
• Fiber waviness: Minimized by vacuum consolidation and pressure-driven resin flow.
• Strength: 95–100% of theoretical (matrix fully cross-linked, fibers well-wetted).
• Reproducibility: Batch-to-batch strength scatter <5% (vs. 10–20% for non-autoclave processing).

Example: Carbon/epoxy composite tensile strength 1500 MPa achievable in-autoclave vs. 1200 MPa without (20% reduction). For aerospace structures (where weight is premium), this extra strength reduces part thickness, saving significant weight and cost.

Typical Installation & Maintenance

Capital: $500k–2M depending on size (small lab: $200k, production 10 m: $1M+). Footprint: 15 m × 6 m (including utility connections, vacuum pump, steam supply). Utilities: 3-phase 480 VAC 200 A, steam line 2–5 bar, nitrogen supply 200 bar, water cooling for condenser. Maintenance:

• Annual door gasket replacement: $5–10k.
• 5-year hydrostatic test certification: $10–15k.
• Pressure valve and relief calibration: $2–5k annually.
• Heating element replacement (every 5–10 years): $20–50k.

Large programs (Boeing 787, Airbus A350) operate dedicated autoclave fleets, with one operator per 2–3 machines and a maintenance technician on staff.
