Container Ship

Overview

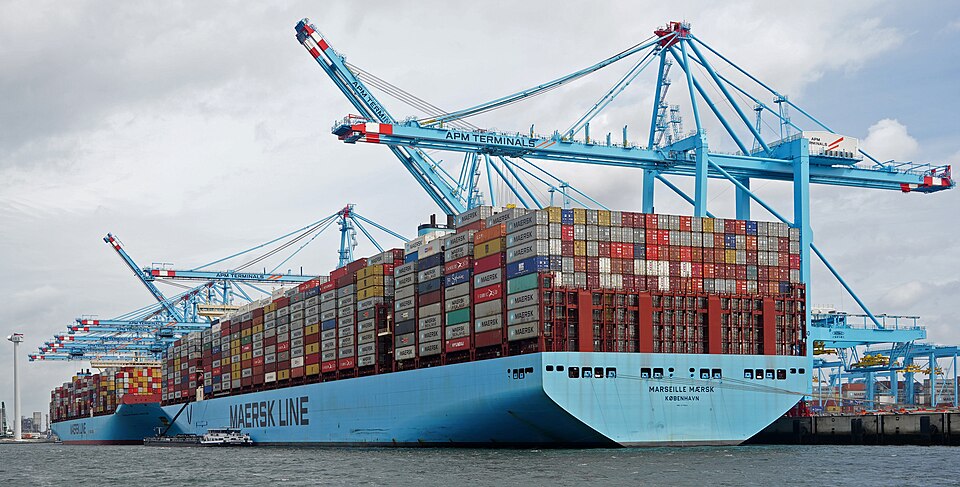

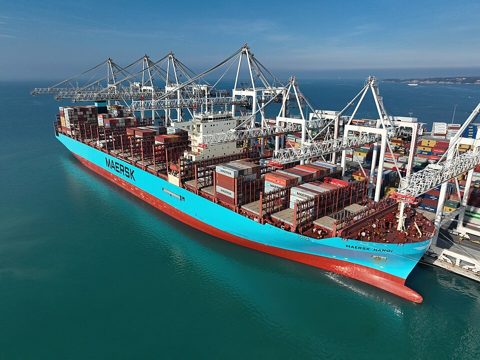

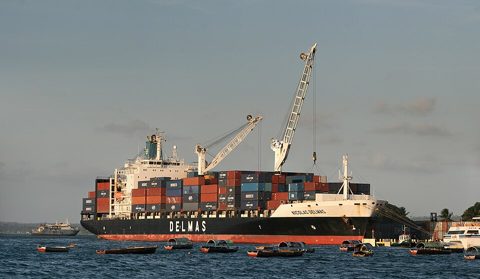

An ultra-large container ship is the biggest cargo machine afloat: about 400 m long, 61.5 m across, carrying some 24,000 twenty-foot-equivalent units stacked up to twelve high below deck and twelve more above. Builders and classification societies put the part count of such a ship at roughly 1.5 million, and a single subsystem dominates the story, the Two-Stroke Main Engine, a two-stroke crosshead diesel that MAN Energy Solutions quotes at about 50,000 parts by itself. The rest of the count comes from repetition: ~90 Hull Blocks each carrying thousands of outfitting fixings, eleven cell-guided Cargo Holds, sixty Hatch Cover Panel panels and the enormous small-part populations of the Lashing Bridges and Piping Systems.

Unlike a cruise ship, almost none of this is hotel. The ship is a structural box optimised to carry deadweight: a double hull wrapped around open cells, a single huge engine, and a small Deckhouse for a crew of 25–30.

Hull structure

The open-top midship section is the hardest structural problem in merchant shipbuilding: the cargo holds have no continuous deck, so the entire hull-girder bending and torsion load concentrates in the double bottom, the double sides and the hatch coamings. The coamings of a 24,000 TEU ship use crack-arrest Hull Steel Plate up to 80 mm thick. The hull goes together from about 90 prefabricated grand blocks, stiffened panels of plate and Hull Stiffener framed by Web Frames, pre-outfitted with Pipe Spools before erection. Each block goes together with thousands of Hull Weld joints between plates and profiles, plus Structural Brackets, Pipe Hangers and pre-fitted Pipe Spools; the welded steelwork is the largest part population on the ship.

Main engine

Propulsion is a single 11-cylinder two-stroke diesel of the MAN B&W G95 class: 950 mm bore, 3,460 mm stroke, up to about 75 MW at 80 rpm, coupled directly to the Propeller Shaft with no gearbox. The engine stands over 17 m tall and weighs more than 2,000 tonnes. Each Cylinder Assembly produces close to 7,000 kW: an oil-cooled Piston on a Piston Rod passes through a Piston-Rod Stuffing Box to the Crosshead, which keeps side thrust off the 950 mm Cylinder Liner, the feature that lets these engines run 30+ years. The Cylinder Cover holds a Nimonic-spindle Exhaust Valve and three Fuel Injection Valves firing at ~180 bar cylinder pressure. Three axial Turbochargers supply scavenge air, and a semi-built Crankshaft of shrunk-together forged throws turns in main bearings set into the Bedplate. Around these large components sit the Main Bearings, the Scavenge Air System, the Fuel Injection System, the Lubrication System and the Hydraulic Power Supply that supplies servo oil for valve and fuel actuation, the subsystems that carry the engine toward its quoted ~50,000 parts.

Cargo system

Below deck, containers are not lashed at all: each Cargo Hold is lined with vertical Cell Guide rails, 150–180 mm angle bars held by Cell Guide Brackets at every tier, that locate the corner castings of each container as the crane lowers it. Guide alignment must hold to roughly ±25 mm over a 30 m hold depth, set by Cell Entry Funnels at each cell top and locked in by thousands of Cell Guide Weld joints to the structure.

The holds are closed by lift-away pontoon Hatch Cover Panel panels of 30–45 tonnes, lifted off by the shore cranes during cargo operations. Deck stacks sit directly on the panels' Container Deck Fittings, so each cover is a structural foundation as well as a weathertight lid sealed by Hatch Gasket packing against the coaming bar.

Above deck, stacks are secured from Lashing Bridges, multi-tier steel platforms between bays from which crews and lashing gangs apply Lashing Rods and Turnbuckles to the lower tiers, while semi-automatic Twistlocks connect every container to the one below it. A ship this size carries tens of thousands of twistlocks and thousands of rod-and-turnbuckle sets; with the welded Lashing Eyes, gratings and stowage racks the lashing system alone contributes about 160,000 parts.

Machinery and systems

Electrical power comes from four medium-speed Auxiliary Gensets of 3–5 MW each, a major load is the reefer plugs, often more than a thousand refrigerated containers running at once. The Piping Systems ties the ship together with on the order of 11,000 prefabricated spools, 22,000 Pipe Flange pairs and 6,500 Pipe Valves serving ballast, fuel, cooling, bilge and fire mains. Aft, a 10 m, 100+ tonne monobloc Propeller is steered by a full-spade Rudder driven by hydraulic Steering Gear meeting the SOLAS 35°-to-35° rule.

Deckhouse

On modern designs the Deckhouse sits about two-thirds forward, separated from the funnel: the forward position gives the bridge line-of-sight over higher deck stacks, which buys several hundred TEU of capacity. It houses ~30 Crew Cabins on floating floors and a Bridge Console integrating radar, ECDIS and conning displays. A ship of this class is built in 12–18 months of dock time and trades for 25–30 years, typically moving more cargo per voyage than any other vehicle ever constructed.
