Container Tilter Product

Overview

A container tilter (container tippler) unloads bulk cargo from a standard ISO shipping container by tilting the entire container until the cargo pours out of its open doors. Grain, fertiliser, plastic pellets, wood chips, ores and scrap increasingly travel in ordinary dry-freight containers rather than dedicated bulk vessels; the tilter is the receiving terminal's machine for emptying them. A 20 ft container holding 25–28 t of grain discharges in three to five minutes with no one inside the box and no shovelling — replacing either a purpose-built tipping chassis or hours of manual and machine clean-out.

The machine is a hinged steel platform: the Base Frame sits on a foundation, the Tilt Frame (Platform) carries the container, the paired Tilt Cylinder Set rotate it, and the Twistlock Set make container and platform one rigid body before anything moves. Hydraulic power comes from the Hydraulic Power Pack under supervision of the Control and Safety System.

Operating cycle

A reach stacker or heavy forklift sets the loaded container onto the platform, centred by the flared Entry Guide Rail pair, with its bottom corner castings landing in the four Corner Casting Seat positions. The operator opens the container doors and secures them against the sides with the Door Hold-Back Clamp hold-backs — an essential step, since 25 t of grain will otherwise slam the doors with destructive force. Each Twistlock Unit is then rotated 90 degrees inside its ISO 1161 corner aperture, trapping the casting; a Lock Position Sensor on every lock feeds the safety PLC, which refuses any tilt command until all four confirm locked. This interlock is the machine's core safety feature: an unlocked container would slide off the platform at around 30 degrees.

On the raise command the Hydraulic Pump delivers up to 120 L/min at 25 MPa to the two telescopic Telescopic Tilt Cylinder units. Three stages extend in sequence, largest bore first, rotating the platform about the Pivot Pin hinges at the door end. The geometry is demanding: at low angles the cylinders work at a poor moment arm against the full gross weight, which is why a 36 t machine needs 200 mm bores. As the angle passes the cargo's angle of repose — about 25–30 degrees for grain, more for damp materials — flow begins through the doors into the Discharge Chute, over the Discharge Grate that catches oversize lumps, and into a pit, hopper or waiting truck. Most free-flowing cargoes empty completely by 60–70 degrees; sticky materials may need the full 90 with a pause-and-shake sequence. The Tilt Angle Sensor cuts travel at the configured limit.

Lowering is gravity-powered and metered. Each cylinder carries a Counterbalance Valve bolted directly to its port: the valve only releases oil in proportion to pilot pressure, so the platform descends at a controlled rate, and if a hose bursts the valve closes and the platform stops where it is. The pendant is hold-to-run throughout — releasing the button centres the Valve Manifold spools and motion stops within a fraction of a degree.

Structure

The tipping moment peaks early in the lift at roughly the gross weight times half the container length — on the order of 1,000 kN·m for a loaded 20 ft box — and reverses into the foundation through the Foundation Anchor Set. The Headboard at the door end deserves note: once the container passes about 45 degrees, the cargo no longer rests on the container floor but bears on the door-end wall, and the platform structure behind it must carry that distributed load. The Platform Weldment uses twin box-section spines with the Cylinder Rod Lug connections placed to keep rod side-loading within spherical-bearing limits as the geometry sweeps through 90 degrees.

Variants

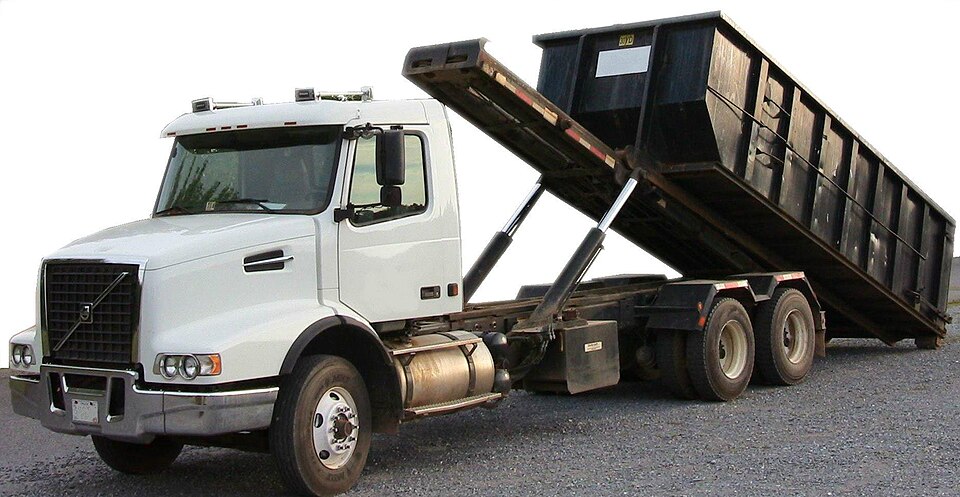

Front-tilt machines (described here) discharge through the doors at the hinge end. Side tilters rotate the box about its long axis for containers with open tops or liner bags discharging through a side spout. Mobile tilters build the same mechanism onto a semi-trailer with outriggers, so the discharge point can move between silos; tipping-chassis trailers tilt the container with the truck's own ram but reach only 45–50 degrees. Liner-bag handling adds a bag-clamp bar and slower initial tilt to avoid bursting the liner. Enclosed versions wrap the door end in the Dust Skirt and connect to dust extraction for soda ash, alumina and other powders, meeting workplace exposure limits that an open pour cannot. Machines for 40 ft boxes double platform length and typically reduce tilt to 60 degrees, since the longer lever arm both raises cylinder loads and improves discharge geometry.
