Overview

Continuous passive motion (CPM) devices apply smooth, repetitive flexion-extension cycles to a joint without voluntary patient muscle contraction. The Motor Drive System servo motor drives the Patient Limb Cradle Arm through a programmable range of motion (ROM) at adjustable speed; the ROM and Motion Controller allows customization of starting angle, ending angle, motion speed, and total session duration. CPM is most commonly applied post-arthroscopy (meniscectomy, ACL reconstruction) or total knee arthroplasty to reduce stiffness, maintain synovial nutrition, and prevent post-operative edema and arthrofibrosis. Early mobilization within hours of surgery promotes patient-reported pain reduction and faster functional recovery vs. immobilization.

Mechanism of benefit: joint healing and nutrition

Immobilized joints develop arthrofibrosis (excessive scar tissue within the joint capsule), reducing ROM and causing permanent stiffness. CPM theoretically prevents this through: (1) synovial fluid circulation (mechanical pumping of joint fluid maintaining cartilage nutrition and removing inflammatory mediators), (2) prevention of adhesion formation (continuous motion preventing collagen cross-linking and capsular stiffness), and (3) early mechanical loading stimulating mechanoreceptor signaling and proprioceptive recovery. Post-operative edema (swelling due to surgical trauma) is reduced by CPM-induced muscle-pump activation and lymphatic circulation. Pain is often reduced during CPM due to both mechanical unloading of post-operative tissues and potential endorphin release from pleasant, repetitive motion.

Post-operative protocol: total knee arthroplasty (TKA)

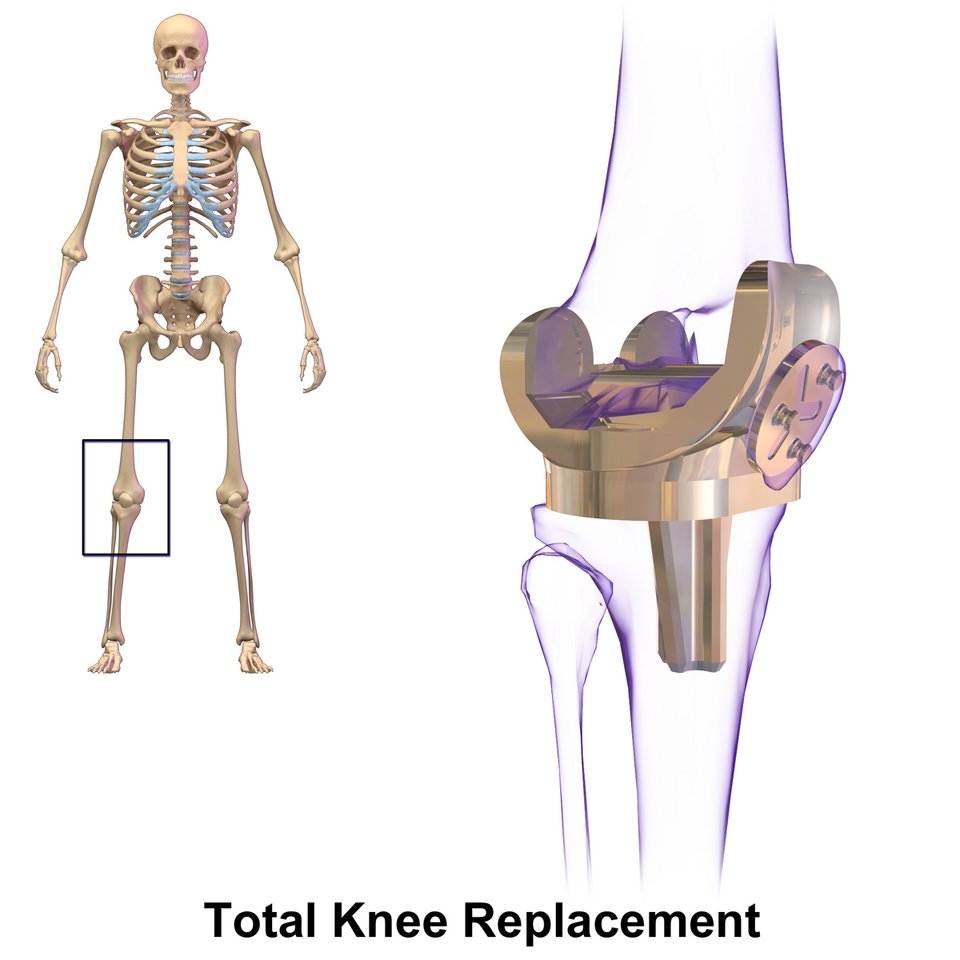

A patient undergoes total knee replacement (TKA) for advanced osteoarthritis. In the recovery room (within 2–4 hours of surgery), the ROM and Motion Controller is programmed: starting position 20° knee flexion, ending position 45° flexion, speed 25°/min, duration 2 hours. The Patient Limb Cradle Arm supports the surgical leg and moves smoothly through the prescribed arc; the Patient Comfort Padding Assembly foam and gel interface minimize contact pressure and discomfort. The patient tolls the CPM device passively (no active muscle contraction required) while receiving opioid analgesia and anti-inflammatory medications. On post-op day 1, ROM is advanced: starting 30°, ending 60°, 4 hours. By post-op day 5, most patients achieve 0–90° ROM (approaching normal). Patients using CPM 4+ hours daily for 5–7 days achieve final ROM of 110–120° (near normal) 3 months post-op, compared to 100–110° in patients using CPM <2 hours daily.

Arthroscopic meniscectomy recovery

A patient undergoes arthroscopic meniscectomy (knee scope for torn meniscus). Post-operative swelling and stiffness are significant concerns; CPM is initiated within 6 hours. CPM parameters: 10° starting angle, 70° ending angle, 30°/min speed, 2-hour sessions, 4 times daily for first 3 days. The gentle, repetitive motion reduces quadriceps inhibition (post-operative pain-induced muscle guarding) and allows earlier transition to weight-bearing and active range-of-motion exercises. By post-op day 3, patients typically achieve 0–90° active ROM and begin walking. Without CPM, the same patient might remain at 0–60° active ROM with pronounced swelling.

Shoulder CPM post-rotator cuff repair

Following rotator cuff repair (tendon reattachment to bone), early motion is required to prevent muscle atrophy and stiffness, but excessive motion risks re-injury. CPM is used with conservative parameters: 20° abduction starting, 60° abduction ending, 15°/min speed, 1-hour sessions, 2–3 times daily weeks 0–4 post-op. The Patient Comfort Padding Assembly Velcro straps secure the arm in the cradle, allowing pain-free passive motion within the surgical repair tolerance. By week 6, active-assisted motion is introduced; CPM is discontinued as active range-of-motion exercises become tolerable.

Safety and contraindications

The Safety Limit and Pressure Switches mechanical stops and Pressure Relief Valve pressure relief prevent excessive force or motion beyond prescribed ROM; the Alert Buzzer alerts if limits are exceeded. The ROM and Motion Controller automatic shutoff timer terminates motion if the patient becomes uncomfortable or if a safety threshold is exceeded. CPM should not be used over: (1) recent surgical incisions with open drainage (risk of infection), (2) severe post-operative swelling requiring immediate ice/compression, or (3) vascular compromise (DVT risk; CPM may theoretically increase thrombosis risk in immobile patients, though evidence is mixed). Relative precautions include infection, acute pain out of proportion to expected recovery, and patients unable to communicate discomfort.

ROM progression and clinical decision-making

Typical CPM ROM progression for TKA: post-op hours 0–4 (20–45°), day 1 (30–60°), day 2 (40–70°), day 3–5 (50–90°), week 2+ (70–110°). However, ROM advancement is individualized: if a patient develops excessive swelling, pain, or muscle guarding, ROM is maintained at the previous level for an additional 24 hours before advancing. Some centers use CPM for only 3–5 days, while others extend to 2 weeks post-op. High-evidence protocols suggest that CPM initiated within 12 hours and continued ≥4 hours daily for ≥5 days post-op offers modest ROM benefits (5–10° improvement at 3 months) vs. CPM not used; the clinical significance of this improvement is debated.

Comparison with early active range-of-motion

While CPM provides passive motion without muscle effort, early active-assisted and active range-of-motion exercises may offer equivalent or superior outcomes. A recent meta-analysis found that CPM combined with aggressive physical therapy yields better ROM than CPM alone, and that aggressive physical therapy without CPM yields equivalent ROM to CPM + physical therapy. This suggests that the key driver is early mobilization and load-bearing, not specifically passive motion. However, CPM remains standard in many post-operative protocols because: (1) it reduces pain during early recovery, enabling patient compliance with rehabilitation, (2) it provides controlled, predictable motion reducing anxiety, and (3) it allows non-weight-bearing motion during the initial post-operative phase.

Typical home versus hospital CPM use

Hospital-based CPM for TKA is usually 4–8 hours daily for 3–7 days post-op, then discontinued. Home CPM (patient-rented devices) extends treatment to 4–6 weeks post-op, with sessions gradually reduced (e.g., 4 hours day 1, 3 hours day 8, 2 hours day 15, 1 hour day 22, discontinued by week 6). While some patients report subjective ROM improvement with extended home CPM, controlled trials do not consistently demonstrate ROM or functional differences vs. discontinuation at hospital discharge. Home CPM is most beneficial for patients with slow ROM recovery (stuck at <90° ROM by post-op day 5) as a bridge to more aggressive manual stretching and physical therapy.

Typical post-op timeline

A patient undergoes TKA Monday morning. Monday evening (4 hours post-op): CPM initiated at 20–45° ROM, 25°/min, 2-hour session. Tuesday morning: ROM advanced to 30–60°, 4-hour session. Wednesday: ROM 40–70°, 4 hours twice daily. Thursday–Friday: ROM 50–85°, 4 hours twice daily. Saturday (post-op day 5): ROM 70–110°, 2 hours twice daily. By Sunday (discharge), patient achieves 0–110° active ROM, walks 100 feet with walker, climbs stairs step-over-step. Three-month follow-up shows stable 0–118° ROM and return to activities of daily living including driving and stair climbing.
