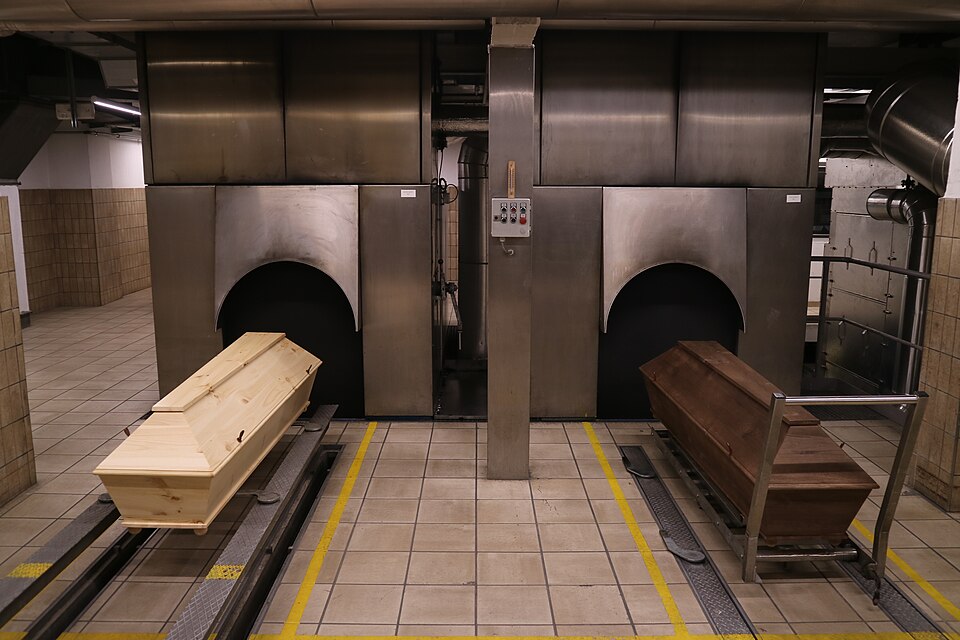

Cremation Furnace Product

Overview

A cremation furnace is a specialized thermal processing unit designed to reduce human remains to skeletal ash and bone fragments through controlled high-temperature combustion. Modern crematory retorts are engineered for consistent performance over thousands of cycles, with dual-chamber design separating primary combustion (where remains are reduced) from secondary combustion (where exhaust gases are fully oxidized to eliminate odor and organic vapors).

Cremation furnaces are the primary equipment in funeral homes, crematories, and medical examiner facilities. They operate continuously during business hours in high-throughput facilities or multiple times daily in smaller settings. The process is governed by strict environmental and operational standards due to mercury emissions from dental amalgam and the importance of complete oxidation of volatile compounds.

The furnace comprises several integrated systems: the Primary Chamber where remains are loaded and combusted, the Secondary Chamber (Afterburner) for afterburning, the Burner System for controlled heating, the Air & Draft System system for draft and exhaust routing, the Control & Instrumentation for cycle automation, and the Outer Structure & Insulation which thermally isolates the unit. The Hearth & Grates and Ash Collection Drawer handle remains placement and ash recovery.

How It Works

The cremation cycle begins with the Control & Instrumentation heating the Primary Chamber using the Burner System to a soak temperature of 1000–1100°C. Once the chamber is fully heated (verified by Thermocouple Assembly thermocouples), the operator loads remains onto the Hearth & Grates. The door is then closed and locked by the Loading Door Assembly interlocks.

The primary combustion phase then begins. The Burner System continues firing to maintain chamber temperature as the remains oxidize. Combustion gas flows from the primary chamber into the Secondary Chamber (Afterburner), where a secondary Burner Head at high velocity ensures all volatile organic compounds and incomplete combustion products are oxidized at ≥900°C. This prevents visible smoke and odor escape.

The Air & Draft System system draws combustion air through the furnace via the blower (Blower Motor) and routes the hot exhaust through the Stack Damper Motor (which regulates back-pressure) and up the Exhaust Stack toward the facility's pollution control equipment (typically a bag filter or fabric filter system). The Draft Pressure Sensor continuously monitors furnace draft; low draft triggers a control panel alarm.

Temperature monitoring is critical. Multiple Thermocouple Assembly thermocouples feed data to the Control & Instrumentation PLC, which continuously adjusts burner firing using the Fuel Modulating Valve modulators to hold the primary chamber within 50°C of the set-point. The Flame Sensor detects flame in each burner; loss of flame triggers a shutdown after a brief re-ignition attempt.

Cremation typically takes 60–90 minutes depending on remains mass and furnace condition. Once remains are fully reduced to ash (typically identified by a slight change in chamber coloration or operator experience), the cycle ends. The Burner System shuts off, and the chamber is allowed to cool slightly (still 300–400°C). The operator then opens the Loading Door Assembly (which must cool below 150°C before manual opening is permitted), sweeps ash from the Hearth & Grates, and collects it into the Ash Collection Drawer. Any ferrous metals (surgical implants, grave goods) drop through and are removed by an electromagnet in the pan.

Refractory & Thermal Design

The Primary Chamber and Secondary Chamber (Afterburner) are lined with high-alumina refractory brick rated for continuous 1500°C service. Refractory Brick Unit materials include dense firebrick, castable refractory poured in place, and ceramic fiber components. The Roof Arch Assembly is typically a suspended arch backed with ceramic fiber blanket to minimize heat loss through the crown.

The outer Outer Structure & Insulation consists of a welded mild steel shell with 100–150 mm Ceramic Fiber Blanket (spun ceramic fiber at 128–192 kg/m³) surrounding the refractory. This blanket is critical: it keeps the external surface below 100°C, protects facility walls, and reduces energy consumption. The exterior is finished with stainless steel or powder-coated Exterior Cladding Panels.

Refractory lifespan is typically 5–7 years or 1500+ cycles before major relining is required, depending on maintenance, fuel composition, and remains chemistry. Regular inspection (monthly) and annual refractory repairs (patching spalls, sealing cracks) extend service life. Once refractories degrade, thermal efficiency drops, fuel consumption rises, and the furnace risks catastrophic failure.

Safety & Environmental Controls

The Control & Instrumentation enforces strict interlock logic:

• The Door Interlock Switch on the Loading Door Assembly cuts fuel supply immediately if the door opens mid-cycle.
• The Flame Sensor in each burner circuit confirms flame; no flame for >5 seconds triggers a shutdown.
• Low draft (<50 Pa) detected by Draft Pressure Sensor sounds an alarm and halts cycle.
• Over-temperature (chamber exceeding 1200°C) triggers solenoid valve closure and alarm.

Environmental compliance requires:

• Complete oxidation in the Secondary Chamber (Afterburner) (≥900°C) to eliminate volatile compounds.
• Particulate control via downstream filtration (bag filter, ceramic filter, or scrubber).
• Mercury capture (cremation releases mercury from dental amalgam); activated carbon injection and cold-side filters are standard.
• NOx minimization via air/fuel ratio control in the Burner System.

Modern retorts are equipped with continuous emissions monitoring (CEM) probes in the Exhaust Stack to log oxygen, carbon dioxide, and (in some jurisdictions) mercury levels throughout each cycle.

Variations & Upgrades

Advanced retorts may include:

• Automated loading: Carousel or belt systems feeding multiple bodies in sequence.
• Energy recovery: Heat exchangers pre-warming incoming combustion air (rare due to cost).
• Dual-retort facilities: Side-by-side furnaces with shared afterburner and filtration.
• Alkaline hydrolysis as alternative: A few facilities now install Alkaline Hydrolysis System units alongside traditional retorts for family choice.

Maintenance records for Thermocouple Assembly drift, Draft Pressure Sensor calibration, burner cleaning, and refractory inspection are required by regulatory bodies (EPA, state environmental agencies, funeral licensing boards).
