Crowner/Capper Product

Overview

Crowners and cappers are the final sealing machines in high-speed beverage lines, applying and tightening caps onto bottles with precision torque control. The rotary-carousel crowner/capper indexes bottles through capping stations where servo-controlled spindle heads grip caps and rotate them onto bottle threads at a target tightness (typically 0.5–5 N·m). Precise torque control is critical: under-tightened caps leak, while over-tightened caps strip threads or damage sealing surfaces, leading to product loss and contamination.

Industrial cappers operate at 150–400 bottles per minute and must handle multiple cap types (screw-caps, flip-tops, child-resistant closures) with minimal changeover. Vibratory cap feeders supply caps in bulk, singulating and orienting them correctly for the gripper carousel.

How it works

Cap Singulation and Delivery

The cap bowl (vibratory hopper) receives hundreds of caps in random orientation and stacking. An electromagnetic or piezo vibrator oscillates the hopper tray at high frequency (3000+ Hz micro-oscillations), causing caps to tumble along an internal scroll track. Properly oriented caps advance toward the chute, while inverted or tangled caps circulate back in the bowl. An optical sensor confirms cap orientation (top-up vs. inverted), and a solenoid air-jet gate rejects backwards caps. Correctly oriented caps slide down the gravity chute into the hands of the gripper carousel at a rate synchronized to bottle indexing.

Carousel Gripper Positioning

The rotating carousel has 12–24 gripper stations. Stepper or servo motors index the carousel to position each gripper at the cap-loading chute, where a servo gripper (with pneumatic or electromechanical actuation) closes around the cap. As the carousel rotates, the gripper carries the cap to the capping head spindle. A pneumatic lift cylinder raises the bottle from its nest up into contact with the spinning cap, and the gripper releases the cap into the spindle chuck.

Spindle-Driven Cap Application

A brushless servo motor spindle (50–100 rpm) drives the cap downward and clockwise onto the bottle's threaded finish. A torque transducer (optical or strain-gauge) mounted inline measures real-time torque. The servo amplifier compares measured torque against the target setpoint and modulates spindle motor current to maintain precise tightness. Application typically takes 2–4 seconds per bottle, including thread-engagement ramp-up and final tightening.

Once the cap is fully seated and the torque stabilizes at setpoint, a PLC countdown timer initiates cap release and head withdrawal. The spindle continues rotating backward at low speed (unscrew mode) to release the cap from the spindle chuck and prepare for the next bottle.

Closed-Loop Torque Control

The torque sensor feeds real-time data to the servo amplifier, which adjusts spindle motor PWM (pulse-width modulation) current based on the torque error. If measured torque is below setpoint, amplifier increases current; if above, it decreases. This closed-loop feedback maintains tight torque tolerance (±0.1 N·m) independent of cap material variation, thread pitch differences, or bottleneck geometry changes.

Lift and Discharge

Pneumatic lift cylinders raise bottles into capping position and lower them out after capping completion. Cylinder pressure is regulated (typically 4–6 bar) to provide sufficient force without damaging plastic bottles. As the carousel continues rotating, filled and capped bottles exit at the discharge station and transfer to the next process (labeler, case-packer, etc.).

Typical Applications

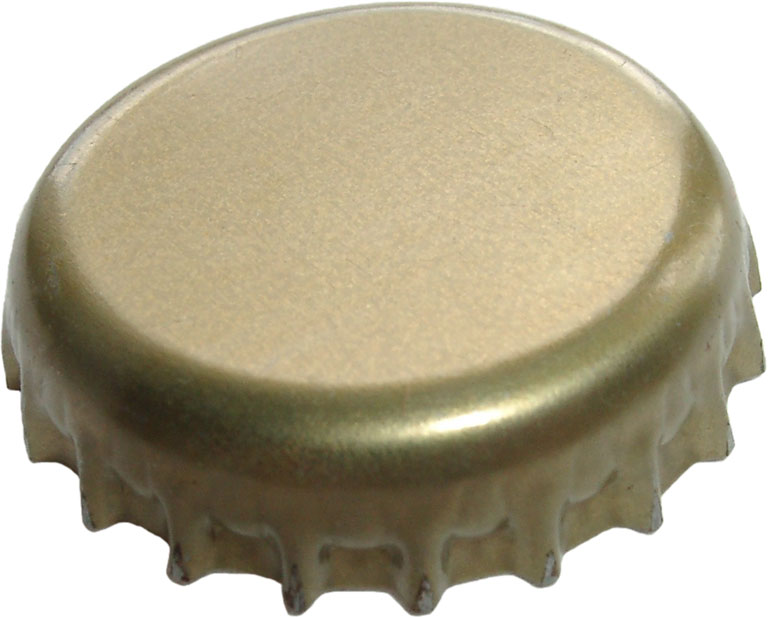

Screw-caps (plastic and aluminum) on beverage bottles: torque 1.0–2.5 N·m. Flip-tops on sports drinks and water: 0.5–1.5 N·m. Child-resistant caps on pharmaceuticals and pesticides: 2.5–5.0 N·m (variable grip-release torque). Crimped metal crowns on beer bottles (vintage crowners): specialized machines with rolling dies instead of rotating spindles.

Cap Size Changeover

Changing cap diameter requires only replacement of the gripper finger inserts and spindle chuck adapters, typically a 15–30 minute job. No mechanical frame adjustment is needed. The servo control system remains unchanged, accepting new torque setpoints via HMI without code recompilation.

Torque Data Logging and Quality Assurance

The PLC records torque profile for every capped bottle: minimum, maximum, and final torque, as well as ramp-up time. This data is exported to quality management systems for statistical analysis (Cpk, process capability) and traceability. Bottles with out-of-tolerance torque are automatically flagged and rejected downstream.

Failure Modes and Diagnostics

Common issues include: (1) Caps skipping threads if spindle speed ramps too fast (servo speed ramping is adjustable). (2) Over-tightening if torque sensor drifts or setpoint is too high (sensor calibration check monthly). (3) Gripper wear causing cap drops (visual inspection and gripper finger replacement). (4) Cap orientation failures if vibrator amplitude decreases due to bearing wear (vibrator bearing replacement every 1–2 years).

Maintenance and Sanitation

The cap bowl, gripper, chute, and lift cylinder are typically stainless steel or powder-coated steel. Vibratory motors are sealed against moisture. Spindle bearings are sealed and require no lubrication. The machine is designed for easy washdown: all electrical enclosures are IP65, and capping heads can be removed for overnight soaking if product adhesion or contamination occurs.
