Dark Ride System Product

Overview

A dark ride system is an immersive attraction combining autonomous vehicle navigation with theatrical effects and interactive gameplay. [[dark-ride-vehicles|Vehicles]] travel through themed dark environments (dungeons, spaceships, haunted houses, alien planets) guided by embedded floor signals or magnetic tape. Onboard computers steer the vehicles autonomously while passengers experience synchronized lighting, audio, and practical effects. Many modern dark rides include interactive elements—passengers aim onboard laser guns or motion sensors at targets throughout the ride, with a scoring system tallying hits and unlocking different effects or alternate route branches.

Dark rides have evolved from simple dark corridors (Haunted House, Log Tunnel) to sophisticated trackless experiences featuring vehicle-to-vehicle communication, multiple path options, and personalized storylines based on player performance.

How It Works

Vehicle Guidance and Autonomy

Each [[dark-ride-vehicles|vehicle]] is equipped with an onboard control unit (PCU) that reads guidance signals embedded in the ride floor. The two most common guidance systems are:

1. Magnetic tape guidance: A magnetic stripe embedded in the floor encodes position and speed commands. Onboard Hall-effect sensors detect the magnetic field strength and polarity, translating them into lateral position (left-right offset from center) and desired velocity. The PCU calculates a steering correction and commands the servo motor to adjust the front guidewheels left or right to recenter the vehicle on the path.

2. Inductive loop guidance: A low-frequency AC wire loop buried under the floor encodes position digitally. An onboard inductive coil picks up the signal, and the PCU decodes the vehicle position and commands. This method is less sensitive to magnetic field interference from metal structures.

In both cases, the guidance signal also includes speed commands and braking cues. For example, at a turn, the signal might say "reduce speed to 8 km/h" and "apply light steering". At a dark scene transition, it might say "stop for 3 seconds; play audio cue; then resume forward motion at 5 km/h".

Motor and Propulsion

The [[dark-ride-propulsion-unit|propulsion system]] is a brushless DC motor (1–3 kW) geared down through a planetary gearbox (10:1 to 20:1 ratio) to provide fine speed control. The onboard lithium-polymer battery (20–60 kWh depending on route length and number of vehicles) powers the motor.

An electronic speed controller (ESC) accepts speed commands from the vehicle PCU and modulates motor current to match the desired velocity. Typical cruising speed is 8–12 km/h, allowing passengers to observe scenes and effects. Top speed (used for escape sequences or exciting moments) is 15–25 km/h.

Steering and Path Following

The [[dark-ride-steering-assembly|steering system]] uses a proportional servo motor to adjust guidewheels. The onboard sensor continuously calculates lateral error (offset from path centerline) and feeds this into a PID control loop, which commands the servo to steer proportionally to correct the error.

Typical lateral accuracy is ±5 cm, keeping the vehicle smoothly centered on the path. This allows:

• Precise targeting of specific effects (driving under a water spray at exactly the right moment).
• Consistent ride experience across multiple vehicle cycles.
• Safe navigation through narrow corridors and tight curves.

Show Control and Synchronization

The [[dark-ride-control-backbone|central control system]] is a master PLC that orchestrates all show elements: lighting, audio, practical effects, and vehicle behavior. It receives real-time feedback from all vehicles (position, speed, restraint status) and from interactive sensors (has passenger A hit target B?).

Based on ride state and passenger input, the master PLC sends:

• Lighting cues: "Change corridor lights to red at 19:30:45".
• Audio triggers: "Play spooky laugh in zone 3 when vehicle reaches position 120 m".
• Effect commands: "Open pneumatic door at checkpoint; trigger fog effect; play sound-effect".
• Vehicle commands: "Vehicle 2, slow down; wait 5 seconds; then resume to 10 km/h".

Show timing is deterministic and repeatable, allowing the ride to feel choreographed even as passengers make interactive choices.

Interactive Gameplay

Modern dark rides incorporate player actions into the narrative:

1. Targeting: Each vehicle is equipped with [[dark-ride-interactive-elements|onboard laser or infrared emitters]]. Passengers aim and shoot at retroreflective targets mounted throughout the ride scenes. A camera or photodiode sensor on each target detects the hit and reports score to the master PLC.

2. Real-time scoring: Points are displayed on an onboard LCD screen as hits accumulate. At the end, final score is displayed, and riders can compare scores with other vehicles on a leaderboard.

3. Branching paths: Some dark rides offer multiple route options. If player A scores highly on the first half, the master PLC can route that vehicle through an "advanced" second half with more challenging targets. Players with low scores see a simpler route.

4. Multi-vehicle interaction: Some dark rides allow vehicles to "compete"—targeting effects that damage an opponent vehicle or reveal its location. Wireless communication between vehicles allows the master PLC to coordinate competitive dynamics.

Design and Components

Vehicle Frame and Seating

The [[dark-ride-vehicle-frame|vehicle frame]] is typically welded aluminum or steel tubing, 2–3 meters long and 1.5 meters wide. It is designed to be lightweight (1,500–2,500 kg empty) while accommodating 4–8 passengers and all onboard systems.

Passengers sit in molded plastic or cushioned seats bolted to the frame. Safety bars (lap bars or over-shoulder harnesses) are bolted to the seat structure. Each restraint has a magnetic proximity sensor that confirms closure before dispatch.

The vehicle is open-air in most designs (no roof), allowing passengers to see the surrounding environments. Some dark rides have partial roof panels or windscreens for weather protection or thematic effect.

Battery and Power Management

Onboard lithium-polymer batteries (typically 48 V nominal, 20–60 kWh usable capacity) store enough energy for a full ride cycle (8–15 minutes) plus standby. At the end of each cycle, vehicles return to a charging dock where they are automatically charged via inductive couplers or plug connectors.

A battery management system (BMS) monitors cell voltage, temperature, and discharge rate. If a cell overheats or a voltage anomaly is detected, the BMS cuts off motor power and alerts the operator. This prevents battery fires and extends cell lifespan.

Show Devices and Effects

The ride environment contains dozens of effects:

• LED lighting: Color-changing RGB fixtures on walls, ceilings, and props. Dimming and color transitions create mood and timing cues.
• Audio: Spatial surround sound via multiple speakers positioned to create immersive soundscapes and dialogue from animated characters.
• Pneumatic effects: Solenoid valves trigger air jets, door actuators, and prop movements (animatronic limbs, slamming doors).
• Video projection: Projection mapping onto architectural elements or drop-down screens for storytelling (villain monologue, alien invasion, etc.).
• Practical effects: Fog generators, strobe lights, water spray nozzles, fire-effect heaters.

All effects are time-synchronized via network communication with the master PLC, ensuring that audio matches visual cues and interactive responses feel immediate.

Restroom for Operator Control

Operators sit in a control room overlooking the loading station. They can see all vehicles on a map display, monitor restraint closure status, and manually override or pause the ride if a safety issue is detected. They also operate the dispatch gate, which opens/closes to allow vehicles to enter the ride.

Ride Experience and Storytelling

A typical dark-ride narrative might be:

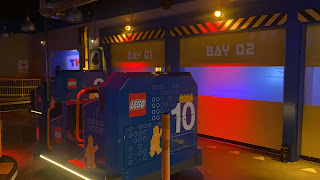

1. Load: Vehicle enters station, passengers board, restraints are checked. Operator reviews manifest and dispatches.
2. Introduction scene: Vehicle enters dark corridor with eerie music and flickering lights. First targets appear—simple shots to teach controls. Passengers start firing and accumulating points.
3. Escalation: Difficulty increases; targets move faster or are partially hidden. Audio cues taunt or encourage the player.
4. Climax: A dramatic sequence (explosion, monster reveal, chase) with coordinated lighting, sound, and vehicle motion (acceleration, sudden stop).
5. Resolution: Ending depends on player score. High scorers see a victorious resolution; low scorers see a comical failure.
6. Exit: Vehicle slows and re-enters the station. Ride operator collects final score card (or it is texted to rider email if they registered).

Standards and Safety

Dark rides are governed by ASTM F24 (F2374) and international EN 13814. Key requirements:

• Restraint testing: Hold-down forces are typically 1–2 kN per anchor, ensuring passengers remain seated during acceleration and emergency braking (up to 1 g deceleration).
• Emergency procedures: All vehicles must be able to safely coast to a stop using friction and gravity if power is lost. An emergency brake (solenoid-applied friction brake) engages automatically if control pressure is lost.
• Egress: Passengers must be able to exit from any position on the ride route within 10 minutes using manual hand-crank or motorized assistance.
• Intrinsic safety: All electrical systems are isolated from passenger-contact surfaces via insulation or barriers.
• Fail-safe steering: Loss of guidance signal or steering servo power should cause the vehicle to coast gently to a stop, not veer into obstacles.

Operational Complexity and Staffing

Dark rides are among the most complex amusement attractions operationally. They require:

• Trained operators: Multiple staff to load/unload vehicles, monitor restraints, manage dispatch sequencing, and respond to technical faults.
• Maintenance: Regular software updates, mechanical inspections of steering and brake systems, and troubleshooting of networked show elements (lighting, audio, effects).
• Technical support: On-site or remote IT personnel to maintain vehicle PCU software, master control system firmware, and wireless network stability.

Typical staffing for a mid-sized dark ride is 8–15 people per operating shift, plus 2–4 dedicated maintenance technicians.

Economics and Market

A custom-designed dark ride (400–600 m route, 6–8 vehicles, 30–50 show effects) costs $15–50 million depending on theming complexity and technology level. Annual operating costs are $500,000–$2 million (primarily labor, electricity, and software support).

Revenue potential is $2–8 million per season, driven by high capacity (600–1,200 riders per hour) and strong repeat appeal (interactive scoring encourages multiple rides to improve score).

Dark rides are economically attractive because:

• High throughput: Multiple vehicles mean high rider capacity without queue delays.
• Repeat ridership: Interactive elements and branching narratives encourage second and third rides.
• Intellectual property integration: Theming can be licensed from films, games, or brands (Star Wars, Marvel, etc.), driving ticket value.
• Weather-independent: Fully indoor operation allows year-round revenue.

Modern dark rides are increasingly adopting:

• AI-driven difficulty adjustment: Difficulty ramps based on player skill level.
• Multiplayer competition: Cross-vehicle leaderboards and cooperative objectives.
• AR/VR hybrid: Mixed reality overlays on traditional ride systems.
• Motion-base vehicles: Tilting, rocking, or spinning platforms add kinetic sensations beyond path motion.

The dark-ride category continues to grow, with new installations opening worldwide and older log-flume and motion-simulator rides being retrofit with modern trackless systems and interactive gameplay.
