Deburring Machine Product
Overview

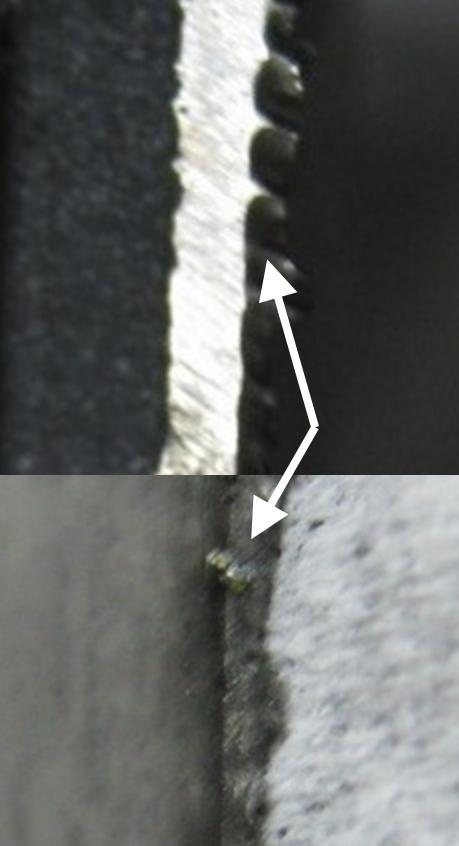

A deburring machine automatically removes sharp edges and burrs from stamped metal parts, laser-cut sheets, or CNC-machined components using rotating abrasive brushes, leaving parts ready for assembly or finishing. The machine integrates a powered conveyor that advances parts through multiple work stations, each equipped with angled rotating Brush Cylinder (nylon or wire abrasive cylinders) that make contact with the part edges. Parts enter at one end, pass through sequential stations where different brush grits work the edges, and optionally exit through an Abrasive Belt Station abrasive sanding station for final polishing. Manual deburring—using files, Scotch-Brite pads, or hand tools—is slow and inconsistent; automated deburring at 200–300 parts per hour with uniform edge quality is economically justified for production runs above 10,000 units. The system significantly reduces labor cost and ensures consistent edge radius and surface finish meeting aesthetic and safety specifications.
Conveyor and part flow
The Conveyor System is powered by a Conveyor Motor driving Conveyor Roller or a flat Conveyor Belt at adjustable speed. Parts are loaded manually onto the belt at the inlet, and friction or cleats on the belt advance them through the work stations. The conveyor speed is adjustable (typically 0–20 m/min) to control dwell time at each station. Slower speed (2–5 m/min) allows longer contact and more aggressive deburring; faster speed (10–20 m/min) is suitable for light deburring or high-throughput polishing of pre-deburred parts.
The system can be operated in two modes:
- Continuous Feed: Parts flow constantly; the operator loads and unloads simultaneously (one person can manage 300–500 parts/hour).
- Indexed/Timed: The conveyor advances intermittently (e.g., every 5 seconds), holding parts at each station for a programmed dwell time. This is preferred for parts requiring precise deburring on multiple edges.
Brush station design and orientation
Each Brush Station Assembly station features a Brush Motor driving a Brush Cylinder (cylindrical abrasive brush), mounted on an adjustable Brush Arm. Brushes can be angled (15°–45°) to attack edges at optimized angles. A typical deburring machine has 4–6 brush stations:
- Station 1: Nylon brush, 60 grit (aggressive removal of large burrs)
- Station 2: Nylon brush, 120 grit (intermediate smoothing)
- Station 3: Nylon brush, 180 grit (fine finishing)
- Stations 4–5 (optional): Wire brush (stainless or carbon steel) for specific edge profiles or polishing to bright finish.
Each brush operates independently, so brushes can be stopped or adjusted while the conveyor continues feeding parts. This allows on-the-fly tuning without stopping production.
Brush media and edge finishing
Brush cylinders come in two primary types:
Nylon Abrasive Brushes: Nylon filament impregnated with abrasive grit (silicon carbide or aluminum oxide). Grits range 40–220. Softer than bristle brushes, nylon is gentler on soft metals (aluminum, brass) and provides consistent edge radius (0.2–1.0 mm typically). Cost is moderate (£50–£200 per brush).
Twisted Stainless-Steel or Carbon-Steel Wire Brushes: More aggressive, stripping away heavier burrs and oxidation. Wire brushes create a brushed or satin finish, polishing surfaces as they deburr. Less suitable for softer metals (they can tear aluminum). Cost is £30–£100 per brush.
The Brush Cylinder are held on the Brush Spindle Shaft via set screws or tapered arbors and can be replaced in 5–10 minutes. Brush life depends on material hardness and usage: nylon brushes last 100–500 operating hours; wire brushes last 50–200 hours.
Abrasive belt sanding station
The optional Abrasive Belt Station is a dedicated sanding station for flat-surface finishing. A Belt Sander Motor drives an Abrasive Sanding Belt (cloth-backed sandpaper, typically 80–220 grit) over two pulleys. A Sanding Pad backing pad applies pressure, ensuring uniform contact. Parts passing under the belt receive a polished finish. The belt is replaced every 500–1000 hours or sooner if clogging occurs. This station is optional; many machines only have brush stations for edge deburring.
Dust extraction and safety
Dust Extraction System is critical because abrasive wear generates significant particulate. An Extraction Fan draws 500–2000 CFM (depending on machine width and brush density), and an Dust Filter (cartridge or bag) removes particles before exhaust to atmosphere. The Filter Cleaner (pulse-jet or mechanical vibrator) periodically reverses airflow through the filter, dislodging caked dust and maintaining extraction effectiveness.
An Airflow Interlock monitors ductwork static pressure; if airflow drops (sign of filter blockage or leak), an alarm sounds and the machine stops automatically, preventing dust escape into the workplace.
Safety guarding is essential: an Access Safety Gate with interlocks prevents operator access to rotating brushes and conveyor. Emergency stop buttons are positioned at load and unload points.
Control and sequencing
Simple machines use a Control System with a start/stop button and speed potentiometer. More sophisticated systems have a PLC controlling:
- Conveyor speed (VFD-adjusted).
- Brush spindle RPM (separate VFD or AC voltage controller for each motor group).
- Dwell time at indexed stations (via timer relay).
- Dust-extraction fan interlock.
Programs can be stored for different part types: "light edge break" (low speed, coarse grit only) vs. "mirror polish" (slow speed, multiple grit progression). Operators select the program and load parts.
Edge radius and surface finish
The combination of brush type, grit, spindle RPM, and dwell time determines edge radius and surface finish. A 0.5 mm edge break (light deburring) requires 3–5 seconds of nylon 120-grit contact at 1500 rpm. A 1–2 mm edge chamfer (heavier deburring) requires sequential passes through 60-grit and 120-grit stations, total 10–20 seconds. Surface finish (Ra) improves from 3.2 μm (as-stamped rough) to 0.4–0.8 μm (polished by fine grit nylon or wire brush).
Material compatibility
Different materials require different brush selections:
- Mild steel and aluminum: Nylon abrasive works well; fast processing.
- Stainless steel: Nylon 120–180 grit; avoid wire brushes (can mark surfaces).
- Brass and copper: Nylon or very fine stainless-steel wire to avoid scratching.
- Plastics (ABS, nylon): Soft nylon or wire brush only; avoid aggressive grit.
The Brush Arm are adjustable, allowing quick brush-height and angle changes for different part profiles.
Throughput and economics
A machine processing parts at 5 m/min on a 1 m belt with 0.5 m spacing between parts achieves:
(5 m/min) ÷ (0.5 m/part) = 10 parts/min = 600 parts/hour
Actual throughput varies: complex parts with multiple edges (enclosures, brackets) process slower (200–300/hour); simple flat stampings process faster (500+ /hour). One operator can load and unload continuously, so net labor cost is minimal. Payback typically occurs within 18–24 months for shops deburring more than 30,000 parts/year.
Maintenance and uptime
Conveyors and motors are standard industrial components with long service life (5000+ hours). Main wear items are brush cylinders and abrasive belts. Brush motors are checked for overheating (friction from dull brushes); a thermal relay or overload stops the machine if a motor exceeds 80 °C. Bearing lubrication and belt tension checks are monthly. Extraction-filter cartridge changes are done every 200–500 operating hours based on dust load.
Custom configurations
Machines can be tailored for specific parts:
- Precision edge radius: Add flow-monitoring stations and adjust for ±0.05 mm consistency.
- Selective deburring: Parts fixture locates specific edges under designated brushes, skipping untouched surfaces.
- Integrated quality control: Vision inspection on exit, sorting good parts from those needing re-deburring.
Build & assembly graph
expand / collapse · shared sub-assemblies converge · links to related products · est. labourTap an assembly to expand/collapse · tap a part to open it · use “Open page” for any node · drag to pan, scroll to zoom.
Bill of materials
6 top-level lines · 42 rows shown · 127 parts total · indented to 3 levels| # | Item / sub-assembly | Part no. | Qty/assy | Ext. qty | Parts | Type |
|---|---|---|---|---|---|---|
| 1 | Machine Frame 5 parts | deburring-machine-frame | 1× | 1 | 28 | assembly |
| 1.1 | Base Plate | deburring-machine-frame-base | 1× | 1 | — | part |
| 1.2 | Frame Column | deburring-machine-frame-columns | 4× | 4 | — | part |
| 1.3 | Side Rail | deburring-machine-frame-rails | 2× | 2 | — | part |
| 1.4 | Access Safety Gate | deburring-machine-frame-access-gate | 1× | 1 | — | part |
| 1.5 | Fastener Set | fastener-set | 20× | 20 | — | part |
| 2 | Conveyor System 6 parts | deburring-machine-conveyor-system | 1× | 1 | 27 | assembly |
| 2.1 | Conveyor Belt | deburring-machine-conveyor-belt | 1× | 1 | — | part |
| 2.2 | Conveyor Roller | deburring-machine-conveyor-rollers | 4× | 4 | — | part |
| 2.3 | Conveyor Motor | deburring-machine-conveyor-motor | 1× | 1 | — | part |
| 2.4 | Speed Control | deburring-machine-conveyor-speed-control | 1× | 1 | — | part |
| 2.5 | Ball Bearing | ball-bearing | 8× | 8 | — | part |
| 2.6 | Fastener Set | fastener-set | 12× | 12 | — | part |
| 3 | Brush Station Assembly 6 parts | deburring-machine-brush-spindles | 1× | 1 | 36 | assembly |
| 3.1 | Brush Motor | deburring-machine-brush-motors | 4× | 4 | — | part |
| 3.2 | Brush Spindle Shaft | deburring-machine-brush-spindle-shafts | 4× | 4 | — | part |
| 3.3 | Brush Cylinder | deburring-machine-brush-bodies | 4× | 4 | — | part |
| 3.4 | Brush Bearing | deburring-machine-brush-bearings | 8× | 8 | — | part |
| 3.5 | Brush Arm | deburring-machine-brush-positioning-arms | 4× | 4 | — | part |
| 3.6 | Fastener Set | fastener-set | 12× | 12 | — | part |
| 4 | Abrasive Belt Station 6 parts | deburring-machine-belt-drive-unit | 1× | 1 | 10 | assembly |
| 4.1 | Belt Sander Motor | deburring-machine-belt-drive-motor | 1× | 1 | — | part |
| 4.2 | Sanding Belt Pulley | deburring-machine-belt-pulleys | 2× | 2 | — | part |
| 4.3 | Abrasive Sanding Belt | deburring-machine-abrasive-belt | 1× | 1 | — | part |
| 4.4 | Sanding Pad | deburring-machine-belt-pressure-pad | 1× | 1 | — | part |
| 4.5 | Belt Tensioner | deburring-machine-belt-tensioner | 1× | 1 | — | part |
| 4.6 | Ball Bearing | ball-bearing | 4× | 4 | — | part |
| 5 | Dust Extraction System 6 parts | deburring-machine-dust-collection | 1× | 1 | 9 | assembly |
| 5.1 | Extraction Fan | deburring-machine-extraction-fan | 1× | 1 | — | part |
| 5.2 | Dust Filter | deburring-machine-dust-filter | 1× | 1 | — | part |
| 5.3 | Filter Cleaner | deburring-machine-filter-cleaning-system | 1× | 1 | — | part |
| 5.4 | Dust Ductwork | deburring-machine-ductwork | 1× | 1 | — | part |
| 5.5 | Airflow Interlock | deburring-machine-airflow-switch | 1× | 1 | — | part |
| 5.6 | Connector | connector | 4× | 4 | — | part |
| 6 | Control System 7 parts | deburring-machine-control-system | 1× | 1 | 17 | assembly |
| 6.1 | PLC CPU | deburring-machine-plc-cpu | 1× | 1 | — | part |
| 6.2 | Speed Knob | deburring-machine-speed-potentiometer | 1× | 1 | — | part |
| 6.3 | Spindle Speed Control | deburring-machine-spindle-speed-control | 1× | 1 | — | part |
| 6.4 | Timer Relay | deburring-machine-timer-relay | 1× | 1 | — | part |
| 6.5 | Control Panel | deburring-machine-control-panel | 1× | 1 | — | part |
| 6.6 | Relay | relay | 4× | 4 | — | part |
| 6.7 | Connector | connector | 8× | 8 | — | part |
