An electronic apex locator determines how far an endodontic file has advanced down a root canal, and in particular when its tip reaches the apical constriction — the narrowest point of the canal, typically 0.5–1.0 mm short of the radiographic apex, where root canal preparation and filling should terminate. Working past this point pushes debris and filling material into the periapical tissue; stopping short leaves infected canal space. Radiographs show the apex only in two dimensions and routinely misplace the constriction by a millimetre or more, so electronic length determination has become the standard of care, with modern multi-frequency units locating the constriction to within ±0.5 mm in roughly 95% of canals.

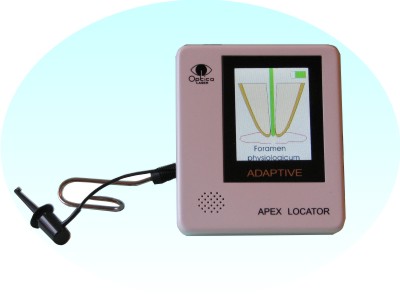

The instrument is a small tabletop unit. The Impedance Measurement Module module generates the measurement signal and computes position; the Electrode Lead Set connect it to the patient through a File Clip Electrode on the instrument and a Lip Hook Electrode resting on the oral mucosa; the Display Module shows a graduated canal graphic; and the Audio Feedback Module module sounds proximity tones so the clinician can keep their eyes on the tooth.

Measurement principle

The root canal, the file inside it, and the patient's mucosa form an electrical circuit. Dentine and the canal contents behave as a complex impedance between the file tip and the lip electrode, and that impedance changes characteristically as the tip approaches the periodontal ligament at the constriction. Early single-frequency devices simply measured resistance against a fixed 6.5 kΩ threshold and were badly disturbed by irrigants, blood, and pulp remnants in the canal.

Modern ratio-type locators avoid this by measuring at two frequencies at once. The Dual-Frequency Signal Generator drives the canal with sub-microampere sine currents at roughly 0.5 kHz and 8 kHz, and the Sense Amplifier & Detector recovers the impedance magnitude at each frequency by synchronous detection. Because the canal behaves capacitively, the two impedances diverge as the tip nears the constriction, and their quotient — not either absolute value — maps to position. The quotient is largely independent of the conductive medium filling the canal, which is why ratio-type units read correctly in sodium hypochlorite, saline, blood, or EDTA. The Impedance Measurement Module firmware converts the quotient to a position on a calibrated scale and flags the constriction at a quotient near unity.

Patient safety is set by the Patient Isolation Barrier barrier: transformer and optocoupler isolation hold the patient auxiliary current below 10 µA, meeting IEC 60601-1 type BF limits. The signal level is far below sensory threshold, though use in patients with older unshielded cardiac pacemakers is still listed as a precaution by most manufacturers.

Use and feedback

The clinician hangs the Lip Hook Electrode on the patient's lip, attaches the File Clip Electrode to the file shaft, and advances the file. The Display Module shows the tip moving down a graduated canal graphic; inside the apical third the Audio Feedback Module tone train accelerates, becoming continuous at the constriction and changing pitch if the tip passes beyond it. Most units let the operator store a reference offset — for example 0.5 mm short of the detected constriction — so working length can be read directly. For hand instrumentation without a clip, the Touch Probe Electrode is touched to the file intermittently. The shielded Shielded Lead Cable rejects mains hum, which would otherwise swamp the nanoampere-level sense signal.

Readings require a closed circuit: a dry canal, a fractured instrument, or contact between the file and a metallic restoration all produce unstable or falsely short readings. Standard technique verifies the electronic length once with a periapical radiograph.

Construction

The electronics sit in a wipeable ABS clamshell — the Upper Shell and Lower Shell — sealed with an O-Ring Set at the connector openings and operated through a Membrane Keypad of membrane switches that tolerate surface disinfectants. A Tilt Stand props the Display Window Lens toward the operator. Power comes from a single LiPo Cell supervised by a BMS Board and a Thermal Fuse, charged through the USB-C Charge Port; measurement is locked out while the charger is connected so mains leakage can never reach the patient circuit. The electrode set — clip, hook, and probe — detaches at a locking Connector and is autoclaved at 134 °C between patients, while the cable is wipe-disinfected.

Before each patient the leads are verified on the Function-Check Tester tester: clip and hook plug into the Lead Test Socket, which connects them across the Reference Impedance Network, an RC network emulating a canal at the constriction; the display must read the apex mark, proving the whole chain from electrodes to ADC. Many manufacturers integrate the same measurement module into endodontic motors, so the handpiece auto-reverses when the rotary file reaches the set working length.
