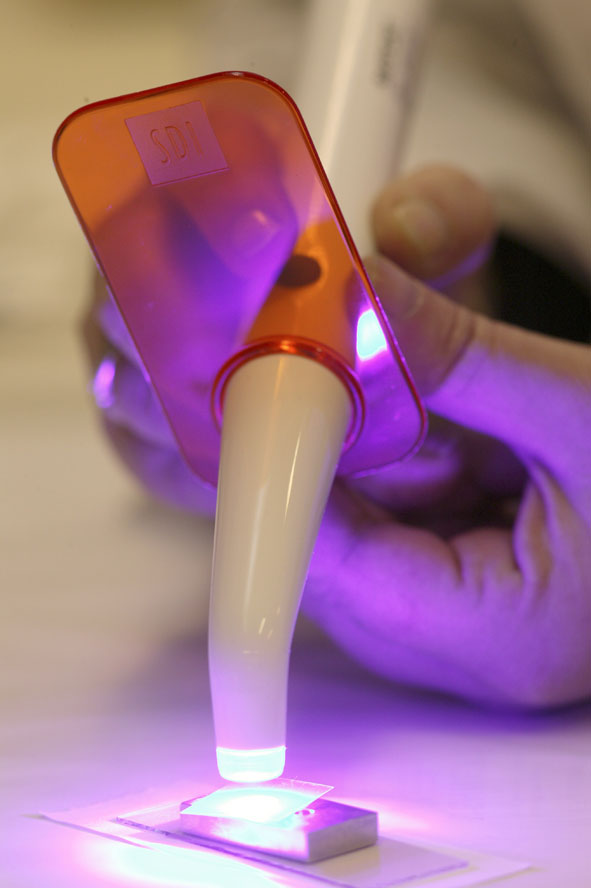

Dental Curing Light

Overview

A dental curing light hardens the tooth-coloured composite a dentist packs into a cavity. The composite stays soft and workable until it is flooded with blue light; that light trips a photoinitiator in the resin, which kicks off a chain reaction that cross-links the material into a hard, durable filling in seconds. The cordless LED design built here has displaced the old halogen lamps because it runs cool, needs no warm-up, and puts its energy exactly where the resin absorbs it.

The business end is the LED Optical Head, where a High-Power Blue LED emitting at 450–470 nm sits on a LED Heat Spreader behind a Lens Assembly that collimates the beam into the Light Guide. The Driver Board holds the LED current steady and runs the cure timer, the Battery Pack frees the wand from a cord, and the Charging Base tops it up between patients. A Radiometer Sensor lets the operator verify output, and the Activation Trigger starts the cure.

Matching the LED's emission to the photoinitiator's absorption band is the whole trick: the narrow blue output of an LED wastes almost none of its energy as heat in the tooth, unlike the broad-spectrum halogen lamps it replaced.

How it works

Pressing the Trigger Switch tells the Microcontroller on the Driver Board to start the program chosen with the Mode Button. The Constant-Current Regulator then drives the High-Power Blue LED at a precise forward current, because irradiance depends on current and the cure dose is irradiance multiplied by time. Holding the current flat as the Li-ion Cell, 18650 in the Battery Pack discharges is what keeps the delivered dose consistent from a full charge to a low one. The Timer Buzzer beeps at fixed intervals so the clinician can time the cure by ear.

The light itself leaves the High-Power Blue LED, is gathered by the Lens Assembly, and travels down the Light Guide, whose swivel lets the operator angle the tip into the mouth without twisting the wand. The LED Heat Spreader carries away the junction heat that would otherwise droop the output mid-cure. A clear Barrier Sleeve over the Wand Housing keeps the wand clean between patients.

Output falls as an LED ages or a guide gets resin-fouled, so the Radiometer Sensor holds a calibrated photodiode behind a Radiometer Filter that passes only the curing band; pointing the tip at it reads back the real irradiance. When the wand returns to the Charging Base, the Charge Contacts meet the Cradle Contacts and the Charge Control Board recharges the pack under BMS Board supervision.
