Dental Operating Light Product

Overview

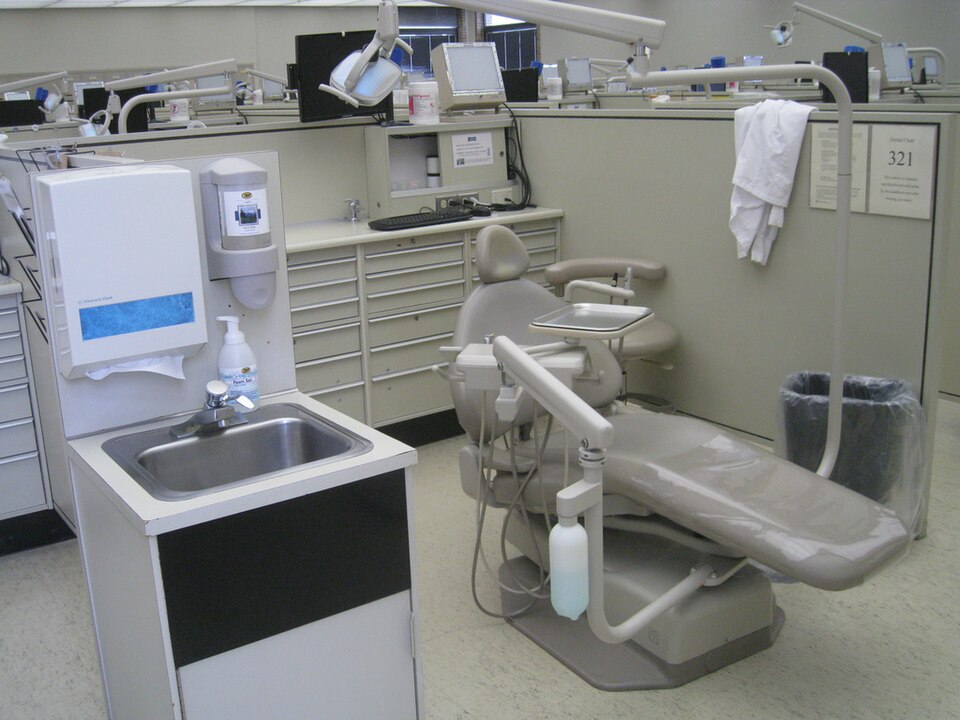

A dental operating light illuminates the oral cavity with a bounded, uniform, color-accurate field bright enough to distinguish dentine from carious tissue and pink shades of inflamed gingiva, while keeping glare out of the patient's eyes. Its requirements are codified in ISO 9680: a defined illuminance range at the working distance, a homogeneous light pattern with a sharp cutoff toward the patient's face, color rendering good enough for shade matching, and limits on the radiant heat delivered to the field. Halogen lights met these requirements with a 50–150 W bulb and a dichroic reflector; current lights meet them with a few watts of LEDs and molded optics, eliminating bulb changes and most of the heat.

The light has three mechanical groups: the LED Light Head containing source and optics, the spring-balanced Articulating Arm that holds it anywhere over the patient, and the Mounting System that carries the loads into the chair pole or ceiling. Electrically, the LED Driver Electronics regulates LED current and the Control Module select intensity and mode.

Optics

The source is the High-CRI LED Array — typically four to six white LEDs with a color rendering index of 95 or better at around 5,000 K, the neutral-daylight point at which tooth shades are matched. Each LED emits into a near-hemisphere, so a Collimator Lens Set sits over every die to gather the emission into a parallel beam. The Field-Shaping Front Lens then overlays all the collimated beams into a single rectangle of roughly 180 × 90 mm at 700 mm working distance. Because every point in the pattern receives light from every LED, an instrument or the operator's hand crossing the beam dims the field instead of casting a hard shadow, and the failure of one LED reduces brightness without holing the pattern. The lens facets give the rectangle a sharp upper edge — the cervical cutoff — that keeps illumination off the patient's eyes; ISO 9680 requires the illuminance just outside the pattern to fall off steeply.

A distinctly dental feature is the composite mode selected at the Mode Selector Switch: light-cured restorative resins polymerize under blue light around 470 nm, the same band a white LED emits strongly, so working light at full spectrum starts curing the composite while the dentist is still shaping it. Composite mode filters or substitutes the output below about 500 nm, shifting the field yellow and extending working time from seconds to minutes.

Power and control

The Constant-Current Driver Board is a buck constant-current converter fed from the chair's 24 V supply through the unit Power Supply stage. Dimming is by PWM at several kilohertz — far above both flicker perception and the banding frequencies of intraoral and loupe-mounted cameras. A Heatsink Thermistor on the LED Heatsink derates current if convection cooling falls behind; the head is fanless, since a fan would stir aerosols over the surgical field.

Intensity is normally changed without touching the light at all: the IR Gesture Sensor is a reflective IR detector that steps brightness or toggles the light from a hand wave a few centimetres away, keeping contaminated gloves off shared surfaces. For positioning, each side of the head carries a Removable Handle grip whose Handle Release Latch releases without tools, so the grips can be autoclaved at 134 °C or fitted with disposable barrier sleeves between patients.

Mechanics

Positioning effort dominates the user's experience of an operating light. The Spring-Balance Arm Section is a parallelogram link whose internal Coil Spring is tensioned to cancel the head's moment across about 70° of elevation, so the head floats: it stays exactly where released, with no knobs to lock. Horizontal placement comes from the Rigid Swing Arm Section swinging on the mount, and fine aiming from the two-axis Head Yoke Gimbal. Every pivot carries a Friction Joint adjusted so one-handed repositioning is light but the head does not drift under chair vibration. The Internal Arm Wiring Loom runs inside the arm with service loops at each pivot, and the Rotation Stop Bushing bushing in the mount limits base rotation to roughly 540° so the loom can never wind up. Pole-mounted lights bolt to the chair casting through the Mount Flange; ceiling versions use the same arm on a structural tube, trading floor space for a fixed installation height.
