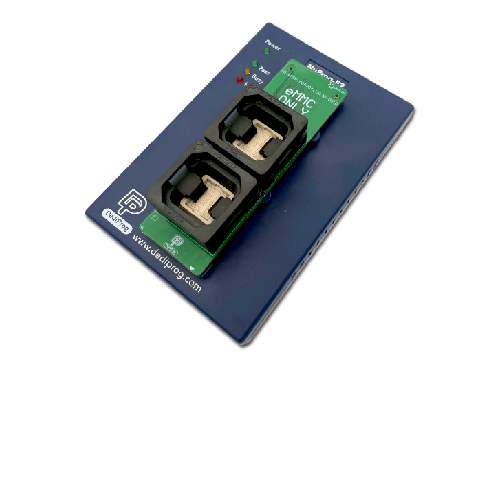

Universal Device Programmer Product

Overview

A universal device programmer is a laboratory instrument used to read and write the contents of memory and programmable logic devices. Unlike application-specific programmers (designed for one family of devices), universal programmers support thousands of devices—microcontroller flash, EEPROM, NVRAM, EEPROMs, CPLDs, and FPGAs—by using interchangeable [[device-programmer-socket-module|socket modules]] and configurable [[device-programmer-pin-drivers|pin drivers]].

The core appeal is economic: a single USD 2000–5000 universal programmer replaces dozens of specialized programmers (AVR ISP for Atmel, STM32 ST-LINK for ARM, Altera ByteBlaster for Xilinx, etc.). An engineer maintains one device database and one software interface. When a new device enters production, the vendor often supplies a "device file" defining voltages, timing, and algorithm—the programmer is updated via firmware without hardware replacement.

FPGA-based programmers introduced in the 2010s displaced older microprocessor designs, offering flexibility in clocking rates, trigger patterns, and algorithm implementation. The FPGA can be reprogrammed in seconds to support new device families or algorithms that were previously restricted to firmware updates.

How it Works

The user loads a device into the [[device-programmer-socket-module|ZIF socket]], closes the clamping lever, and selects the device type from PC software. The software downloads the device file (defining voltage levels, timing, and algorithm) to the programmer's [[device-programmer-fpga-controller|FPGA]]. The FPGA synthesizes the exact clocking and signal sequence required by the target device.

The [[device-programmer-pin-drivers|pin drivers]] are configured as voltage sources, current sources, or comparators depending on the programming algorithm phase. For flash programming (typical for microcontroller memory), the FPGA applies a program pulse—usually 12 V at 100 mA for 10 microseconds—to the device's VPP pin. The data pins are driven with the bit pattern to be programmed, and control pins (write enable, chip enable) receive precise timing signals.

A [[device-programmer-sense-adc|feedback ADC]] continuously measures pin voltages and currents. If a pin exceeds its current limit (indicating a short), the [[device-programmer-current-limiter|electronic fuse]] immediately disconnects it, protecting both the device and programmer. After each program pulse, the FPGA verifies the written data by reading the cell back—a process called "verify on program."

The [[device-programmer-memory-buffer|dual-port SRAM buffer]] allows continuous programming without waiting for USB transfers. Data from the host arrives via USB at 480 Mbps, filling the buffer. The FPGA independently reads from the buffer at whatever rate the device allows (typically 1–10 Mbps for flash programming). This buffering decouples host and programmer timing, enabling fast, uninterrupted programming.

Socket Modules and Adapters

Each [[device-programmer-socket-module|socket module]] is a single-insertion-force (ZIF) socket with 64 gold-plated spring-loaded pins. The ZIF mechanism uses a lever that, when open, allows the device to drop in without force. When closed, a cam follower presses all pins simultaneously against the device pads—critical for maintaining consistent contact resistance across 64 pins.

For devices not fitting DIP or PLCC socket footprints, the programmer supplies [[device-programmer-adapter-cables|custom adapter PCBs]]. An adapter for a 48-pin TSOP device contains a tiny PCB routing the 48 pins to 48 of the socket's 64 contact points. A JTAG boundary-scan adapter routes four pins (TDI, TDO, TCK, TMS) to specialized high-speed drivers, enabling direct programming of FPGAs and CPLDs via JTAG protocol without needing to remove them from their circuit boards.

Multi-Device Programming

Universal programmers typically support four [[device-programmer-socket-module|socket modules]] installed simultaneously, enabling a production operator to program four devices in parallel. The FPGA Controller manages timing-multiplexing: while one device is being programmed, the other sockets are held inactive. Advanced units feature independent [[device-programmer-pin-drivers|pin drivers]] per socket, enabling true simultaneous programming.

For in-circuit programming (not requiring device removal), the programmer supplies [[device-programmer-adapter-cables|test clips or pogo probe adapters]] that contact board-level pins. JTAG adapters are common for this use case, allowing direct FPGA/CPLD updates in production boards without desoldering.

Device Support and Software

The software database contains "device files"—tuples specifying device geometry, voltage requirements, timing parameters, and algorithm type. A typical entry for an AT28C256 EEPROM might define: 28-pin DIP, 5V supply, 12V program voltage, 10 microsecond pulses with 10 ms verify period. For flash memories, the device file references a loadable algorithm (e.g., "AMD flash algorithm v3.2") that implements the manufacturer's exact programming sequence.

Modern programmers support over 30,000 devices. Firmware updates (via USB) add new device files without hardware replacement. Some units accept community-contributed device definitions, crowdsourcing support for newer or rarer devices not yet in the vendor database.

Flash vs. ROM Programming

Flash programming is the most common task: writing firmware to microcontroller or FPGA bitstream storage. Flash uses voltage-based charge injection—applying 12 V to the floating gate of a transistor, causing electrons to tunnel through the oxide and settle on the gate. Verification involves reading the cell at nominal voltage to confirm the threshold voltage has shifted.

Older UV-erasable ROM and OTP (one-time programmable) devices required different sequences. Masked ROM programming (obsolete for small volumes) involved custom photomasks at the foundry. The programmer's support for legacy technologies makes it essential for maintenance and repair of older equipment.

Current Limiting and Protection

Each pin driver includes a [[device-programmer-current-limiter|current-limiting circuit]] that triggers if pin current exceeds a configurable threshold (typically 100–500 mA). This protects against shorts caused by incorrect device insertion, damaged pins, or defective devices. The FPGA software reports which pins exceeded current, aiding rapid troubleshooting.

Thermal Management and Power Distribution

Programming can draw significant current—flash programming of a 512 KB device at 1 Mbps requires continuous power delivery. The [[device-programmer-power-supplies|multiple regulated supplies]] (5V, 3.3V, 12V, 24V) must maintain voltage within ±2% during 10 A transients. A [[device-programmer-heatsink-block|large heatsink]] and [[device-programmer-cooling-fan|thermal management fans]] dissipate 250 W peak heat from the pass elements and linear regulators.

Specialized Applications

High-volume production uses automated programmers (magazine-fed, with pneumatic socket insertion), but universal programmers are essential for development and low-volume manufacturing. FPGA vendors use universal programmers to validate bitstream integrity during production test. Embedded systems repair shops use them to recover bricked microcontrollers or replace program storage on customer boards.
