Digital Microscope Product
Overview

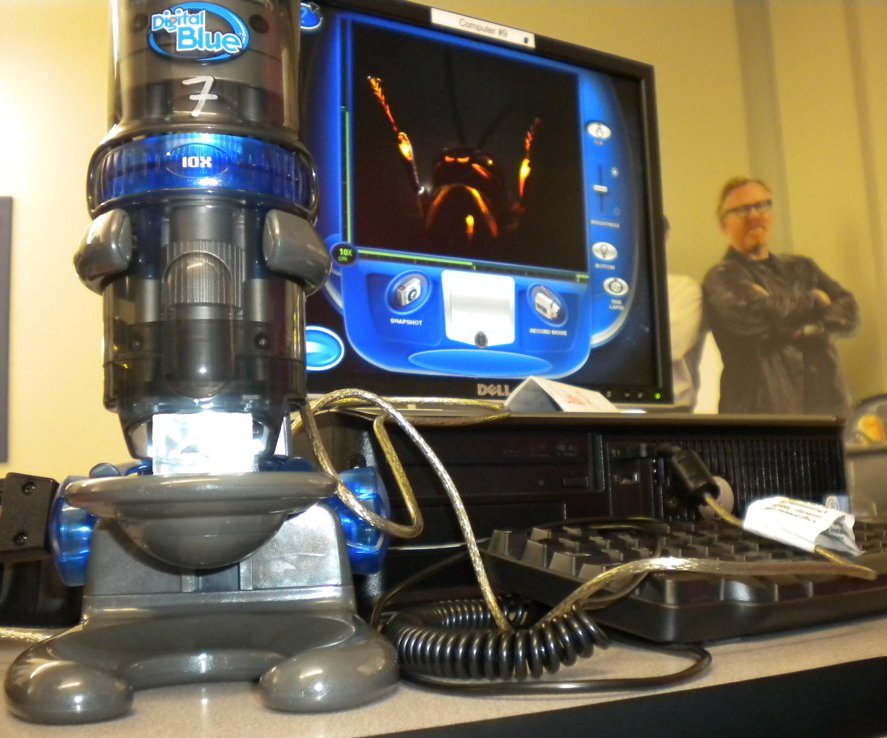

A digital microscope dispenses with the eyepiece entirely. Instead of bending light into a viewer's eye, it forms the magnified image straight onto an electronic sensor and shows the live picture on a screen. That changes how it is used: several people can study the same view at once, images and video are captured with a tap, and on-screen tools measure features directly. These instruments are common in electronics rework, materials inspection, and education, where comfort and shared viewing matter more than the last bit of optical resolution.
Light from the specimen passes through the Objective Turret and into the Camera Module, which forms the image on its sensor. The Illumination floods the subject with adjustable LED light, while the Focus & Stage brings it into focus and moves it under the lens. The Main Board processes the pixels and feeds the Display or an external monitor, and the whole head is carried on a Stand & Arm.
How it works
The optical chain starts at the Objective Turret. Clicking a different objective into place changes the primary magnification; that magnified image is relayed through the Camera Module, where a C-mount lens projects it onto a CMOS sensor behind an IR-cut filter for true color. The sensor reads out a continuous stream of frames.
Good images need good light, so the Illumination offers two modes: a ring light around the lens for even, shadow-free coverage, and a coaxial illuminator that sends light straight down the optical axis through a beam-splitter to reveal detail in shiny or recessed surfaces. A driver dims and segments the LEDs to control glare.
Sharpness and framing come from the Focus & Stage, whose geared focus drive lifts the head and whose motorized X-Y screws traverse the specimen — the same motion the system uses to capture a focus stack across depth. The Main Board, built around an image-processing SoC, debayers and enhances each frame, overlays measurement graphics, and routes the result to the built-in touchscreen and the HDMI output on the Display.
Build & assembly graph
expand / collapse · shared sub-assemblies converge · links to related products · est. labourTap an assembly to expand/collapse · tap a part to open it · use “Open page” for any node · drag to pan, scroll to zoom.
Bill of materials
8 top-level lines · 41 rows shown · 88 parts total · indented to 3 levels| # | Item / sub-assembly | Part no. | Qty/assy | Ext. qty | Parts | Type |
|---|---|---|---|---|---|---|
| 1 | Camera Module 5 parts | digital-microscope-camera-module | 1× | 1 | 5 | assembly |
| 1.1 | CMOS Image Sensor | image-sensor | 1× | 1 | — | part |
| 1.2 | Lens Assembly | camera-lens | 1× | 1 | — | part |
| 1.3 | IR-Cut Filter | digital-microscope-ir-filter | 1× | 1 | — | part |
| 1.4 | Sensor Board | digital-microscope-sensor-board | 1× | 1 | — | part |
| 1.5 | Fastener Set | fastener-set | 1× | 1 | — | part |
| 2 | Objective Turret 3 parts | digital-microscope-objective-turret | 1× | 1 | 5 | assembly |
| 2.1 | Objective Lens | digital-microscope-objective | 3× | 3 | — | part |
| 2.2 | Nosepiece | digital-microscope-nosepiece | 1× | 1 | — | part |
| 2.3 | Ball Bearing | ball-bearing | 1× | 1 | — | part |
| 3 | Illumination 4 parts | digital-microscope-illumination | 1× | 1 | 4 | assembly |
| 3.1 | LED Ring Light | digital-microscope-led-ring | 1× | 1 | — | part |
| 3.2 | Coaxial Illuminator | digital-microscope-coaxial-led | 1× | 1 | — | part |
| 3.3 | LED Driver | digital-microscope-led-driver | 1× | 1 | — | part |
| 3.4 | Diffuser | digital-microscope-diffuser | 1× | 1 | — | part |
| 4 | Focus & Stage 6 parts | digital-microscope-focus-stage | 1× | 1 | 57 | assembly |
| 4.1 | Helical Gear Pair | gear-pair | 1× | 1 | — | part |
| 4.2 | Ball Screw | ball-screw | 2× | 2 | — | part |
| 4.3 | Stage Motor 3 parts | digital-microscope-stage-motor | 2× | 2 | 24 | assembly |
| 4.3.1 | Stator Assembly 3 parts + deeper › | stator-assembly | 1× | 2 | 3 | assembly |
| 4.3.2 | Rotor Assembly 4 parts + deeper › | rotor-assembly | 1× | 2 | 19 | assembly |
| 4.3.3 | Ball Bearing | ball-bearing | 2× | 4 | — | part |
| 4.4 | Stage Plate | digital-microscope-stage-plate | 1× | 1 | — | part |
| 4.5 | Ball Bearing | ball-bearing | 4× | 4 | — | part |
| 4.6 | Fastener Set | fastener-set | 1× | 1 | — | part |
| 5 | Main Board 5 parts | digital-microscope-main-board | 1× | 1 | 9 | assembly |
| 5.1 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 5.2 | Compute SoC Module | soc-module | 1× | 1 | — | part |
| 5.3 | Microcontroller | mcu | 1× | 1 | — | part |
| 5.4 | SMD Passive (R/C/L) | smd-passives | 1× | 1 | — | part |
| 5.5 | Connector | connector | 5× | 5 | — | part |
| 6 | Display 3 parts | digital-microscope-display | 1× | 1 | 3 | assembly |
| 6.1 | LCD Panel | lcd-panel | 1× | 1 | — | part |
| 6.2 | Touch Digitizer | touch-digitizer | 1× | 1 | — | part |
| 6.3 | Connector | connector | 1× | 1 | — | part |
| 7 | Stand & Arm 4 parts | digital-microscope-stand | 1× | 1 | 4 | assembly |
| 7.1 | Base Stand | digital-microscope-base-stand | 1× | 1 | — | part |
| 7.2 | Boom Arm | digital-microscope-boom-arm | 1× | 1 | — | part |
| 7.3 | Focus Knob | digital-microscope-focus-knob | 1× | 1 | — | part |
| 7.4 | Fastener Set | fastener-set | 1× | 1 | — | part |
| 8 | Wire Bundle | wire-bundle | 1× | 1 | — | part |
Sourcing — likely vendors
Companies that make this · indicative price $100–$8k · MOQ & lead are typical| Vendor | HQ | Specialty | MOQ | Lead time |
|---|---|---|---|---|
| 🇯🇵Canon canon.com ↗ | Tokyo, JP | Imaging & optics | 500 units | 10–16 wks |
| 🇯🇵Nikon nikon.com ↗ | Tokyo, JP | Imaging & optics | 500 units | 10–16 wks |
| 🇩🇪ZEISS zeiss.com ↗ | Oberkochen, DE | Optics & optoelectronics | 500 units | 10–16 wks |
| leica-camera.com ↗ | Wetzlar, DE | Cameras & optics | 500 units | 10–16 wks |
| flir.com ↗ | Wilsonville, US | Thermal imaging | 500 units | 10–16 wks |
