Overview

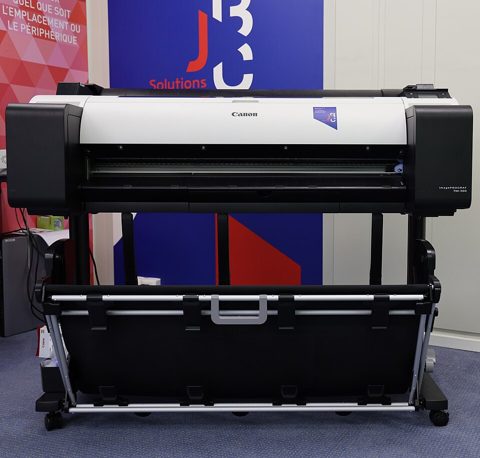

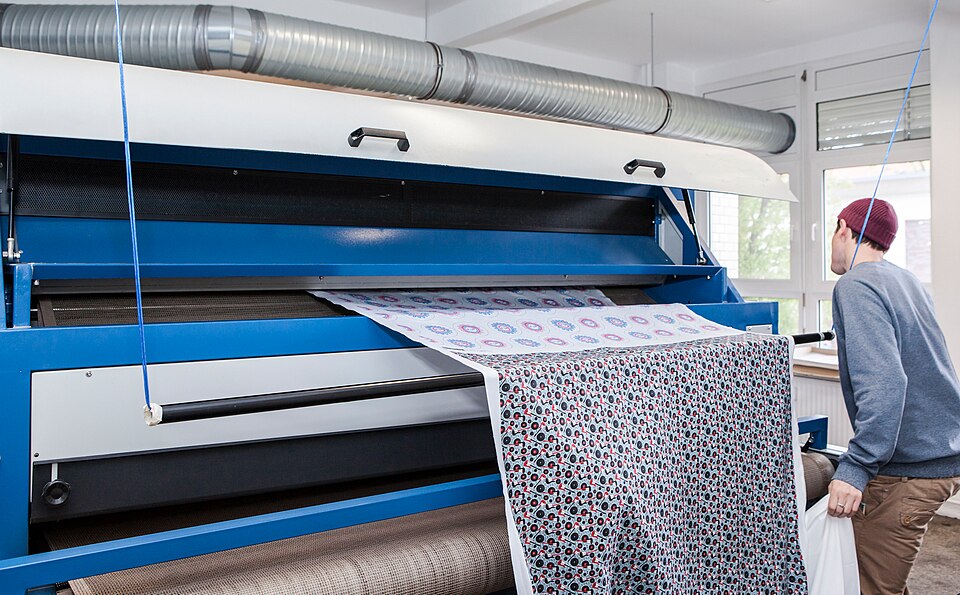

A digital textile printer deposits colored liquid ink directly onto fabric using computer-controlled inkjet nozzles, eliminating the need for screen preparation and enabling high-resolution, full-color prints. The machine accepts design files (bitmap or vector) from design software, uses a Rasterimage Processor (RIP) to separate colors and generate head firing sequences, and prints by depositing ink droplets 5–10 picoliters each at 1–10 kHz frequency.

Digital printing has revolutionized textile production for short-run and custom applications. It eliminates traditional screen setup costs and time, enabling economical production of one-of-a-kind designs, prototypes, and small batches. Quality textile digital printers produce photo-realistic images rivaling traditional printing methods at similar quality levels.

How It Works

The process begins with a design file (TIFF, PNG, PDF, or vector format) loaded into the [[digital-textile-printer-rip-station|RIP software]] on the control computer. The RIP separates the image into cyan, magenta, yellow, and black (CMYK) separations and generates a binary firing pattern for each print head's 300–1200 nozzles.

Fabric is positioned on a [[digital-textile-printer-fabric-transport-system|motorized transport belt]] and optionally pre-warmed by a [[digital-textile-printer-heating-system|preheating zone]] to 40–60°C. Pre-warming improves ink absorption and color intensity on cotton and silk. The fabric advances one print pass at a time, typically 0.1–0.5 mm per pass.

Four [[digital-textile-printer-print-head-assembly|piezo or thermal print heads]] (one per color: cyan, magenta, yellow, black) are mounted in a fixed position above the fabric. At each print pass, the RIP-generated firing sequence triggers nozzles to eject ink droplets. Each nozzle fires 1–10 times per millisecond, depositing cumulative ink onto the same fabric location. Overlapping passes with different colors create the full-color image through color overlap and dithering.

After printing, the fabric passes through a [[digital-textile-printer-dryer-section|dryer]] where heated air (80–120°C) and infrared heat evaporate water and fix dyes into fibers. The drying duration depends on fabric type: cotton reactive dyes need 5–10 seconds; silk direct dyes need 10–20 seconds.

The finished printed fabric unwinds from the take-up roll. Some applications require post-printing processing (steaming, chemical fixation) depending on ink type.

Print Head Technology

Modern textile printers use two print head types:

• Piezo inkjet: An electric signal deforms a piezo ceramic element, reducing chamber volume and forcing ink through a nozzle orifice 70–100 µm diameter. Piezo heads are robust and tolerant of varying ink viscosity. Firing frequency is 1–10 kHz.

• Thermal inkjet: An electric heater boils ink, creating a vapor bubble that forces liquid through the nozzle. Thermal heads are lower cost but more sensitive to ink chemistry and temperature.

Each head contains 300–1200 nozzles arranged in a line across the fabric width. For a 3.2 m printer at 300 dpi, the cyan head has 3800 nozzles spaced 85 µm (1/300 inch). All nozzles in a head fire simultaneously to create one pass across the fabric.

Nozzles must remain clean and primed. A [[digital-textile-printer-head-dampers|damper]] on the ink line prevents pressure spikes that could cause cavitation or nozzle flooding. Regular maintenance includes purging (forcing fresh ink through nozzles) and head cleaning (backflushing or ultrasonic vibration).

Ink System

The [[digital-textile-printer-ink-circulation-system|ink system]] includes separate reservoirs (5–50 liters each) for cyan, magenta, yellow, and black. An [[digital-textile-printer-ink-pump|ink pump]] circulates ink continuously through the print heads at 0.5–2 liters/minute and 1.5–3 bar pressure. A [[digital-textile-printer-pressure-regulator|regulator]] maintains constant pressure despite variations in nozzle backpressure.

An [[digital-textile-printer-ink-filter|ink filter]] removes particles larger than the nozzle orifice (typically >10 µm). Ink viscosity must be controlled: too thick and nozzles clog; too thin and satellite drops form. Most systems maintain ink at 20–25°C for consistent viscosity.

Ink types depend on fabric and final use:

• Reactive dyes: Form covalent bonds with fiber, offering brightness and wash-fastness (cotton, silk).
• Direct dyes: Absorb into fibers via hydrogen bonding (less durable but cheaper).
• Pigment suspensions: Particles coating fiber surface (suitable for synthetics).
• Specialty inks: Fluorescent, metallic, opaque white, or discharge (bleach-based).

Fabric Transport and Registration

The [[digital-textile-printer-fabric-transport-system|transport belt]] must move with sub-0.1 mm accuracy. An [[digital-textile-printer-encoder|encoder]] on the belt drive provides feedback, allowing the RIP to synchronize head firing with fabric position. If the fabric advances 0.2 mm per pass and the printer runs 600 dpi (42.3 µm per dot), roughly 5 passes are needed to cover the print width fully.

[[digital-textile-printer-registration-system|Registration marks]] printed in each color allow optical feedback correction. If magenta is 0.5 mm off-register relative to cyan, the camera detects the misalignment and the control system adjusts the print head position micrometers at a time until colors overlap perfectly.

Preheating and Drying

The [[digital-textile-printer-heating-system|preheating zone]] warms fabric to 40–60°C, expanding fiber and opening fiber structure for better dye absorption. This is optional but improves color intensity and wash-fastness. Heated water or infrared elements provide heat.

The [[digital-textile-printer-dryer-section|dryer]] is critical for final quality. Insufficient drying leaves ink wet and prone to bleeding; over-drying can cause dye migration or fiber damage. Temperature and duration are adjusted per fabric type using the [[digital-textile-printer-dryer-timer|timer controller]]. Exhaust air, if uncontrolled, can smell of ink solvents (acetic acid, propylene glycol); many industrial installations include solvent scrubbers or condensers.

Design to Print Workflow

A designer creates artwork in Adobe Illustrator, Photoshop, or CAD software. The file is imported into the RIP software, which displays a preview and allows color correction (saturation, brightness), halftoning settings (dot shape, size), and width/repeat adjustments.

The RIP separates the design into CMYK and generates binary firing maps: for each nozzle in each head, when should it fire during each pass. This firing map is typically 1–2 MB for a single garment. The map is uploaded to the printer's [[digital-textile-printer-pc-workstation|control computer]], which streams it to the print engine during production.

Modern RIP software includes color management profiles (device profiles) calibrating printer output to industry standards (PANTONE, Fogra). Many printers include onboard color correction to match reference prints or digital proofs.

Production Capacity and Economics

Print speed varies with resolution:

• 300 dpi: 100–150 m²/hour
• 600 dpi: 50–100 m²/hour
• 1200 dpi: 20–50 m²/hour

A T-shirt front (0.3 m²) at 600 dpi takes 11–18 seconds print time. Reload and preheating add another 20–40 seconds. Economics favor runs of 50–500 pieces for custom prints; above 500, traditional screen printing becomes cheaper per unit.

Ink consumption is 0.5–1.5 ml per m² depending on color intensity. A typical fabric at full saturation uses 1 ml/m²; pale pastels use 0.3 ml/m².

Variants

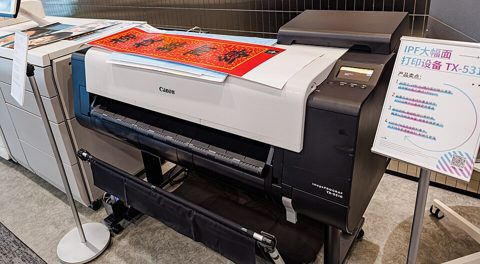

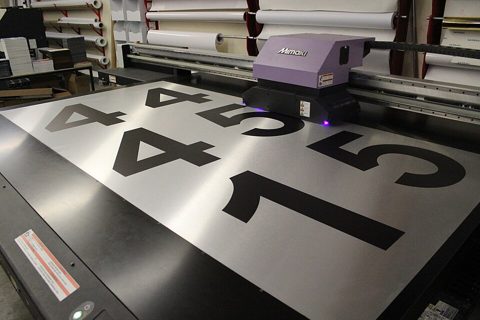

• Flatbed digital printers: Print heads move across stationary fabric; used for pre-cut garments, leather, rigid substrates.
• Belt-fed machines: Like roll-fed but with fabric secured to a moving belt.
• Continuous printing: Fabric moves continuously; heads fire with no start-stop acceleration, maximizing throughput.
• Hybrid systems: Digital print head on traditional rotary screen machine, combining speed with design flexibility.
