Overview

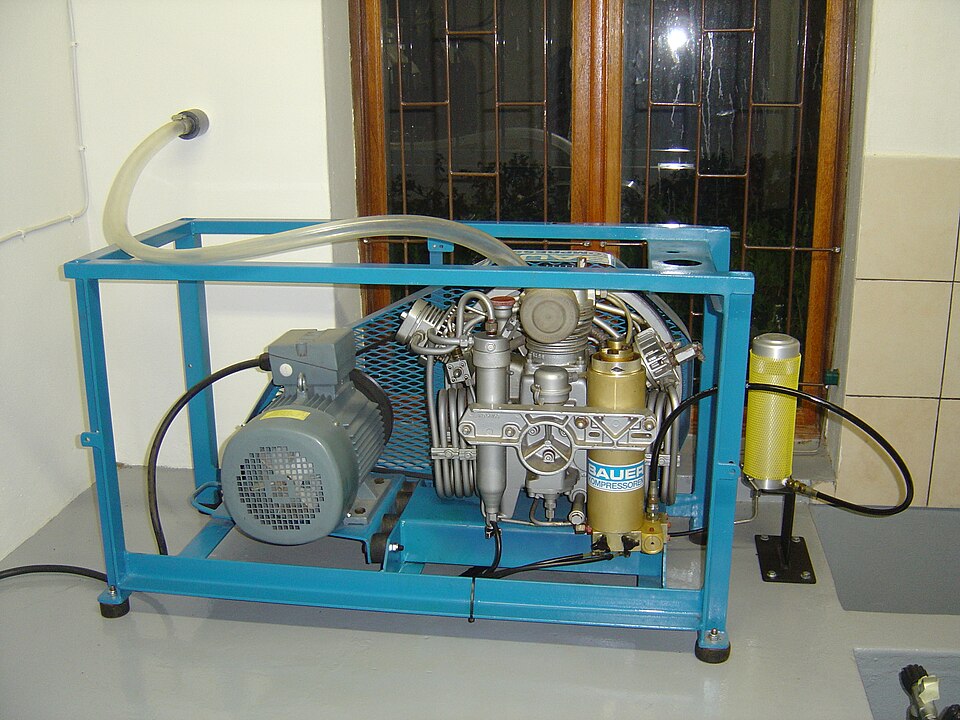

A dive compressor is a portable air supply station for scuba and surface-supplied diving operations. Unlike industrial air compressors, breathing-air units must meet strict purity standards (EN 12021 / NFPA Grade E) to prevent carbon monoxide, carbon dioxide, and particulate contamination from accumulating in diver blood and tissues.

A typical portable dive compressor weighs 320 kg, outputs 80 cc/min at 4500 psi, and requires two hours to fill 10 scuba cylinders (each 80 cubic feet). Gasoline-powered units dominate remote dive camps and marine research vessels because diesel or electric grid power is unavailable; fuel-cell variants are emerging but remain expensive ($50k+).

Thermodynamic Architecture

Air compression generates significant heat—the first First Stage raises atmospheric pressure from 14.7 psia to 150 psi, warming air from 20°C to ~80°C. Without cooling between stages, the third stage would reach 180°C and bake motor oil, destroying seals. Instead, intercoolers Intercooler (1–2) and Intercooler (2–3) drop discharge temperature back to 50–60°C before the next piston stroke.

The three-stage configuration (1→150→900→4500 psi) is a compromise. A two-stage would demand higher per-stage pressure rise and fail on seal integrity; a four-stage adds cost and weight without proportional benefit below 5000 psi. The ideal polytropic efficiency is ~60–65% for this hardware class.

Purity and Filtration

A 10-hour dive support operation exposes 4 divers to roughly 300 L of compressed air each. If the compressor exhaust contains 50 ppm oil mist from the Pump Block crankcase, each diver absorbs 15 mg of aerosol—enough to cause lipoid pneumonia in extreme cases. The Filtration System system eliminates this risk:

1. Intake: Intake Filter removes dust (10 µm) and pollen from atmosphere.
2. Primary carbon: Carbon Tower (Primary) absorbs oil vapor and hydrocarbons.
3. Secondary carbon: Carbon Tower (Secondary) captures residual moisture and trace organics via silica gel blend.
4. Final polish: Particulate Cartridge 1 µm element removes any carbon dust particles.

The result is air meeting EN 12021 Grade E: <10 ppm CO, <5 ppm CO₂, <25 ppm H₂O, <2 mg/m³ oil mist. Regulatory diving operations mandate monthly or quarterly cartridge replacement depending on intake air quality.

Compressor Head Design

The Pump Block cast iron body houses three sequential stages in a "cascade" arrangement. Each piston stroke compresses a fixed volume; outlet valves check at stage pressure, preventing backflow during intake stroke. The First Stage bore is 75 mm (largest) because it handles the most volume; the Third Stage is only 30 mm bore because pressure rise is steep and volume is tiny.

Piston rod seals are critical: a single failed O-Ring Set on stage 3 allows 4500 psi air to blow past the rod and escape. All seals are FKM (Viton) to resist residual gasoline fumes and mineral oil from engine splash lubrication.

Operational Control

The Control Panel provides load/idle control via the dive-compressor-unloader-valve. When discharge pressure reaches 4500 psi (tank full), a pilot-operated solenoid opens, venting pump output to atmosphere. The Prime Mover continues running at idle (no load), burning minimal fuel while the operator prepares the next cylinder. A mechanical pressure switch re-engages the pump unloader once pressure drops to 4200 psi, resuming compression.

The Discharge Gauge and Intake Gauge let the operator spot-check system health. Rising intake restriction (gauge reading >20 psi) signals a clogged intake filter. Discharge temperature rising above 60°C indicates fouled intercooler fins or excess load demand.

Fill Stations

A three-coupler Discharge Assembly manifold permits simultaneous charging of three cylinders. Each has an isolating Isolation Valve (solenoid-controlled) and a Quick Coupler (flat-face ISO 7241-A) rated for 4500 psi. Divers clip yoke assemblies onto cylinder valves and bleed the quick-coupler to equalize pressure before final seating, preventing explosive separation if pressure differentials exist.

The Fill Whip is stainless steel braided (SAE 100R13) to resist UV and salt air over years of outdoor use. A burst disc in the discharge manifold provides ultimate overpressure protection at 5000 psi.

Power and Logistics

Portable gasoline dive compressors typically use a single-cylinder four-stroke engine (e.g., Kohler CH340/389 cc) rated 10 hp. Fuel consumption is roughly 2 liters per 8-hour shift at 50% load factor. Electric variants (7.5 kW) are becoming standard on land-based dive operations because they eliminate fume exposure and noise pollution; however, they require 480 VAC three-phase shore power, limiting portability.

A complete dive operation—one compressor, three to five divers, support staff—uses 40–50 kg of fuel and 20 kg of filtration cartridges per week of continuous ops. Maintenance intervals are strict: oil changes every 500 hours, air filter replacement every 100 hours, carbon cartridge replacement every 200 hours or after exposure to high-humidity intake air.
