Deepwater Drillship Product

Overview

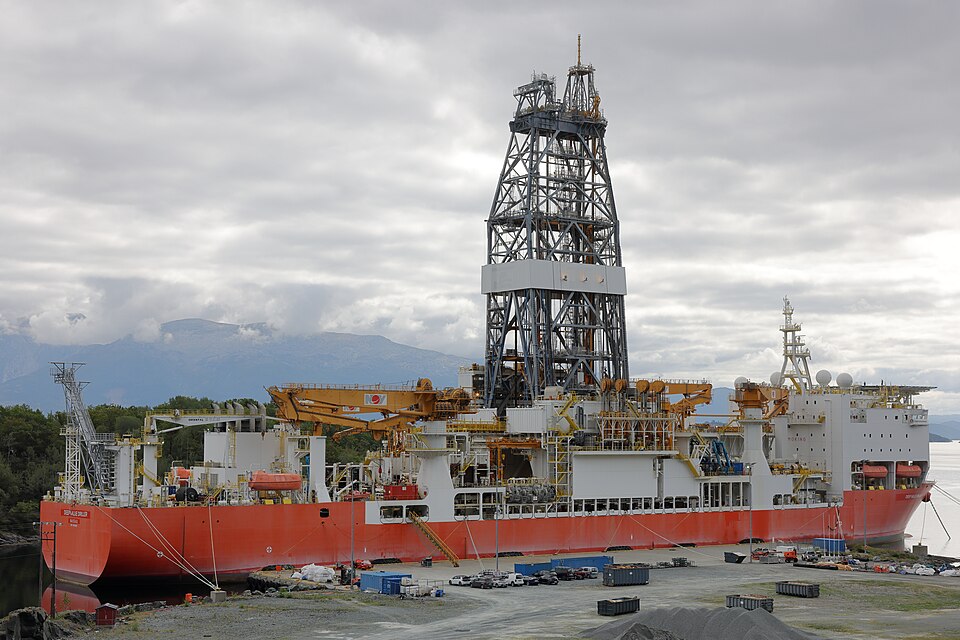

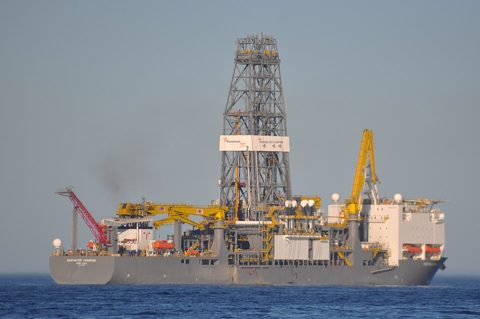

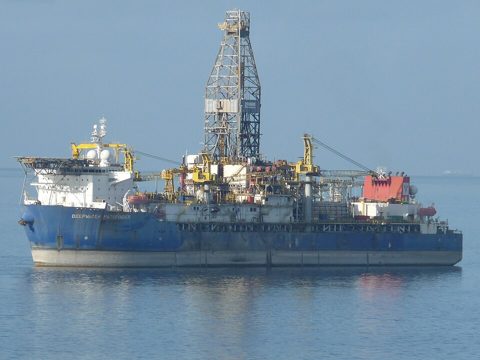

A deepwater drillship is two megaprojects welded together: a ~230 m dynamically positioned ship, and a complete drilling rig standing through a hole in its middle. Shipbuilders quote well over a million parts for the largest vessels afloat, and a seventh-generation drillship — hull plus drilling package — rolls up to roughly 1.2 million. As with every machine at this scale the count lives in the small stuff: 110 welded Hull Erection Blocks each carry thousands of weld joints, collar plates and clips in their Block Small Hardware line, and the Derrick alone is held together by some 95,000 high-strength Derrick Bolt Set.

The ship's job is to hold station over a wellhead in up to 12,000 ft of water — too deep for anchors — while drilling as far as 40,000 ft below the rotary table, and to keep doing it through weather, for contracts measured in years.

Hull and construction

The hull goes together the way all large ships now do: Hull Plates and Hull Stiffeners are welded into panels, panels into blocks, blocks into grand blocks that are pre-outfitted with Pipe Spools and cable trays before a crane lands them in the dock. Tripping and connection Structural Brackets tie every stiffener crossing together — there are over 23,000 of them across the hull. Amidships, the moonpool opens through the bottom; the derrick substructure spans it, and everything drilling-related passes through that hole.

Drilling package

The Drilling Package is dual-activity: two load paths in one Derrick, so the crew can build casing stands on the auxiliary side while the main side drills, cutting well construction time by roughly a quarter. The Drawworks spools the drill line from the Crown Block down to the Traveling Block, its AC motors regenerating into the bus when lowering. The Top Drive hangs below, rotating the string and circulating mud even while tripping pipe — the capability that retired the rotary table for most operations.

The Drill String itself is ~1,200 joints of S-135 Drill Pipe Joint racked in triple stands, with Drill Collars near the Drill Bit keeping the bottom of the string in compression and everything above it in tension.

Riser and BOP

Between ship and seabed hangs the Marine Riser System: up to 150 Riser Joints, each a 75 ft, 21 in Riser Main Tube flanked by five high-pressure Riser Auxiliary Lines (choke, kill, booster, hydraulics) and floated by syntactic-foam Riser Buoyancy Module modules so the ship is not carrying three kilometers of bare steel. Six Riser Tensioners hold it in near-constant tension while the Telescopic Joint strokes with every wave.

At the bottom sits the BOP Stack — the well's last line of defense. Four Ram Preventers (pipe, casing and blind-shear) and two Annular Preventers can close around, or cut through, whatever is in the bore at 15,000 psi rated pressure. Redundant blue and yellow BOP Control Pods command it over multiplexed umbilicals, the Wellhead Connector locks the ~400 t stack to the wellhead, and the moonpool BOP Gantry Crane runs the whole assembly through the splash zone.

Station keeping and power

There are no mooring lines. Six ~5.5 MW Azimuth Thrusters — each a steerable pod with a four-blade nickel-aluminum-bronze Propeller Blade set in a nozzle — hold the ship over the well under triple-redundant DP Control Computer control, cross-checked against five independent Position Reference Sensor feeds (DGNSS plus hydroacoustic transponders on the seabed). DP class 3 means no single failure, including the loss of an entire engine room or switchboard, may cause loss of position.

That requirement shapes the Diesel-Electric Power Plant: six ~7 MW Diesel Gensets feed a deliberately split bus through four HV Switchboard sections, and twelve megawatt-class Variable-Frequency Drives apportion power among thrusters, drawworks and mud pumps. Each genset is a five-figure parts machine in its own right — sixteen Engine Cylinder Units plus some 11,000 items of fuel, bearing and gasket hardware.

Mud plant and accommodation

Drilling fluid is the well's hydraulic working medium, and the Mud Plant is its factory: four 2,200 hp triplex Mud Pumps push mud down the string at up to 7,500 psi, six Shale Shakers strip the drilled cuttings from the returns, and a dozen Mud Agitators keep barite suspended in pits holding thousands of barrels.

Forward, the Accommodation Block block houses ~200 people working around the clock in 100 prefabricated Cabin Modules, with a Helideck for crew change and four Lifeboats giving SOLAS-mandated 200% capacity. Threading through every block is the Ship-Wide Cabling & Piping layer that the part count ultimately lives in: ~70,000 Cable Runs, 45,000 Connector terminations, 26,000 pipe spools, 8,000 Ship Valves and 40,000 Pipe Hangers — the unglamorous majority of 1.2 million parts.
