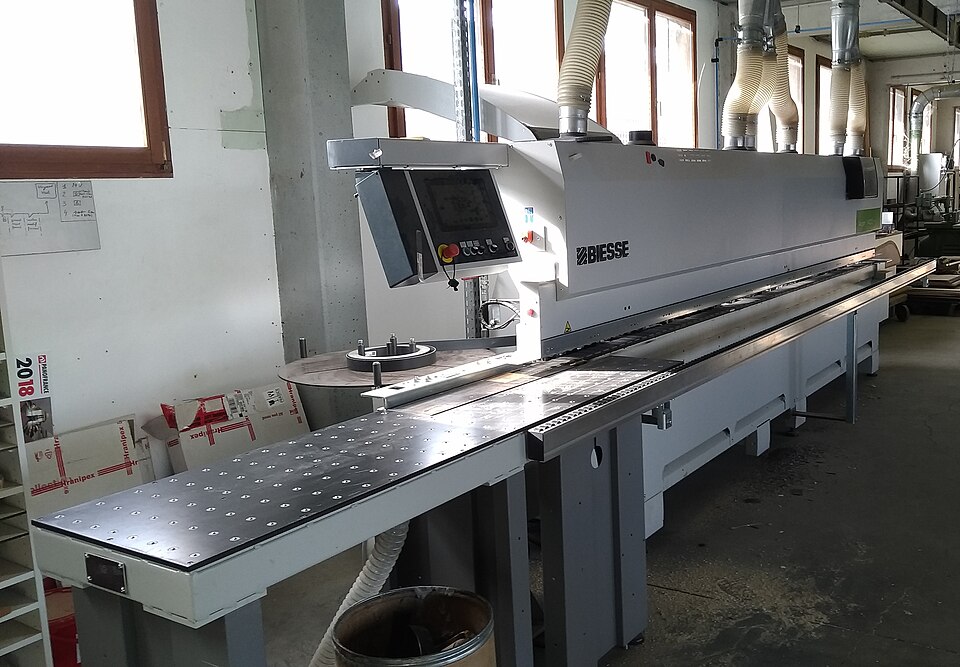

Edge Banding Machine Product

Overview

An edge bander is a woodworking machine that automatically applies thin veneer strips (edge banding) or solid wood edges to the exposed edges of panels, boards, or case goods. The machine maintains aesthetic continuity by matching edge material to panel faces, hiding particleboard or plywood substrate.

Modern edge banders operate as fully automatic production equipment, processing 200–400 panels per hour. A typical workflow: panel enters from infeed conveyor → edge strip feeds from hopper → heated glue roller applies adhesive → pressure roller seats the strip → end trim saw cuts flush at panel end → top and bottom flush-trim cutters remove overhanging material → buffing wheels finish the surface → outfeed conveyor delivers finished panel. The entire cycle completes in seconds.

Edge Banding Materials

Common Stock

PVC edge banding: Thermoplastic edge 0.3–3 mm thick, 19–50 mm wide. Colors and woodgrain patterns match panel faces. Supplied as coiled rolls up to 500 meters per roll. Softens at 60–80 °C, ideal for thermoset glues (EVA, PVC hot-melt).

Solid wood edges: Pre-milled solid hardwood strips (oak, maple, walnut) 0.8–2 mm thick × 20–50 mm wide. Higher cost but superior appearance for premium applications. Requires longer glue cure time (15–30 minutes vs. 5 minutes for PVC).

Particle-filled edges: PVC or polyurethane strips reinforced with wood flour—bridges edge chipping and improves dimensional stability.

Adhesives

EVA hot-melt: Melting point 150–180 °C. Cooled to gel at ~20 °C, sets in 5–10 minutes. Standard for high-speed production; minimal equipment cost.

PVC plastisol: Viscous liquid, applied heated 160–190 °C. Fuses chemically to PVC strip and substrate. Superior edge durability and moisture resistance.

Polyurethane (PU) adhesive: Two-component reactive glue (resin + hardener). Higher initial cost; extends open time 30–60 minutes. Used for furniture and specialty work.

Machine Architecture

[[edge-bander-feed-system|Infeed Magazine]]

A gravity-fed hopper stores coiled edge strip. Two pinch rollers, driven by a servo motor, feed the strip to the glue applicator at controlled velocity. Servo control synchronizes feed rate with conveyor speed, preventing wrinkled or slack edges.

Magazine capacity: 100–300 meter rolls depending on strip gauge.

[[edge-bander-glue-system|Heated Glue Applicator]]

Electric heating elements (typically 1.5 kW) maintain the glue pot at 180–220 °C. A rubber roller submerges in molten adhesive and applies a thin, uniform film (0.1–0.2 mm) to the edge strip. Thermostat regulation holds temperature within ±5 °C to avoid adhesive scorching.

[[edge-bander-pressure-roller|Nip Roller Assembly]]

A pneumatically actuated pressure roller clamps the hot strip against the panel edge, initiating adhesion. Pressure 500–1000 N (adjustable) ensures intimate contact while avoiding surface marking.

[[edge-bander-trim-system|Trim Head]]

End trim saw: Cross-cutting blade (100 mm diameter HSS or carbide) at the panel end, removing excess edge material flush with panel end grain.

Flush-trim cutters: Two router spindles (top and bottom) with piloted flush-trim bits (carbide with bearing). Each bit removes 0.5–1 mm overhanging material in a single pass.

Buffing wheels: Felt wheels (top and bottom) smooth the edge surface, removing small irregularities and loose adhesive threads.

[[edge-bander-conveyor|Conveyor Drive]]

A main conveyor chain, driven by a 2–3 kW motor via gearbox, propels the panels through all stations at variable speed (5–25 m/min). Contact pressure is adjustable to avoid marking delicate veneers.

Operating Procedure

1. Setup: Load coiled edge strip into magazine; set glue temperature to 190 °C and allow 15 minutes warmup.
2. Adjustment: Position panel width stop and trim saw blade height; verify pressure roller force.
3. Production run: Operator feeds panels one at a time. Infrared sensors detect panel position and trigger synchronized feed and glue application.
4. In-process: Glue cooling phase (5 minutes nominal) stabilizes adhesion before final inspection.
5. Offload: Finished panels stack on outfeed roller or conveyor.

Maintenance

Daily:

• Empty glue pot residue; inspect nozzle for clogs.
• Check conveyor belt tension and blade sharpness.
• Clean buffing wheels of adhesive buildup.

Weekly:

• Recalibrate pressure roller force (pneumatic regulator check).
• Verify glue temperature stability (thermostat drift testing).

Monthly:

• Replace heating element if staining or color-change observed.
• Inspect pressure seal on glue pot; replace if leaking.
• Sharpen or replace trim saws and router bits.

Selection Criteria

Budget-oriented: Single-pass flush-trim design; 50–100 panels/hour. Suitable for job shops and prototype work.

Production high-volume: Dual-pass buffing, automatic edge detection, panel width sensor. 300–400 panels/hour, minimal labor.

Premium furniture: Solid-wood edge support, longer dwell time, low-pressure feed. Best for exotic veneers and inlays.

Limitations

Edge banders struggle with tapered or highly curved panel edges (e.g., round-overs). Specialty edge routers handle curved profiles independently. Narrow strips (<15 mm) sometimes skew in feed mechanism. Very thick edges (>3 mm) exceed typical flush-trim cutter reach and require manual finishing.
