Emergency Vehicle Light Bar Product

Overview

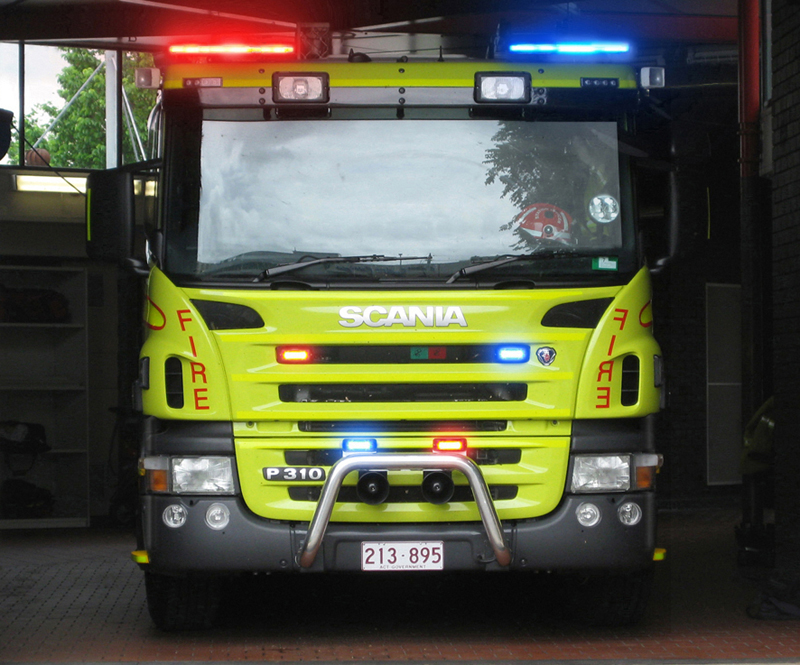

An emergency vehicle light bar is the primary visual warning device on police, fire, EMS, and roadwork vehicles: a roof-spanning array of flashing colored lights whose job is to win a driver's attention at distances of 300 m and more, day and night, from any approach angle. Modern bars are entirely LED — the rotating halogen-and-mirror bars they replaced drew ten times the current, needed motor maintenance, and produced a fraction of the intensity. A current full-size bar meets SAE J845 Class 1 photometrics (the highest tier, required of authority vehicles in most US states) while drawing 10–25 A at 12 V with every pattern running.

Light generation

Warning output comes from the LED Warning Modules array: six Front LED Module heads, six Rear LED Module heads, and four Corner LED Module units that fill the diagonal zones so coverage is a true 360°. Each head is a metal-core LED Module PCB carrying 6–12 high-flux dies behind a Reflector Optic — a total-internal-reflection collimator that shapes the raw Lambertian LED output into the beam warning photometry wants: wide horizontally (drivers approach from anywhere) and tight vertically (light thrown into the sky or onto the road surface is wasted). Color is produced at the die in most modern bars, with clear Lens Section outside; colored lenses survive as a styling and fleet-spec option. Internal Optical Divider keep a red module's flash from bleeding through the adjacent blue section.

The Alley and Takedown Lights group is steady-burn white: Takedown Light floods facing forward to illuminate a stopped vehicle's interior (and mask the approaching officer behind glare), and end-firing Alley Light spots that sweep building faces and side streets as the vehicle drives past.

Control

Pattern timing lives in the Flasher Controller. Its Microcontroller sequences every module through stored flash patterns — alternating, quad-flash, random-phase, and a rear amber traffic-advisor sweep that directs traffic left or right past a blocked lane — switching the heads through Power MOSFET outputs at 60–240 flashes per minute. SAE J845 and NFPA 1901 constrain the choices: minimum effective intensity per zone, and flash rates kept in the 1–4 Hz band, above which warning value falls and photosensitive-seizure risk rises.

A CAN Bus Transceiver puts the bar on a serial bus, so a single Control Head keypad in the cab commands bar, siren, and auxiliary lighting over one thin cable instead of a copper bundle per function. The Ambient Light Sensor photodiode drops output to a low-intensity night pattern — full Class 1 output that is conspicuous at noon is blinding to oncoming traffic at 2 a.m., and several state codes now require dimming. On the parked fireground, NFPA 1901 further requires switching off forward white and reducing flash so working crews are not strobed.

Packaging and mounting

Mechanically the bar is the Housing and Lenses: an aluminum Base Extrusion that is chassis, wire-way, and heatsink in one piece, closed by polycarbonate lens sections, End Cap, and a continuous Gasket Set to IP66 — the bar lives through pressure washes, road salt, and 65 °C roof-top summers. LED junction temperature is the life-limiting variable; the extrusion's fin area is what backs the >50,000-hour module rating.

The Mounting System system offers two attachment modes: Gutter Strap hooks clamping the door-frame channel for no-drill installs, or Permanent Mount Stud through-roof fixings with backing plates for fleet vehicles, where the joint must hold the bar's drag load at highway speed plus a 130 km/h pursuit margin. Adjustable Mounting Foot castings span the roof crown, sealed by Foot Gasket pads. The Cable Harness enters the cab through a sealed Roof Pass-through Grommet, fused at the battery by the Fuse Block.

Siren integration

Lights and audio are one system operationally, and the Siren Interface makes them one electrically. The control head selects warning levels and siren tones together; the Siren Relay Box escalates the light pattern automatically when the siren goes active, and the Horn Ring Tap lets the driver cycle tones — wail, yelp, phaser, airhorn — from the steering-wheel horn button without leaving the wheel. The 100 W Speaker driver mounts behind the grille rather than in the bar itself on most modern installations, but its amplifier shares the bar's control bus. Typical urban practice pairs full bar output with siren for intersection clearance, then drops to rear-facing blocking patterns once parked at the scene.
