Overview

The sky appears to rotate once every 23 h 56 min around the celestial pole. An equatorial mount cancels that rotation mechanically: one axis — right ascension (RA) — is aimed parallel to Earth's axis, and turning it at one revolution per sidereal day holds any star stationary in the field. The second axis, declination (DEC), is perpendicular and points the telescope north or south of the celestial equator. An altazimuth mount can also track with two motors, but the image rotates in the field; the equatorial's single-axis tracking with zero field rotation is why every long-exposure astrophotography rig sits on one.

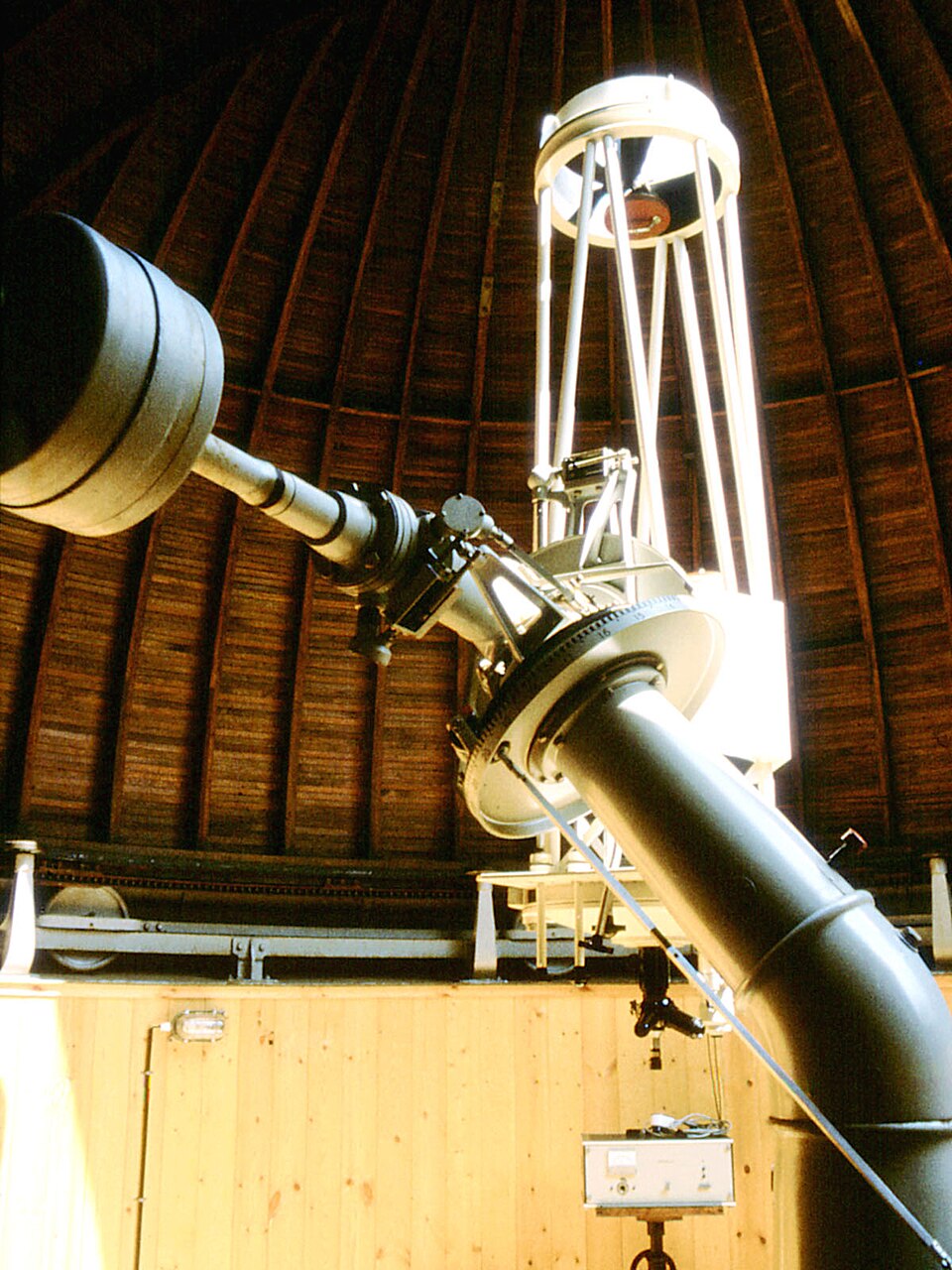

The German equatorial layout puts the telescope in the Telescope Saddle on one end of the Declination Axis and the Counterweight System on the other, with the whole assembly pivoting on the polar-aligned Right-Ascension Axis. Balance matters because the drive train is deliberately weak: a balanced 20 kg payload needs only friction-level torque, so the Counterweight discs are slid along the Counterweight Shaft until the telescope stays put with the Axis Clutch loose on both axes.

The worm drive

Tracking precision lives in the worm gear. A hardened-steel Worm and Carrier meshes with a bronze Worm Wheel of typically 144 teeth, so one worm revolution moves the sky 2.5° and the worm itself turns once every ~479 seconds at sidereal rate. Any eccentricity or tooth error in the worm repeats with that period as periodic error (PE) — the telescope drifting a few arcseconds ahead and behind the sky in a roughly sinusoidal pattern, ±5–20″ on mid-range mounts. Because it is periodic, it is correctable: permanent periodic error correction (PEC) replays a recorded correction curve, and autoguiding closes the loop entirely — a small guide camera measures a star's drift a few times per second and sends sub-arcsecond nudges through the ST-4 Guide Port, holding RMS error under an arcsecond.

The worm rides in a sprung carrier whose mesh against the wheel is the critical adjustment: too loose gives backlash (the dead zone when reversing direction, which ruins DEC guiding), too tight binds and stalls. The axes themselves run on preloaded Ball Bearing sets so the payload has no radial play.

Motors and control

Modern mounts drive each worm with a hybrid Stepper Motor through a Drive Belt reduction, replacing the gear trains of older designs whose own tooth errors added non-periodic noise. Microstepping at up to 1/128 through the Stepper Driver IC pair makes sidereal-rate motion — about 15 arcseconds of sky per second — effectively continuous, and the same motors slew at up to 4°/s for GoTo.

The GoTo Controller holds the pointing model. After the user centres two or three alignment stars, the firmware solves for polar misalignment, axis non-orthogonality, and cone error, then converts catalogue coordinates to corrected axis angles for any of tens of thousands of objects in the Hand Controller database. The Wi-Fi Module exposes the same control to planetarium and capture software, which in imaging sessions runs the whole night unattended: slew, plate-solve, centre, guide, expose.

Polar alignment

All of this assumes the RA axis actually points at the celestial pole. The Polar Alignment Scope sits inside the hollow RA Shaft: Polaris is not at the pole but circles it at about 0.65°, so the Alignment Reticle marks where on that circle Polaris must be placed for the current date and time, with the Reticle Illuminator lighting the etching in dim red. The user steers the axis using the opposed Altitude Bolt Pair and Azimuth Bolt Pair on the Alt-Azimuth Base — never by moving the tripod. A polar-scope alignment is good to a few arcminutes, enough for several-minute exposures; camera-assisted refinement gets under an arcminute. Residual misalignment shows up as slow declination drift and, in long exposures, field rotation around the guide star.

Capacity and limits

Mounts are rated by payload, and the practical imaging limit is roughly half to two-thirds of the advertised figure, because guiding at the arcsecond level exposes flexure and wind loading that visual use never shows. One inherent quirk of the German design is the meridian flip: as an object tracks past due south, the counterweight shaft rises and the tube would eventually strike the tripod, so the mount must flip — rotating both axes 180° and re-acquiring the target on the other side of the pier — which imaging software now sequences automatically. Heavier observatory mounts add direct-drive motors and high-resolution Encoder feedback to eliminate the worm altogether, but the belt-driven worm equatorial remains the standard instrument under amateur astrophotography.
