Theatrical Followspot Product

Overview

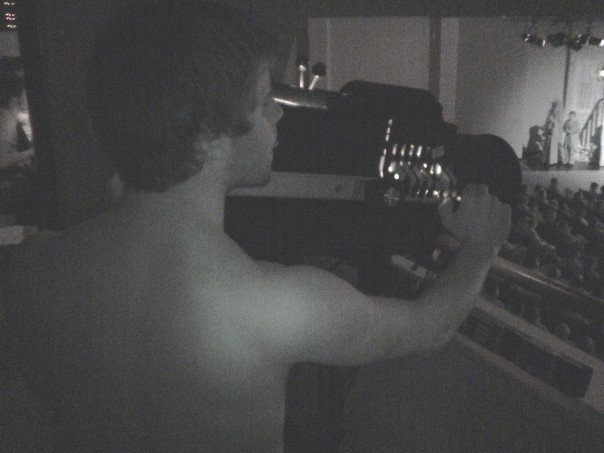

The followspot is the one stage light still aimed by a human in real time: an operator stands behind a long barrel at the back of the house or up in a spot booth and keeps a hard circle of light locked on a moving performer. Console-driven moving heads can be programmed, but they cannot anticipate where a singer will wander, so every arena tour, opera house, and Broadway theater still crews followspots. The instrument is therefore designed as much around the operator's hands as around its optics — every beam parameter has a lever within finger reach of the aiming handles.

The machine divides into the Light Source, the Optical Train that shapes the beam, the Color Boomerang ahead of the lens, the Cooling System, the Chassis the operator holds, the Yoke & Stand it swings on, and the Electrical System system.

Source

For decades the followspot source was an arc: carbon arcs into the 1960s, then xenon and metal-halide discharge lamps of 575–1,200 W. Discharge lamps cannot be dimmed electrically without color shift, so intensity came from a mechanical douser. Current instruments use a LED Engine — a white COB array of 300–600 W producing 15,000–30,000 lumens at 6,000–7,500 K — which dims electronically from the Dimmer Lever with no color shift, strikes instantly, and removes the lamp-replacement cost that made xenon spots expensive to run. A Collector Reflector gathers the source into the gate plane, and a Hot Mirror strips infrared out of the beam before it reaches the iris blades and color media; in a kilowatt-class beam, unfiltered IR bleaches a polyester gel in hours.

The optical train

A followspot is optically an imaging projector: hardware at the gate plane is imaged onto the stage by the lens train, so whatever shape the gate hardware makes, the beam carries. Three devices live there. The Iris Diaphragm sizes the spot continuously from a wide wash down to a head-only pin spot — the operator works it constantly as throw distance changes with the performer's position. The Chopper Shutter is a two-blade guillotine that kills the beam instantly, faster than any fade, for snap blackouts and for hiding the beam between pickups. The Framing Shutters flatten the top and bottom of the circle, keeping light off the proscenium and the stage floor.

Downstream, the Zoom Lens Group sets beam angle over a 12–22° range (long-throw arena models reach 5°), and the Focus Lens sets edge quality from a razor-sharp circle to a soft blend that forgives small tracking errors. All cells ride the Lens Rails to stay centered through their travel, and a Gobo Slot at the gate accepts patterns. Peak intensities exceed 250,000 candela at narrow zoom — what it takes to read clearly on a performer 60 meters away under full stage lighting.

The boomerang

Color changes mid-show come from the boomerang, a mechanism essentially unchanged for a century because it works. Six Color Frames hinge ahead of the objective, each loaded with Color Media or dichroic glass plus one Frost Frame of diffusion. Each frame has a Boomerang Levers finger lever at the operator position, and the Self-Cancel Linkage kicks the previous frame out as a new one drops, so a color swap is one motion that never takes the operator's hands off the instrument. Frames can also be stacked — a color plus frost is the standard soft-edged ballad look.

Operation

Followspot work is a physical skill. The Balance Slide trims the barrel to neutral on the Yoke so it holds any attitude hands-off; the Friction Brakes are set to each operator's preferred drag, light enough for smooth tracking and firm enough to park. The operator acquires the performer through the Aiming Sight with the chopper closed, opens on cue, and then runs the whole show from the Operator Handles — panning and tilting from the shoulders, working iris, chopper, dimmer, and boomerang with fingers. Cues arrive by headset from the stage manager: pickup positions, sizes ("head and shoulders"), colors by frame number, and fade counts.

The Tripod Base and Stand Column put the handles at standing height and keep the 20–60 kg instrument stable at full tilt, with Wheel Assembly casters for load-in. Modern units add a DMX Interface: the console presets intensity ceilings, color temperature, and fan behavior while the human keeps the one job automation has not taken — knowing where the performer is going before they go there. The Temperature Sensors and heat-pipe cooling hold full output silently enough for a quiet theater, with washable Air Filters against the haze residue that coats everything in a touring rig.
