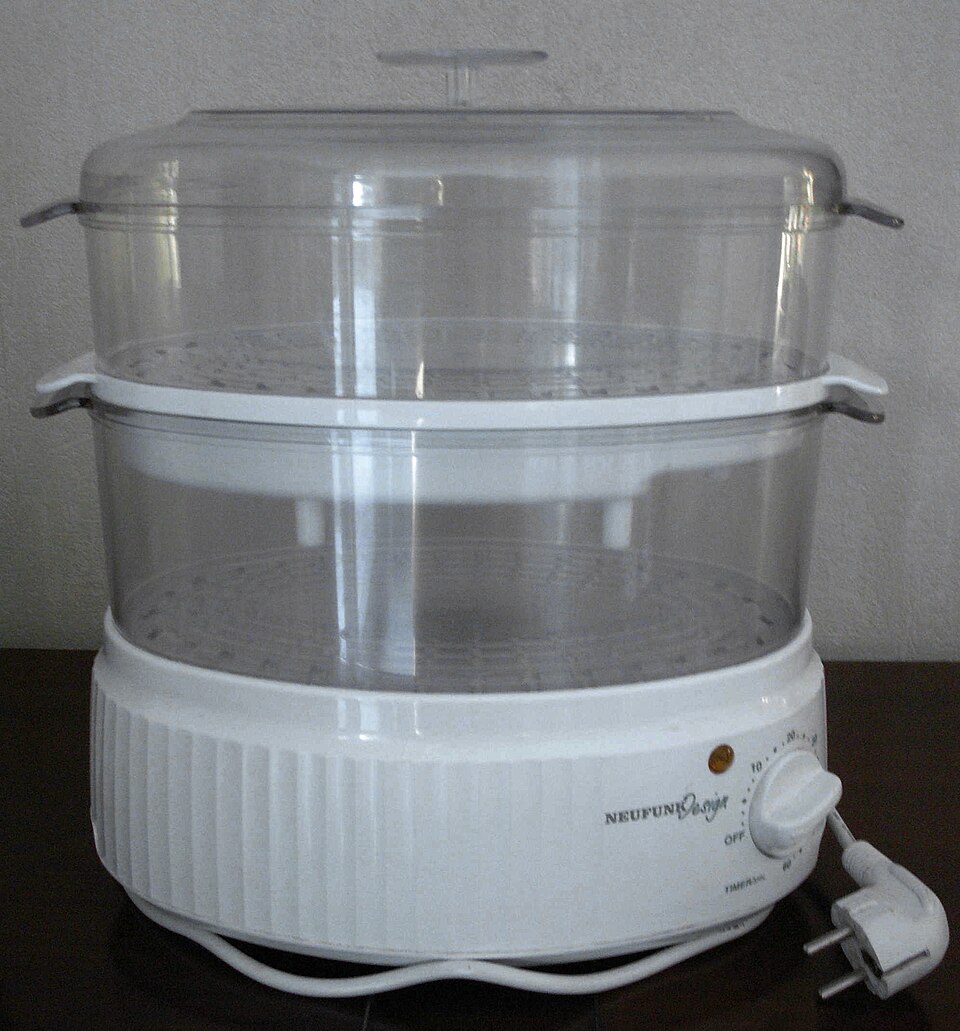

Electric Food Steamer

Overview

An electric food steamer is a compact countertop appliance that uses steam to cook vegetables, rice, eggs, dumplings, and other foods in a healthy, oil-free manner. The machine stacks two or three perforated Tiered Basket Set trays vertically, allowing the user to cook different foods simultaneously at different layers.

Water is poured into a Water Reservoir & Boiler at the base, where a Heating Element boils it. The resulting steam rises through a central vent column and distributes across each stacked Lower Steaming Tray, Middle Steaming Tray, and Upper Steaming Tray, cooking food by moist heat transfer. Condensation drips back into the reservoir.

A simple Control Panel with a Main Power Switch and a Timer Assembly manage operation. The user fills the reservoir, arranges food on the trays, sets the timer, and the steamer operates unattended until the alarm sounds.

The design is thermally simple: no pressurization, no complex logic, just electricity heating water to 100°C and steam doing the work.

How it works

Mains power (220–240 V, 50 Hz) flows through the Power Cord and Mains Plug into the Control Panel. The user flips the Main Power Switch, and current is routed to the Heating Element, a nichrome coil or wire resistor submerged in the water of the Boiler Chamber.

The heating element heats rapidly, raising the water temperature from ambient to 100°C within 5–10 minutes. Once water reaches boiling point, steam is generated continuously as long as power flows. This steam rises through a hollow column (the central vent passage) in the Outer Housing and enters the Basket Support Ring ring that supports the stacked baskets.

The perforated design of each basket, typically 3–5 mm diameter holes, allows steam to penetrate uniformly from below and around the sides. Food placed on the trays receives direct contact with saturated steam at 100°C, which rapidly transfers latent heat and cooks the food. Vegetables soften, rice grains absorb moisture and expand, eggs coddle, and dumplings steam through.

A Water Level Thermostat sits in the boiler chamber and monitors water level. If the user forgets to refill and the water level drops too far, the thermostat signal can trigger an automatic Heating Element cutoff (on some models), preventing the element from dry-running and burning out.

The Timer Assembly is usually mechanical: a Adjustable Timer Dial on the Control Panel is turned to a desired duration (0–60 minutes), and an internal spring-driven clockwork counts down. When the timer expires, a ratchet mechanism releases a Alert Bell or Buzzer or piezo buzzer, alerting the user. Some modern steamers include electronic timers (an MCU on a PCB with a simple LCD readout), but the concept is identical.

Throughout cooking, condensed steam (water vapor) that hits the Top Lid with Vent and Outer Housing walls drips downward and collects back in the Water Reservoir Tank, reducing water loss. This recycling means the steamer can operate for 30–40 minutes on a single fill without the heating element running dry.

The Transparent Viewing Window (transparent plastic) in the Outer Housing allows users to peek at food without opening the lids, preserving steam and reducing cooking time. The Rubber Anti-Slip Foot (rubber, non-slip) keep the unit stable on wet or tilted counters.

When the user removes the stacked baskets (using Basket Support Ring handles), they can separate the tiers and serve the food. Each basket is removable, so cleanup is straightforward: rinse baskets and the housing, empty the reservoir, and air-dry.

Safety is passive: the plastic shell does not get dangerously hot because it is insulated from the boiler by air gaps. Handles on the baskets and the removable Top Lid with Vent are designed to stay cool. A Thermal Fuse inside the heating element circuit provides a hard limit: if temperature ever exceeds 110°C at the element (indicating low water), the fuse opens and halts heating. This prevents damage if a user restarts the steamer after it has run dry.
