Overview

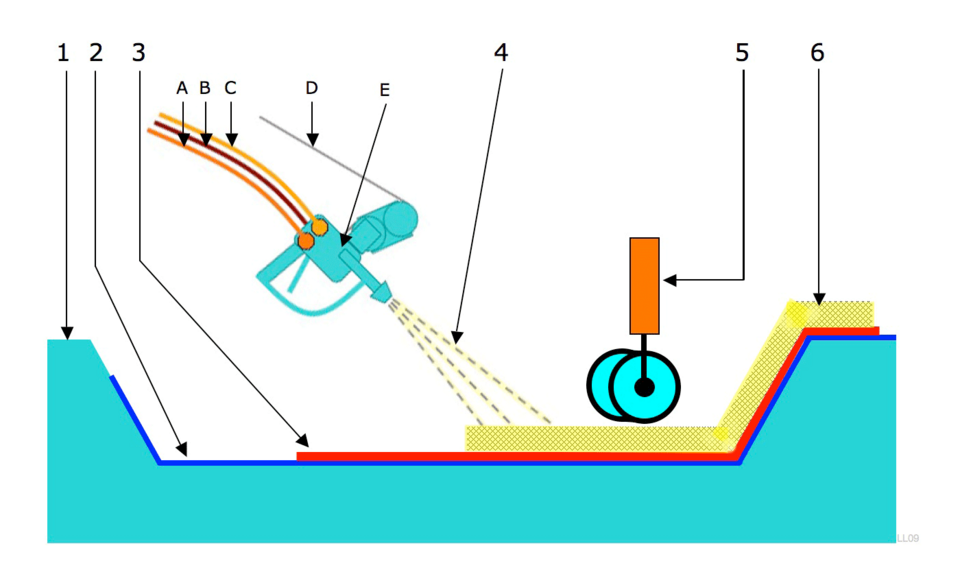

A gelcoat spray booth is a dedicated, ventilated work station for applying a protective and decorative resin-rich surface layer (gelcoat) to composite parts before or during layup. Gelcoat is a pigmented, thixotropic polyester or epoxy, sprayed as a thin film (0.5–1.5 mm) on the mold surface. It provides:

1. UV and chemical protection: Resin matrix absorbs UV light, causing yellowing, chalking, and strength loss over years. Gelcoat UV absorbers (titanium dioxide, carbon black, UV stabilizers) shield the composite underneath.
2. Aesthetic finish: Colored gelcoat (white, blue, red, custom tints) provides the visible surface. Superior gloss and color consistency vs. gray composite fiber.
3. Cosmetic repair: Minor surface scratches and cracks can be patched post-cure with matching gelcoat without affecting structural integrity.
4. Water barrier: Gelcoat has lower water permeability than structural laminate, slowing osmotic blistering (marine hulls critical issue).

Gelcoat is standard in marine (boats, yachts), recreation (RVs, hot tubs), automotive (body panels, trim), and architectural composites. A typical marine hull requires 1–2 mm gelcoat (front-side only, aesthetic), contributing ~5–10% of finished part weight.

The booth provides ventilation containment for styrene vapor (polyester gelcoat releases 10–20% styrene by weight during spray and cure), required by occupational health regulations and environmental compliance.

Booth Design & Ventilation

The Booth Enclosure is a modest but robust structure (typically 3×3×2.5 m for small/medium parts, 5×5×3 m for large boat hulls). Walls and roof are removable or hinged panels for flexibility and maintenance access.

Ventilation principle: The Extraction Ventilation (2–10 kW centrifugal blower) draws air from the booth at a high volumetric rate (5000–20,000 CFM = 2.4–9.4 m³/s), creating negative pressure (−5 to −25 Pa, or −50 to −250 N/m²) inside. This negative pressure:

1. Entrains overspray: Any atomized resin droplets or dry particles generated during spraying are pulled toward exhaust vents (typically at back wall, near floor).
2. Confines odor and vapor: Styrene vapor is heavier than air and naturally sinks; negative pressure accelerates it toward exhaust.
3. Protects operator: At −10 Pa, air flows toward the operator's face at ~0.5 m/s (gentle but noticeable breeze), preventing inhalation of spray cloud.

The Extraction Ventilation motor speed is often variable (via VFD or belt adjustment) to optimize flow rate based on part size and spray intensity. Too much exhaust (>15000 CFM) wastes energy; too little (<5000 CFM) allows overspray to escape and contaminate the shop.

Fresh Air Supply & Filtration

As the extraction fan pulls air out, the Fresh Air Supply & Filter replaceable filter element supplies makeup air via an Intake Louver intake on the booth wall or roof. A properly balanced booth has:

Intake air flow ≈ Exhaust air flow (steady-state mass conservation).

If intake is blocked or insufficient, the booth becomes over-evacuated (−50+ Pa), creating noise and excessive pull on the spray gun hose (resin flow may stall). If exhaust is blocked, positive pressure develops, pushing spray and vapors out through gaps and operator access.

The Filter Element (G4 or F7 pleated paper/synthetic, MERV 13–14) filters dust and pollen from incoming shop air, preventing contamination of the gelcoat surface. A clogged filter increases intake resistance; operators should replace filters every 200–500 operating hours.

Spray Equipment

The Spray Equipment & Gun is typically HVLP (High Volume Low Pressure) or airless electric:

HVLP Spray System:

• Principle: Air compressor (80–100 PSI) drives a Spray Pump diaphragm pump (0.3–1.5 GPM output, pressurizing gelcoat to 2–3 bar).
• Spray gun: Spray Gun nozzle (0.8–1.4 mm orifice) meters gelcoat flow; atomizing air (4–6 PSI from the same compressor) in the air cap breaks the stream into a fine mist (80–120 micron droplets).
• Advantages: Low material velocity (good wetting), minimal overspray (high transfer efficiency 80–90%), quiet operation.
• Disadvantages: Requires air compressor on-site (2–3 kW), slower production rate than airless.

Airless Electric System:

• Principle: Electric Pump Motor (1–2 kW AC or DC) drives a positive-displacement Spray Pump piston pump pressurizing gelcoat to 100–200 bar.
• Spray gun: Gelcoat is atomized purely by pressure at the orifice (no atomizing air), creating a high-velocity cone spray.
• Advantages: Fast application (1.5–3 L/min typical), no air compressor needed, independent of shop air quality.
• Disadvantages: Higher overspray (20–30% loss), more powerful recoil on operator hand, more noise, requires electrical power to pump.

Typical choice for composite: HVLP is preferred (better control, less waste, quieter), especially for small boat builders and custom part shops. Airless is used in high-volume manufacturing (automotive panels, bathtubs) where speed is prioritized.

Turntable & Application Technique

The Rotating Turntable rotates the part at adjustable speed (0.5–10 RPM, Turntable Motor with Gearbox), allowing the operator to spray a rotating surface without repositioning the part. This is critical for uniform coverage and avoiding overspray pooling on flat surfaces.

Application technique (boat hull example):

1. Part placed on turntable; Turntable Motor activated at 2–5 RPM.
2. Operator holds spray gun at 250–300 mm distance, perpendicular to surface.
3. Trigger activated; gelcoat sprayed in overlapping passes (each pass offset by 50 mm from the previous).
4. As part rotates and operator traverses up the hull, complete coverage is achieved in 3–5 passes.
5. Typical spray time for a 5 m boat hull: 30–60 minutes.

Spray gun technique:

• Distance: 25–30 cm is typical HVLP distance; airless requires 20–25 cm. Too close = puddles and sags; too far = overspray and dry coating.
• Angle: 90° perpendicular to surface is best; angled spray causes resin pooling on downward-sloping surfaces.
• Speed: Constant trigger pressure and traverse speed maintain uniform film thickness.

Gelcoat Properties & Chemistry

Gelcoat is typically a heavily filled polyester or vinyl-ester resin:

• Binder: Unsaturated polyester (most common, cheapest) or vinyl-ester (better impact and water resistance) or epoxy (superior chemical resistance).
• Filler: Calcium carbonate (CaCO₃), talc, or mica (40–50 wt% typical), providing thixotropy (prevents running on vertical surfaces) and reducing cost.
• Pigments: Titanium dioxide (white, UV blocking), iron oxides (reds, yellows, browns), carbon black (black, UV absorbing).
• UV stabilizers: HALS (hindered amine light stabilizers), UV absorbers (benzotriazoles), reducing yellowing and strength loss over 20–50 years.
• Additives: Anti-sag agents (rheological modifiers), flow-leveling agents, anti-static agents, mold release.

Gelcoat is catalyzed (e.g., 1–3% MEKP initiator for polyester) before spray, with gelation time controlled by catalyst concentration and ambient temperature. Typical pot life (spray-ready window): 4–8 hours at room temperature.

Booth Spill Management & Safety

The Spill Containment & Drain floor slopes toward a Floor Drain sump (50–100 mm deep), where gelcoat overspray and cleanup solvent collect. The Waste Tank (100–200 L polyethylene tank) catches this liquid. Solids (dried gelcoat particles) settle at the tank bottom, and the liquid layer is periodically pumped out via Disposal Valve for disposal (hazardous waste, requiring environmental compliance).

PPE & safety:

• Respiratory protection: Supplied air respirator or cartridge-type respirator (organic vapor cartridge) protecting against styrene and particulate.
• Eye protection: Safety glasses or chemical splash goggles.
• Skin protection: Nitrile or neoprene gloves (styrene penetrates latex), long sleeves.
• Hearing protection: HVLP and airless pumps generate 85–95 dB; ear plugs or earmuffs recommended.

Ventilation interlocks (Interlock Switch) ensure the extraction fan runs for 30 seconds before spray equipment activates, and continues for 2–3 minutes after spray stops, removing residual vapors.

Quality & Appearance

Good gelcoat finish:

• Gloss: High gloss (>80 GU gloss units) indicating smooth, well-wetted surface.
• Color uniformity: Consistent pigment distribution, no runs or sags.
• Thickness: 0.8–1.2 mm, measured by dry film thickness gauge (target 1.0 mm ±0.2 mm).
• Surface defects: Minimal (orange peel = too much atomizing air, poor wetting; runs = too thick, too slow turntable).

Common defects:

• Cratering: Small holes in the gel surface, caused by air bubbles or surface-active contaminants (dirt, moisture).
• Wrinkling: Surface buckles if gelcoat cures too fast (exothermic, temperature rises, outer layer sets before inner layer).
• Yellowing: UV exposure during spray or storage; use UV-stabilized gelcoat and cover between spray passes.
• Water staining: Salt or mineral deposits on dried gelcoat; wipe with distilled water immediately post-spray.

Typical Booth Operation Scenario

Marine boat builder applying gelcoat to a 7 m sailboat hull:

1. Preparation (30 min): Mold cleaned with release agent wax. Overhead Lights and Side Lights activated. Extraction fan pre-run at 15 min before spray (purge volatile air).
2. Gelcoat mix (15 min): 50 L polyester gelcoat + catalyst (1.5% MEKP by volume) mixed in pump tank, strain-filtered to remove clumps.
3. Spray application (45 min): Rotating Turntable rotates at 3 RPM. Operator sprays overlapping passes, starting at the keel (lowest point) and working upward, completing all surface in 3–4 passes. Spray gun remains at constant 25 cm distance.
4. Initial cure (15 min): Extraction fan continues running post-spray. Gelcoat surface becomes tacky (gel state, not fully cured).
5. Dry-off (2–4 hours): Part remains in booth with extraction running at lower speed to remove solvent vapors, preventing cracking.
6. Full cure (12–24 hours): Part removed from booth, stacked in a warm, dry area (20°C+, <70% humidity) for complete polymerization.
7. Secondary layup (next day): Once gelcoat is hard (pencil hardness test), structural composite fiber/resin layers are applied, bonding to the cured gelcoat surface.

Total spray booth time: ~1 hour per boat hull. With multiple boats in rotation, a single booth can handle 5–10 hulls per day.

Economics & Maintenance

Capital cost: $30k–100k for a mid-size booth (3×3 m) with HVLP spray equipment and controls.

Operating cost per part:

• Gelcoat material: $10–40 (depends on part area and pigment cost).
• Spray booth energy (fan): $5–10 per hour of booth time.
• Labor (operator): 1 operator, $20–25/hour, ~30–60 min per part = $10–25/part.

Maintenance:

• Fan filters: Replace every 200–500 hours, ~$50–100 per set.
• Spray gun seals and nozzles: Annual replacement, ~$500.
• Booth structural repair: Depends on wear; typical 3–5 year recoating of panels.

Modern composite manufacturers use dedicated gelcoat booths for high-volume production (automotive), with automated spray robots replacing hand-spraying (faster, more uniform, reduced operator exposure).
