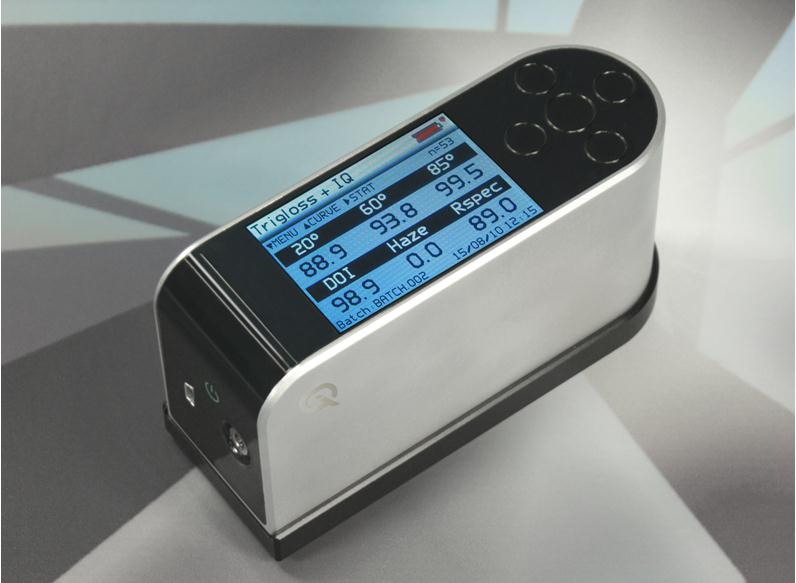

Gloss Meter

Product

Overview

A gloss meter quantifies how shiny a surface is by measuring the fraction of light reflected at a specific angle. Paints, coatings, ceramics, and printed materials all vary in gloss from matte (dull) to high-gloss (mirror-like), and this property affects aesthetics and performance. A car paint that's too dull looks cheap; printed labels that are too glossy are hard to read under store lights. Manufacturers measure gloss to ensure products match specifications and customer expectations.

The device shines a precisely collimated light beam at a surface from a fixed angle (typically 45° for general-purpose use, or 20° and 60° for special cases) and measures how much light bounces back into a detector positioned at the reflection angle. The ratio of reflected to incident light defines gloss in units of GU (gloss units), with 0 GU being perfectly matte and 100 GU being a perfect mirror.

The Light Source Array is a pulsed LED to minimize heat and power draw. The Detector Array is a photodiode at the reflection angle. The Signal Processor computes the ratio and calibrates it against a Calibration Block reference standard.

How it works

The three most common angles, 20°, 45°, and 60°, each serve a purpose under ISO 2813 and ASTM D523:

  • 60° angle: Used for high-gloss surfaces (auto paints, polished granite). At 60°, even small roughness causes scattering, so the 60° reading is most sensitive to surface finish.
  • 45° angle: General-purpose geometry; suitable for most paints, coatings, and ceramics.
  • 20° angle: For very high-gloss surfaces (lacquers, varnishes, mirror finishes), where 45° would saturate.

The Light Source Array at one selected angle (say, 45°) emits a pulse of light from a collimated LED 45° Module through an aperture that limits the beam to a ~10 mm spot. The light bounces off the sample surface. Ideally, a perfect mirror would reflect 100% of the light at the mirror angle. A matte surface scatters light in all directions, so little reaches the detector at 45°.

The Photodiode 45° at the reflection angle captures the reflected photons and converts them to a photocurrent. A Transimpedance Amplifier amplifier converts this current to a voltage. The Signal Processor digitizes the voltage and divides it by a reference measurement (light bounced off a calibrated black glass or ceramic block) to compute the gloss ratio in GU.

Calibration is critical. The Calibration Block is a certified reference with a known gloss value (often 0 GU for matte, 50 GU for medium, or 100 GU for high gloss, depending on the meter grade). Before use, the operator taps the meter against this block; the processor measures the reflected signal and stores it. All subsequent samples are then scaled against this baseline, ensuring that thermal drift or LED aging doesn't throw off readings.

Different materials show different gloss-angle dependencies. Smooth automobile lacquer has high gloss at all angles (45°, 60°). A fabric with directional weave might show higher gloss when the light hits along the threads than across them. A fine-grain granite looks slightly glossier at 20° than 60°. The three-angle measurement set allows users to distinguish between surface roughness (changes gloss at all angles) and directional effects (changes with angle).

Typical workflow: paint a surface, let it dry, press the meter's contact base onto the sample, and press the button. The meter flashes the LED, measures the return light, and displays the GU value. Five or ten measurements on different spots give a representative gloss value for the batch. If the average is outside the specification (say, 35–42 GU), the paint formula is adjusted and the batch is retested.

Consumer products like nail polish, lipstick, and glazed tiles are also checked with gloss meters to ensure finish uniformity and appeal. Industrial manufacturers use them in quality-control loops, sometimes inline on production machinery.

Gloss Meter parts and their functions

9 top-level parts · 242 parts in total · full bill of materials below
Gloss Meter parts diagram: 1 light source array, 2 detector array, 3 optics module, 4 signal processor, 5 display module, 6 calibration block, 7 battery pack, 8 handheld housing, 9 fastener set. 242 parts in 9 top-level items.
Gloss Meter parts diagram. Numbers match the table below; each box is one top-level part or assembly with what it contains.
#PartQtyWhat it does
1 Light Source Array 4 parts 1× LED or lamp at fixed angles (60°, 45°, 20°)
2 Detector Array 4 parts 1× Photodiode sensor at reflection angle
3 Optics Module 5 parts 1× Precision aperture and lens geometry
4 Signal Processor 4 parts 1× Signal conditioning and calibration
5 Display Module 3 parts 1× LCD readout
6 Calibration Block 2 parts 1× Reference reflectance standard
7 Battery Pack 2 parts 1× Power supply
8 Handheld Housing 4 parts 1× Handheld case
9 Fastener Set 1× Bolts, nuts, and washers.

3D model

No 3D model yet. Have a CAD file of this? Add a 3D model. STL renders right on this page; STEP, FreeCAD, and OpenSCAD sources are welcome too (openly licensed, like all 3D models on BOMwiki).

Build & assembly graph

expand / collapse · shared sub-assemblies converge · links to related products · est. labour
product / assembly shared across products atomic part related product

Tap an assembly to expand/collapse · tap a part to open it · use “Open page” for any node · drag to pan, scroll to zoom.

Bill of materials for Gloss Meter

9 top-level lines · 43 rows shown · 242 parts total · indented to 3 levels
# Item / sub-assembly Part no. Qty/assy Ext. qty Parts Type
1 Light Source Array 4 parts gloss-light-source 1× 1 48 assembly
1.1 LED 60° Module gloss-led-60 1× 1 · part
1.2 LED 45° Module gloss-led-45 1× 1 · part
1.3 LED 20° Module gloss-led-20 1× 1 · part
1.4 LED Driver 4 parts gloss-led-driver 1× 1 45 assembly
1.4.1 Bare PCB pcb-bare 1× 1 · part
1.4.2 Power MOSFET mosfet 3× 3 · part
1.4.3 Power Inductor power-inductor 1× 1 · part
1.4.4 SMD Passive (R/C/L) smd-passives 40× 40 · part
2 Detector Array 4 parts gloss-detector-array 1× 1 54 assembly
2.1 Photodiode 60° gloss-photodiode-60 1× 1 · part
2.2 Photodiode 45° gloss-photodiode-45 1× 1 · part
2.3 Photodiode 20° gloss-photodiode-20 1× 1 · part
2.4 Transimpedance Amplifier 2 parts gloss-transimpedance 1× 1 51 assembly
2.4.1 Bare PCB pcb-bare 1× 1 · part
2.4.2 SMD Passive (R/C/L) smd-passives 50× 50 · part
3 Optics Module 5 parts gloss-optics-module 1× 1 5 assembly
3.1 Aperture 20° gloss-aperture-20 1× 1 · part
3.2 Aperture 45° gloss-aperture-45 1× 1 · part
3.3 Aperture 60° gloss-aperture-60 1× 1 · part
3.4 Reflection Mirror gloss-reflection-mirror 1× 1 · part
3.5 Fastener Set fastener-set 1× 1 · part
4 Signal Processor 4 parts gloss-processor 1× 1 83 assembly
4.1 Bare PCB pcb-bare 1× 1 · part
4.2 Microcontroller mcu 1× 1 · part
4.3 SMD Passive (R/C/L) smd-passives 80× 80 · part
4.4 Connector connector 1× 1 · part
5 Display Module 3 parts gloss-display 1× 1 42 assembly
5.1 LCD Panel lcd-panel 1× 1 · part
5.2 Bare PCB pcb-bare 1× 1 · part
5.3 SMD Passive (R/C/L) smd-passives 40× 40 · part
6 Calibration Block 2 parts gloss-calibration-block 1× 1 2 assembly
6.1 Reference Tile gloss-reference-tile 1× 1 · part
6.2 Fastener Set fastener-set 1× 1 · part
7 Battery Pack 2 parts gloss-battery 1× 1 3 assembly
7.1 Li-ion Cell, 18650 li-cell-18650 2× 2 · part
7.2 BMS Board bms-board 1× 1 · part
8 Handheld Housing 4 parts gloss-housing 1× 1 4 assembly
8.1 Main Body gloss-main-body 1× 1 · part
8.2 Contact Base gloss-contact-base 1× 1 · part
8.3 Rubber Grip gloss-rubber-grip 1× 1 · part
8.4 Fastener Set fastener-set 1× 1 · part
9 Fastener Set fastener-set 1× 1 · part

Something wrong in this list? Report a problem with this BOM.
