GNSS RTK Rover Product
Overview
A real-time kinematic (RTK) GNSS rover is a portable satellite positioning instrument that achieves centimeter-level accuracy without requiring a local surveyor-occupied base station. Instead, it accepts differential corrections transmitted over a radio link from either a fixed base station up to 10 km away (UHF mode) or from a network of permanent reference stations via cellular connection (NTRIP protocol). By resolving carrier-phase integer ambiguities on multiple satellite signals, RTK eliminates the decimeter errors inherent in standard civilian GPS and enables rapid, precise stakeout on construction sites, agricultural fields, and infrastructure corridors.
RTK has become the default positioning method for land survey, machine guidance, and precision agriculture. Unlike traditional solutions that required either expensive dual-frequency receivers or lengthy post-processing, modern RTK combines multi-constellation satellite tracking (GPS, GLONASS, Galileo, BeiDou), robust integer ambiguity resolution, and cellular connectivity into field-hardened equipment that costs 15–40% of traditional survey-grade systems.
How it works
The GNSS Antenna Array on the Antenna Pole receives signals from at least 12–16 satellites across multiple constellations. The [[gnss-rtk-receiver|processor]] measures the time delay (pseudo-range) from each satellite's time-stamped transmission to receiver clock, as well as the fractional number of carrier wavelengths (carrier phase). Standard pseudo-range positioning gives 5–10 meter accuracy; however, by including integer-ambiguity-resolved carrier-phase measurements and applying differential corrections from a reference station, RTK narrows that to 2 cm.
The corrections come via the Correction Link from either:
- A local [[total-station|base station or reference receiver]] 1–10 km away, transmitting correction packets over [[gnss-rtk-radio|UHF radio]] at 1–5 Hz.
- A network of permanent base stations (Leica SmartNet, Trimble RTX, or UNAVCO stations) via the [[gnss-rtk-interface|NTRIP protocol]] over [[gnss-rtk-radio|LTE cellular]] to an internet service.
Once the [[gnss-rtk-receiver|receiver]] locks integer ambiguities (typically within 5–30 seconds of acquiring enough satellites with a valid correction stream), the [[gnss-rtk-controller|field controller]] displays the corrected position with confidence bands. The surveyor can then navigate to stakeout points (design locations read from a CAD file) by walking toward the target indicated on the screen, or use the rover position to guide machine operators for automated grading, trenching, or paving.
Antenna and signal reception
The GNSS Antenna Array is a quadrifilar helix radiator on a 6–10 inch ground plane, offering 45° elevation angle mask and excellent multipath rejection. Multi-constellation (GPS L1/L2, GLONASS L1/L2, Galileo E1/E5, BeiDou B1/B2) reception means that even in urban canyons or near trees, at least 8–12 satellites are typically visible for rapid convergence. The [[gnss-rtk-lna|low-noise preamplifier]] (gain 30 dB, noise figure 0.7 dB) boosts weak satellite signals before they reach the [[gnss-rtk-soc|receiver chip]].
The [[gnss-rtk-oscillator|temperature-compensated crystal oscillator]] keeps the receiver's clock drift to within ±2.5 ppm, critical for precise frequency synthesis and demodulation. All RF filtering is done on the [[gnss-rtk-receiver|receiver PCB]] to minimize interference from nearby cellular base stations or radar.
RTK ambiguity resolution
Traditional RTK uses a three-state pipeline:
- Initialization: Collect 30–60 seconds of dual-frequency observations with corrections.
- Float: Solve an integer least-squares problem, identifying ambiguity values within ±0.5 cycles.
- Fixed: When all ambiguities resolve to integers with high confidence, lock is declared and centimeter accuracy is available.
Modern receivers use GPS, GLONASS, Galileo, and BeiDou together; having 20+ satellites visible (vs. 8–12 GPS-only) cuts convergence time to 5–10 seconds and makes "catchup" (re-fixing after signal loss) nearly instantaneous. The receiver runs a Kalman filter to predict rover motion and maintain lock even during momentary obstructions (driving under a bridge, temporary signal blockage).
Field controller and survey integration
The Field Controller is a rugged Android or Windows device with a 7-inch sunlight-readable display. Survey software (Leica Captivate, Trimble Access, or open-source Rtklib GUI) loads project coordinate systems, displays the rover position in real time, and shows the surveyor how to navigate to target points. The controller stores observations to local SD storage and can upload data to the cloud for immediate QA and design feedback. Simultaneous connection to base-station setup software on a laptop allows the operator to switch correction sources or retrain the system without returning to base.
Correction data link options
UHF radio: Direct line-of-sight 1–10 km range, good for construction sites and open areas. Self-contained system, no cellular subscription needed. Correction latency is 0.5–2 seconds.
Cellular (NTRIP): Over LTE Cat-M1 or 5G, connects to internet-hosted reference stations. Covers 50+ km radius, works in cities and suburbs, but requires continuous data service and carrier plan. Latency is 2–5 seconds due to internet routing.
Network RTK (national coverage): Countries like Germany, Netherlands, Singapore, and Australia operate government-funded networks of 50–200 base stations, transmitting unified corrections via regional data services or proprietary platforms. A single rover subscription covers the entire country.
Practical deployment

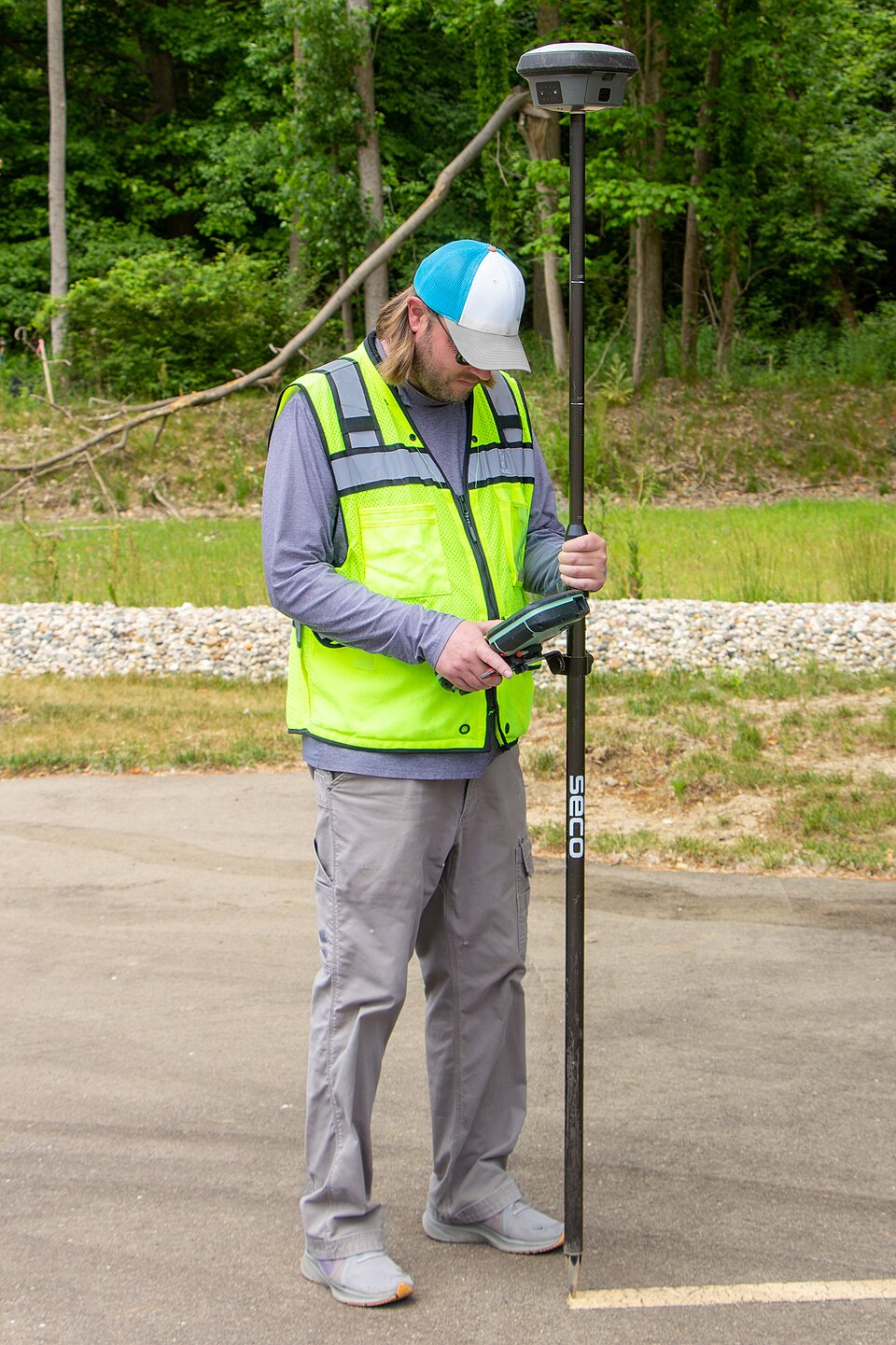

Field teams typically carry two [[gnss-rtk-pole|poles]]: one for the rover (mobile) and one for the base station (if operating in local UHF mode). The base is positioned over a known point, runs continuously, and broadcasts corrections. The rover operator holds the pole vertical (checked by the integrated [[gnss-rtk-pole-level|levels]]) and walks to design points. Measurement cycles are instant; a survey crew can locate 100+ points per day in ideal conditions. Battery life on the rover is 6–8 hours per charge; field teams carry spare [[li-cell-18650|battery packs]] and use a charging cradle at base camp. Hot-swap capability means no downtime between shots.
Accuracy limitations: signal blockage (tunnels, dense forest) loses lock; wet ground and metal structures can multipath severely; and rural areas without cellular coverage require a local base station. Pre-survey site walks identify obstructed areas and optimal setup locations.
Build & assembly graph
expand / collapse · shared sub-assemblies converge · links to related products · est. labourTap an assembly to expand/collapse · tap a part to open it · use “Open page” for any node · drag to pan, scroll to zoom.
Bill of materials
7 top-level lines · 34 rows shown · 35 parts total · indented to 3 levels| # | Item / sub-assembly | Part no. | Qty/assy | Ext. qty | Parts | Type |
|---|---|---|---|---|---|---|
| 1 | GNSS Antenna Array 4 parts | gnss-rtk-antenna | 1× | 1 | 4 | assembly |
| 1.1 | Quadrifilar Helix Radiator | gnss-rtk-helix-element | 1× | 1 | — | part |
| 1.2 | Low-Noise Amplifier | gnss-rtk-lna | 1× | 1 | — | part |
| 1.3 | SMD Passive (R/C/L) | smd-passives | 1× | 1 | — | part |
| 1.4 | SMA Connector | gnss-rtk-connector | 1× | 1 | — | part |
| 2 | RTK Processor 4 parts | gnss-rtk-receiver | 1× | 1 | 5 | assembly |
| 2.1 | GNSS Receiver SoC | gnss-rtk-soc | 1× | 1 | — | part |
| 2.2 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 2.3 | SMD Passive (R/C/L) | smd-passives | 2× | 2 | — | part |
| 2.4 | Temperature-Compensated Crystal | gnss-rtk-oscillator | 1× | 1 | — | part |
| 3 | Correction Link 4 parts | gnss-rtk-radio | 1× | 1 | 4 | assembly |
| 3.1 | Correction Modem | gnss-rtk-radio-module | 1× | 1 | — | part |
| 3.2 | Radio Antenna | gnss-rtk-antenna-radio | 1× | 1 | — | part |
| 3.3 | SMD Passive (R/C/L) | smd-passives | 1× | 1 | — | part |
| 3.4 | Connector | connector | 1× | 1 | — | part |
| 4 | Field Controller 5 parts | gnss-rtk-controller | 1× | 1 | 6 | assembly |
| 4.1 | Touchscreen Display | gnss-rtk-display-unit | 1× | 1 | — | part |
| 4.2 | Microcontroller | mcu | 1× | 1 | — | part |
| 4.3 | Li-ion Cell, 18650 | li-cell-18650 | 1× | 1 | — | part |
| 4.4 | SMD Passive (R/C/L) | smd-passives | 1× | 1 | — | part |
| 4.5 | Connector | connector | 2× | 2 | — | part |
| 5 | Antenna Pole 4 parts | gnss-rtk-pole | 1× | 1 | 4 | assembly |
| 5.1 | Carbon Fiber Pole | gnss-rtk-pole-shaft | 1× | 1 | — | part |
| 5.2 | Antenna Mount | gnss-rtk-antenna-holder | 1× | 1 | — | part |
| 5.3 | Leveling Vials | gnss-rtk-pole-level | 1× | 1 | — | part |
| 5.4 | Fastener Set | fastener-set | 1× | 1 | — | part |
| 6 | Power System 4 parts | gnss-rtk-power | 1× | 1 | 9 | assembly |
| 6.1 | Li-ion Cell, 18650 | li-cell-18650 | 6× | 6 | — | part |
| 6.2 | BMS Board | bms-board | 1× | 1 | — | part |
| 6.3 | Dual-Output Regulator | gnss-rtk-buck-converter | 1× | 1 | — | part |
| 6.4 | Thermal Fuse | thermal-fuse | 1× | 1 | — | part |
| 7 | Network Interface 2 parts | gnss-rtk-interface | 1× | 1 | 3 | assembly |
| 7.1 | Connector | connector | 2× | 2 | — | part |
| 7.2 | SMD Passive (R/C/L) | smd-passives | 1× | 1 | — | part |
