Grape Harvester Product

Overview

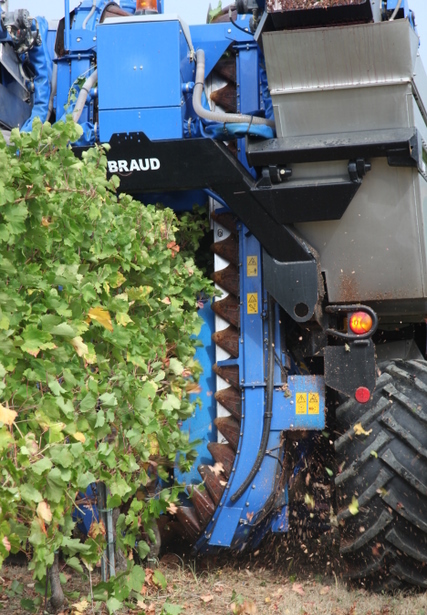

A grape harvester is a mechanized agricultural machine that removes fruit bunches from grapevines, separates berries from stems, and collects them in a large hopper for transport to the winery. Modern designs use pneumatic head clamps to grip the vine trunk, then apply controlled vibration (3–5 Hz frequency) to shake loose the fruit. The shaken berries fall onto angled catching plates that channel them onto conveyor belts. A drum-type destemmer with perforated holes separates the fruit from woody stem material. This technology has been standard in bulk wine production since the 1970s, dramatically reducing labor costs for harvest.

The machine operates as an over-row or straddling design, with the main frame centered over two vineyard rows. The operator rides in a climate-controlled cab equipped with proportional controls for shaker intensity, conveyor speed, and discharge gate position. Hydraulic pressure—typically 210 bar—powers all motion subsystems. Dual pneumatic wheels or tracks provide traction on the soft, uneven terrain typical of vineyards.

Typical harvest efficiency reaches 90–95% fruit recovery with 15–20% stem content reduction by the destemmer. A single machine can harvest 50–100 tons of grapes per day depending on canopy density and row length.

How it works

Vine Engagement: The operator positions the harvester straddling the row and lowers the pneumatic shaker head using a proportional joystick. The clamp grips the vine trunk with 20–30 kN clamping force.

Fruit Detachment: The eccentric-shaft mechanism, driven by a hydraulic motor at 180–200 rpm, converts rotational motion into linear vibration of the rod assembly. This 3–5 Hz oscillation loosens berry attachment without breaking canes. The shaker operates for 2–4 seconds per vine, then retracts for row advance.

Catching & Conveying: Fallen berries impact the upper catching plate and roll downward onto the primary conveyor belt. This belt moves at 1.2–1.8 m/s, carrying fruit toward the destemmer. A second angled conveyor elevates berries to the destemmer hopper inlet.

Destemmering: The rotating perforated drum (60–80 rpm) tumbles berries inside a cylindrical cage. Stems and woody material get snagged by the drum's internal wire auger and fall out the rear discharge, while berries (being spherical and smaller) roll through 8 mm perforations into a collection chamber. Proper moisture and stem lignification ensure clean separation without fruit damage.

Discharge & Transport: Cleaned berries accumulate in the 2500-liter stainless-steel hopper. A hydraulic butterfly gate at the hopper bottom is opened by the operator to gravity-discharge into a bin trailer alongside the harvester.

Hydraulic System: A variable-displacement swashplate pump (16 cc/rev) driven by PTO provides 210 bar oil at up to 100 LPM. Proportional directional valves meter flow to the shaker motor, conveyor motor, and gate solenoid, allowing smooth modulation via joystick input. Pressure compensators prevent system overpressure and fuel excess pump displacement.

Operational Constraints

Harvest moisture content affects stem brittleness: berries picked after morning dew dry better than afternoon picks. Canopy density and fruit set drive throughput; sparse vineyards harvest slower. Cold weather (below 5°C) reduces berry detachment efficiency due to lignin stiffening.

Typical wear items include conveyor belts (500–800 hours), shaker pneumatic seals (800–1200 hours), and destemmer drums (1000–1500 hours before perforation enlargement). Regular bearing greasing and hydraulic filter changes at 250-hour intervals maintain reliability.

Design Evolution

Early mechanical harvesters (1970s) used pure inertia-based shaking without vine clamping, causing vine damage. Modern designs use load-limiting clamps to protect permanent cordons. Recent developments include:

• Optical berry counting: Camera systems mounted near the destemmer drum grade fruit quality and adjust conveyor speed.
• Selective harvesting: Proportional shaking intensity based on berry ripeness (color detection).
• Noise reduction: Enclosed destemmer drums with foam damping reduce vibration-induced noise to <85 dB(A) at 1 m.
• Wireless telemetry: ISOBUS terminals allow real-time harvest maps overlaid on GPS traces, supporting variable-intensity harvesting.

Common Issues

Bruised Berries: Excessive shaking frequency or speed causes skin rupture and premature oxidation. Proper tuning limits motion to 4 Hz and clamp release within 2 seconds post-detachment.

Stem Entanglement: Destemmer performance degrades if stem moisture is too high (>15% content). Pre-harvest drying or late-morning starts improve separation.

Hydraulic Overheating: Long-duration harvesting without adequate coolant exchange can overheat oil to >60°C, thinning viscosity and reducing seal effectiveness. Oversizing reservoirs and adding supplemental coolers extends runtime.

Slippage on Slopes: Wheeled designs on inclines >10% require weight transfer or crawler track options. Weight distribution toward the rear axle improves traction.

Integration with Winemaking

Destemmed berries (called "must") flow directly into open-top fermentation tanks at the winery. The Destemmer Unit separation lets winemakers add back whole stems selectively for tannin control. Berries harvested at night (cool) ferment cooler and retain more fruit-forward aromatics; daytime picks ferment warmer and develop broader tannin profiles.

Mechanical destemming preserves 2–5% residual stem fragments, which continue tannin extraction during fermentation, unlike hand-destemming (near-zero fragment). This consistency allows winemakers to dial phenolic maturity more precisely.

Regulatory & Safety

ROPS (Rollover Protective Structure) certification is mandatory in the EU and most developed markets. Cab design must withstand a 1.5× rollover load test per ISO 5010-1. Sound levels must not exceed 88 dB(A) at the operator ear with cab damping.

Hydraulic hoses carry rupture risk in high-pressure circuits. SAE 100R2 hoses rated for −40 to +120°C are standard; hose replacement intervals are typically 2000 operating hours to prevent catastrophic failure.

Grape harvesters are typically registered as agricultural machinery under national regulations and do not require operator licensing, though formal training is recommended for proper shaker calibration and vine care techniques.
