Ground Penetrating Radar Product

Overview

Ground penetrating radar (GPR) is a geophysical survey instrument that transmits ultra-wideband (UWB) electromagnetic pulses into the ground and records the time-delayed reflections from buried objects and geological boundaries. By measuring round-trip travel time of radar echoes, GPR can map subsurface features (pipes, cables, voids, soil layers) to depths of 2–6 meters, depending on soil conductivity and target size. The [[gpr-processor|onboard processor]] reconstructs a vertical cross-section (radargram) showing subsurface structure in real time on the [[gpr-display|LCD display]]. GPR is the most comprehensive utility detection tool available, detecting both conductive (metal pipes) and non-conductive (plastic pipes, air voids) features that passive magnetic locators and active signal-injection systems cannot see.

GPR is standard practice on utility-heavy construction sites, used before excavation, trenching, and boring operations to minimize utility strikes. It is also used in civil engineering (pavement thickness, void detection under bridge decks), archaeology (buried structures), and environmental surveying (groundwater mapping).

How it works

The [[gpr-transmitter|transmitter]] generates an ultra-short (< 200 ps) electromagnetic pulse at a high repetition rate (1–100 kHz). The [[gpr-antenna|antenna]] radiates this pulse into the ground. The pulse travels through soil, sand, or rock at a speed determined by the material's dielectric permittivity (typically 4–12 for soils, slower than free-space light speed). When the pulse encounters an object or boundary with a different permittivity or conductivity (e.g., a plastic pipe buried in soil), part of the energy is reflected back to the surface.

The [[gpr-receiver|sampling receiver]] detects the returned echoes. Because radar travels at known speed in each soil type, the arrival time of a reflection directly indicates the depth: depth = (travel time × radar speed) / 2 (factor of 2 because the pulse travels down and back up). By recording echo strength vs. delay time, a vertical cross-section is built: the radargram.

The [[gpr-survey-cart|wheeled cart]] with [[gpr-wheel-encoder|distance encoder]] moves the antenna systematically over the survey area, recording thousands of such vertical cross-sections as the cart advances 10 mm per trace. The [[gpr-processor|FPGA processor]] performs real-time signal processing:

• Filtering: Removes DC bias and low-frequency noise from subsurface clutter.
• Stacking: Averages multiple pulses at each location to improve signal-to-noise.
• Migration: Applies Kirchhoff migration to collapse diffraction hyperbolas (X-shaped reflections from point objects) into focused point images.

The result is a 2D image where depth is the Y-axis (time-to-depth conversion) and lateral position is the X-axis (cart position encoded by wheel counter).

Ultra-wideband antenna and pulse propagation

The [[gpr-antenna|UWB antenna]] is designed to radiate energy across an enormous frequency band (400–2600 MHz, from 400 MHz to 2.6 GHz), far wider than conventional narrowband antennas. This wide bandwidth is essential: the pulse duration is inversely proportional to bandwidth, so 2.2 GHz bandwidth enables sub-100 ps pulses. Narrow-band GPR (e.g., 50 MHz) produces 20 ns pulses, with range resolution of ~3 meters—too coarse for utility detection.

The antenna is typically air-coupled (0.1–0.3 m above ground), though ground-coupled variants exist where the antenna rests on soil. Air-coupled reduces coupling loss and allows ground reflection interference to be controlled, improving image quality. Ground-coupled systems couple directly into soil but are more sensitive to surface impedance variations and water films.

Radar wave speed in soil is v = c / √εᵣ, where c is free-space light speed and εᵣ is relative permittivity. Typical values:

• Dry sand: εᵣ ≈ 4–5, v ≈ 0.15 m/ns, range resolution ≈ 50 mm.
• Wet clay: εᵣ ≈ 15–20, v ≈ 0.06 m/ns, range resolution ≈ 20–30 mm, penetration ≈ 0.3–0.5 m (poor due to high conductivity loss).
• Bedrock: εᵣ ≈ 5–7, v ≈ 0.12 m/ns, excellent penetration (5+ m).

Soil conductivity is the depth-penetration limiting factor. Clay and saline soils have high conductivity (0.01–0.1 S/m); electromagnetic waves attenuate exponentially with depth, limiting useful depth to <1 m. Sandy soils are more transparent (σ ≈ 0.001 S/m), allowing penetration to 3–5 m.

Sampling receiver and image formation

The [[gpr-receiver|coherent sampling receiver]] is a key innovation enabling GPR. Unlike conventional radar that uses a continuous receiver oscillator to heterodyne signals down, GPR uses a series of ultra-fast sampling switches that repeatedly sample the received signal at progressively delayed times. For example:

• Pulse 1 transmitted; receiver gate opens 1 ns later (sampling near the surface).
• Pulse 2 transmitted; receiver gate opens 1.1 ns later (sampling 30 mm deeper).
• Pulse 3 transmitted; receiver gate opens 1.2 ns later.
• ... continuing to 100+ ns delay (10–15 m depth).

Each pulse builds one data point on the time-depth axis. After thousands of pulses (typically 1–10 s per trace), a complete vertical profile is assembled. This time-gating approach is computationally simpler than acquiring the full waveform, allowing portable battery-powered systems.

The [[gpr-processor|FPGA]] applies real-time processing:

1. Dewow filtering: Removes low-frequency trend (static coupling from antenna to ground).
2. Gain adjustment: Boosts signal amplitude at greater depth to compensate for attenuation.
3. Kirchhoff migration: Maps diffraction hyperbolae (X-shaped patterns from buried point objects) to their true locations, sharpening the image.

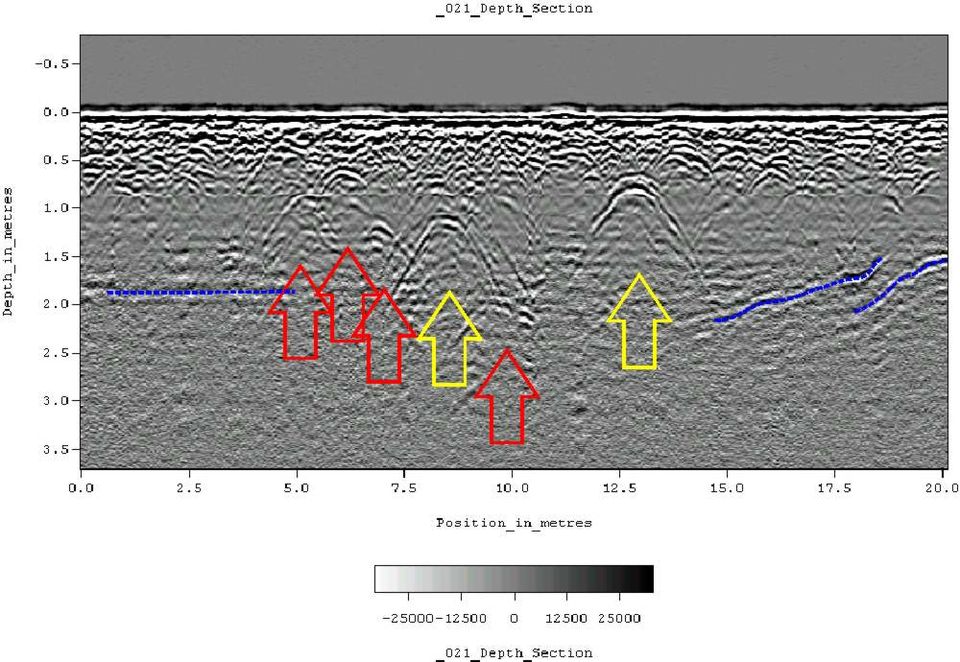

The result is a 2D radargram: X-axis is lateral position (cart distance), Y-axis is depth (color-coded by echo amplitude or energy).

Utility and void detection

GPR readily detects buried utilities:

Metal pipes and cables: Strong reflection at pipe surface due to high conductivity contrast. Appears as hyperbola on unmigrated data (V-shaped pattern as cart passes overhead), collapsing to a single point after migration. Depth is read directly from time-depth axis.

Non-conductive pipes (PVC, concrete): Dielectric contrast with soil (εᵣ ≈ 3–4 for plastic, 9 for concrete vs. 5 for sand) produces reflection. Weaker than metal but clearly visible. Useful for water mains, storm drains, and gravity sewers where metal pipes are uncommon.

Air voids (cavities, abandoned mines): Dielectric contrast is extreme (εᵣ ≈ 1 for air vs. 5+ for soil). Strong reflections. Void edges appear as hyperbolae; fill of void is imaged as dark region (low reflectivity).

Geological layers: Soil stratum boundaries (sand/clay, sand/bedrock) show up as continuous horizontal reflections spanning the survey line. Useful for subsurface mapping and corroboration with borehole logs.

Lateral resolution (ability to distinguish two adjacent objects) is determined by antenna aperture and wavelength:

• At 900 MHz center frequency in soil (v ≈ 0.1 m/ns), wavelength λ = v / f ≈ 110 mm.
• Antenna aperture ~10 cm provides lateral resolution ~20 mm at 1 m antenna height.

Survey cart and data collection

The [[gpr-survey-cart|wheeled cart]] provides mechanical positioning and distance measurement. The [[gpr-wheel-encoder|rotary encoder]] on the survey wheel counts revolutions, generating timing pulses to trigger the transmitter and synchronize receiver gating. A typical setup:

• One encoder count = 10 mm wheel travel.
• Transmitter fires once per count, generating one radargram trace per 10 mm lateral distance.
• Cart speed 1–5 m/s produces trace rates of 100–500 traces/second.

For a 100 m × 100 m site, a 10 mm trace spacing generates:

• X direction: 10,000 traces (100 m / 10 mm).
• Y direction: 10 parallel lines, 0.5 m spacing.
• Total: 100,000 traces, stored in <1 GB (12 bits per sample, 1000 samples per trace).

The [[gpr-display|LCD display]] shows real-time radargrams scrolling across the screen as the cart advances, similar to a chart recorder. Operator can annotate features (mark suspicious hyperbolas with pushpin, label probable utility locations) directly on the display.

Data processing and interpretation

Post-survey, the radargram is processed with specialized GPR software (RADAN, Ekko, GprMax):

• Velocity calibration: If borehole or test pit data are available, soil velocity can be refined; depth estimates improve.
• Migration algorithms: Advanced Kirchhoff or Stolt migration sharpens images further.
• 3D reconstruction: If survey is conducted in a grid (X and Y scans), 2D radargrams are combined into a 3D volume, allowing vertical slicing and 3D visualization.

Interpretation requires expertise:

• Hyperbolae are typically buried point objects (pipes, conduits, large rocks).
• Horizontal reflections indicate layer boundaries.
• Absence of reflection does not mean no utility (some materials may be transparent or attenuated).
• Utility identification is probabilistic; GPR is used with ground-truthing (test pits, utility records).

Practical deployment and limitations

Pre-excavation surveys: Before major earthwork (utility trenching, foundation digging, directional drilling), GPR scans the planned corridor at 0.5 m lane spacing, identifying buried utilities. Depth determination has ±0.2 m uncertainty. Marked locations are conveyed to the excavation contractor.

Utility strikes: Despite GPR use, strikes still occur due to:

• Utility mislocations (utility company records 50 years old, utility has shifted due to subsidence).
• Shallow utilities missed if GPR antenna height is too high.
• Orphaned utilities (abandoned cable ducts, old utility infrastructure forgotten).
• Interpretation errors (small hyperbola misidentified as clutter).

Soil limitations: GPR is most effective in dry, non-conductive soils (sand, gravel, rock). Wet clay and high-salt soils attenuate signals severely, limiting depth. Salt water (coastal areas) and brackish soil (near estuaries) reduce effective depth to <0.5 m.

Combination with other methods: Best practice uses GPR + magnetic locator + active signal-injection locator + utility company records. Each tool fills gaps: GPR detects all buried structures, magnetic locator confirms live electrical utilities, records verify known utility corridors.

Advanced GPR variants

Stepped-frequency GPR: Rather than impulse transmission, swept sinusoidal frequencies (4–400 MHz, or other ranges) are transmitted sequentially. Offers lower cost and power consumption, but slower data collection.

Polarimetric GPR: Transmits and receives dual orthogonal polarizations, allowing material identification (soils, metals, plastics each have characteristic polarimetric signatures).

GPR with bore-hole antennas: Transmitter in one borehole, receiver in another, providing cross-hole imaging for deep subsurface or vertical profiling.

Real-aperture synthetic aperture: If the survey cart motion is known precisely (RTK GNSS), images can be post-processed with synthetic aperture radar (SAR) algorithms to improve resolution.
