Gumball Machine Product

Overview

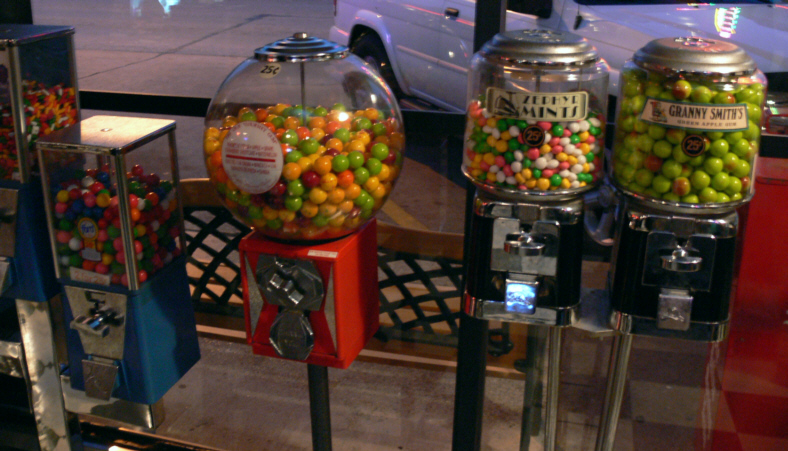

A gumball machine is a simple, time-proven bulk candy vending device combining mechanical coin validation, a rotating transparent globe, and gravity-fed dispensing. The operator fills the globe with gumballs, and end-users insert a coin (typically a quarter) to trigger a single rotation of the globe, which allows one gumball to fall through a chute into a receiving cup or hand. Gumball machines have remained functionally unchanged since the early 20th century because the mechanism is reliable, requires no electrical complexity, and provides immediate sensory reward. Modern variants add digital coin validators or credit-card readers, but the core Gear-Drive Mechanism remains electromechanical.

How it works

Coin insertion is the trigger. The user places a coin into the Coin Validator, which uses a weight-and-size gate to accept valid currency and reject slugs or foreign coins. A valid coin falls into an internal chute and contacts a spring-loaded pivoting lever that mechanically energizes the dispense circuit.

The control circuit closes a relay that energizes a low-torque DC Drive Motor, typically 50–100 W at 12 or 24 V DC. The motor drives a Gearbox Housing with a 30:1 to 50:1 reduction, providing sufficient torque to rotate the loaded Globe Assembly against friction. The gearbox output shaft connects to the globe's aluminum collar via a flexible Flexible Motor Coupling, which accommodates minor shaft misalignment.

As the globe rotates, a single gumball falls by gravity into the Dispensing Chute, a chute with a hinged Solenoid Gate. The gate is held closed by the same solenoid pulse that energizes the motor. When the coin event completes (either after a timed motor run of 0.5–1.5 seconds or after the Gearbox Housing reaches a mechanical detent), the One-Way Solenoid Clutch disengages, the gate spring closes, and the globe stops rotating. The user collects the gumball from the dispensing slot.

The Globe Assembly itself is a masterpiece of simplicity: two hemispheric acrylic shells molded from optical-grade plastic in 8–10 mm thickness for impact resistance, bonded around an aluminum Rotation Collar with integrated Ball Bearing bosses for smooth rotation. Gumballs are loaded from the top, which is often a hinged door integrated into the Outer Housing.

Coins are collected in a lockable box inside the Outer Housing, accessible only with a key held by the operator or business owner. The machine requires no network or software; a mechanical Relay and simple Step-Down Transformer provide all control logic. This autonomy is a core strength: a gumball machine operates in any location, requires no internet, and fails gracefully if power is lost (a partially rotated globe simply stops and waits for the next coin).

Structure and Materials

The Stand Assembly, typically 22–36 inches tall, is a welded steel or aluminum pedestal anchored to the floor or counter. The Outer Housing sits atop the pedestal and encloses the motor, gearbox, and control relay, usually in powder-coated 16-gauge steel or aluminum with a removable or hinged top for product loading.

The globe itself is the visual centerpiece and the highest-precision component. The Acrylic Globe Shell must be optically clear, impact-resistant to repeated product movement, and precisely balanced so that rotation is smooth and gumballs do not accumulate in dead zones. The shell is typically 12–14 inches in diameter, providing ample visibility and product advertising.

The Gear-Drive Mechanism is the mechanical heart. The DC Drive Motor is selected for low torque and low cost; brush motors rated 50–100 W are standard because they can be driven by a simple transformer and relay without PWM or complex electronics. The Gearbox Housing reduction ratio (30:1 to 50:1) is chosen so that a full globe rotation (representing 1 coin = 1 dispense) occurs over 0.5–1.5 seconds, providing feedback to the user while keeping the machine responsive.

Variants and Operation

Commercial operators typically deploy gumball machines in high-traffic locations: front-of-store, movie theaters, laundromats, medical offices, and shopping malls. The machine can be owned outright by a business (e.g., a laundromat or arcade) or operated under a profit-sharing agreement with a vending operator, who stocks it and collects coins weekly or monthly.

Routine maintenance is minimal. Product replenishment is straightforward: unlock the cabinet, lift or open the globe top, pour in bulk gumballs, and close the top. The only wear items are the Ball Bearing in the globe collar and the Relay contacts in the Control Relay Assembly; both are replaceable in under 10 minutes.

Some newer machines add a mechanical counter wheel or a simple digit counter to track dispenses, helping operators estimate revenue and troubleshoot jamming. A few luxury models add LED lighting inside the globe or a small credit-card reader alongside the coin validator, but these are exceptions. The industry standard remains the electromechanical Coin Validator and mechanical Gear-Drive Mechanism.

Price range for a new gumball machine is typically USD 300–600, and used machines are available for 150–300. With a 25-cent piece price and gross margins of 40–50%, a machine in a high-traffic location can generate 50–100 USD per month, recovering capital in 5–12 months.

See also

• Globe Assembly for globe engineering specifics
• Gear-Drive Mechanism for drive train design
• Coin Validator for currency acceptance logic
