Heat Press Machine Product

Overview

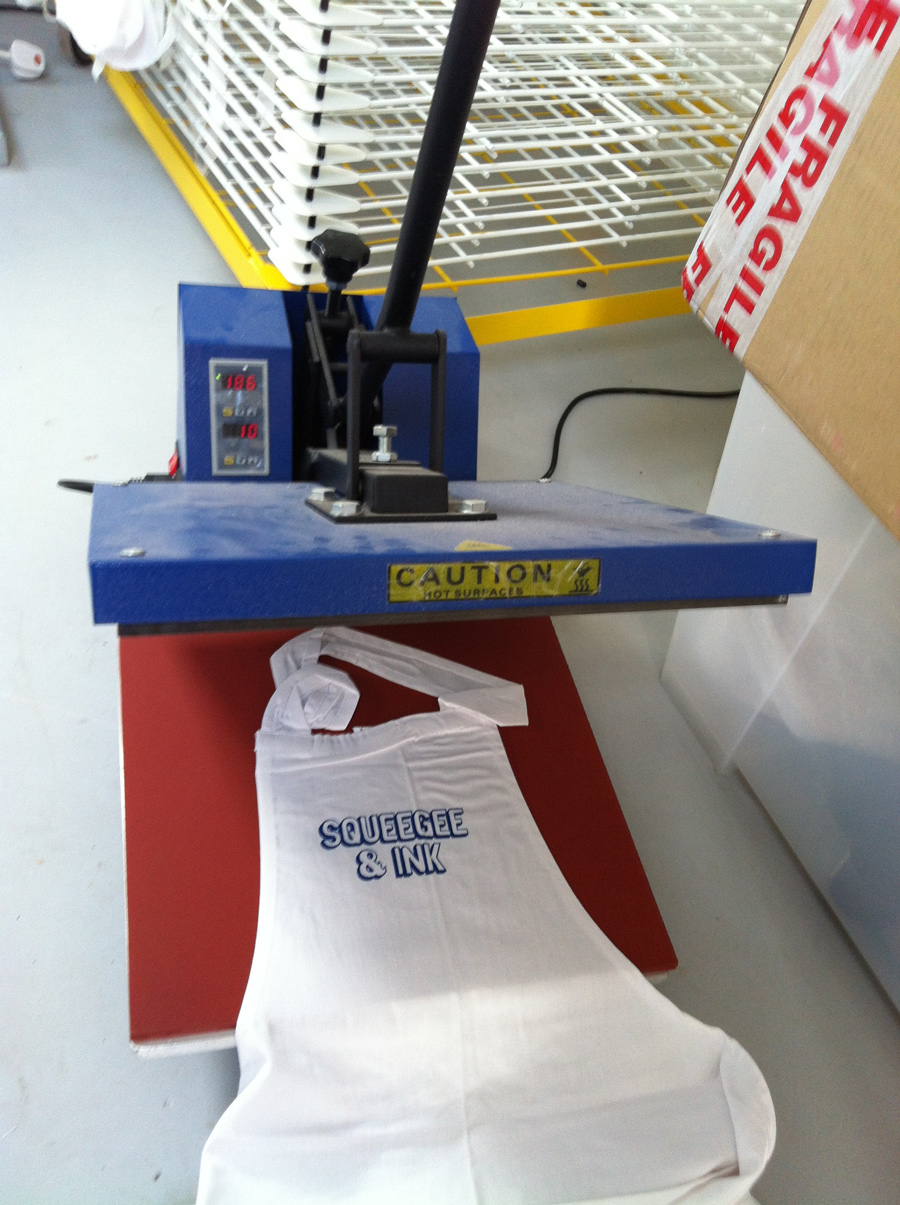

A heat press is a tabletop or industrial machine applying controlled heat and pressure to a substrate for seconds to minutes, transferring images, bonding materials, or setting finishes. Typical applications include heat-transfer vinyl application (t-shirt decoration), screen printing ink curing, sublimation transfer (photo-quality prints), rhinestone setting, embossing, and lamination.

The machine consists of a heated aluminium platen (top) pressing against a cool or heated base (bottom) with programmable dwell time and pressure. Unlike large industrial calenders, heat presses operate in discrete cycles—load, press, hold, release—allowing batch production of custom apparel, awards, mugs, and signage with minimal training.

How It Works

A substrate (t-shirt, mug blank, ceramic tile) is placed on the Base Platen. A heat-transfer design is positioned on top (vinyl decal, sublimation paper, or embossed foil). The operator lowers the Heated Platen via the Pressure System—either a pneumatic Air Cylinder or manual screw clamp.

The Main Controller monitors the Temperature Sensor mounted in the heated platen, maintaining setpoint via PID control of the Heating Element. Typical dwell is 10–60 seconds for vinyl, 15–30 seconds for sublimation, and 30–60 seconds for embossing.

During dwell, heat conducts through the substrate, melting adhesive on the back of transfer vinyl or volatilizing dye in sublimation ink. Pressure (typically 30–100 psi) ensures uniform contact and adhesion.

When the Display Panel timer expires, an audible beep signals completion. The operator pulls the Pressure Frame to swing open or releases the clam-shell. Cool-down is immediate—no forced cooling needed.

The Safety System prevents operation with the lid open and cuts power if temperature exceeds maximum setpoint.

Design Variants

Swing-arm press: Top platen hinges on a rear pin; operator lifts or swings open. Ideal for high-volume apparel work (fastest cycle time).

Clam-shell press: Top platen opens vertically like a book, providing full visibility and easy loading. Common in craft or small-batch operations.

Articulated or pantograph: Multi-arm linkage distributing pressure more evenly across large platens (50×60 cm+). Used for technical graphics or fine embossing.

Bottom heating: Premium models add heating to the base platen for dual-sided temperature control. Necessary for thick substrates (ceramic, wood) that require gradient heating.

Rotary/Mug press: Specialized curved platen and rotating chuck for cylindrical objects (mugs, bottles, hats). Platen is a ceramic barrel heated to 150–180°C.

Material Applications

Heat-transfer vinyl (HTV): 150–180°C, 10–15 sec, medium pressure. Adhesive melts and bonds to fabric.

Sublimation transfer: 190–210°C, 30–40 sec on polyester fabric or coated substrates. Dye gas permanently bonds to polymer.

Screen-printed apparel: 150–160°C, 15–30 sec for flash-curing ink between passes. Machine acts as dryer, not primary cure.

Embossing foil: 120–180°C depending on foil, 3–5 sec. Pressure bond only; low heat.

Rhinestone setting: 150°C, 20–30 sec. Glue dots melt and set stones on fabric or acrylic.

Lamination: 100–150°C, 20–40 sec. Adhesive film bonds protective clear layer to prints.

Workflow and Efficiency

A single operator can run 3–5 heat presses in series, cycling one while others cool, achieving 12–20 pieces per hour for apparel. Sublimation production is faster (4–6 pieces per minute per press) because cycle times are shorter and no manual weeding is needed (unlike vinyl).

Setup time: <2 minutes per job (unload previous, load new substrate, adjust temperature/time if needed).

Maintenance and Consumables

Platen wear: Polyurethane or PTFE coating on the top surface degrades after ~50,000–100,000 cycles (2–5 years typical). Replacement coating (spray or adhesive) costs €100–500.

Heating element cartridges: Replace every 2–3 years if kept clean. Cost €30–80 per element.

Teflon Release Sheet: Protective release layer, replaced every 3–6 months (costs €20–40) to prevent sticking and residue transfer.

Temperature calibration: Check annually using an external thermogun. Variance >5°C requires controller adjustment or sensor replacement.

Pressure regulator maintenance: Drain water from air reservoir weekly if ambient humidity is high; replace filter cartridge annually.
