Overview

A hydraulic press achieves pressing force by pumping pressurized liquid (usually mineral oil or eco-friendly ester) into a cylinder, where it pushes a piston outward against a die. Unlike mechanical presses that are locked into a fixed stroke profile by crankshaft geometry, hydraulic presses offer independent control of force, speed, and dwell time. The pump runs continuously at constant motor speed, feeding pressurized fluid to a directional control valve that routes flow to either extend or retract the ram. This decoupling of motor speed from press force and speed is the defining advantage: a single hydraulic press can be programmed for soft clamping, rapid advance, high-force stamping, and controlled retraction, all within one cycle. Hydraulic presses dominate applications requiring variable force, deep drawing (molding), or precision deep-dive stamping where the stroke must be significantly longer than a mechanical crankshaft can feasibly deliver.

Hydraulic power transmission

The Motor Housing, spinning at constant rpm, drives the Pump Body, which is a gear or piston pump that displaces a fixed volume of fluid per revolution. For a 30 cc/rev pump at 1500 rpm, the output is 1500 × 30 = 45,000 cc/min = 45 L/min. This flow enters the Valve Manifold, where solenoid-actuated porting directs the stream to the Hydraulic Cylinder cap-end or rod-end depending on the desired direction. The hydraulic-stamping-press-pressure-sensor mounted in the manifold reads real-time system pressure (typically 210–280 bar for stamping work) and sends a 4–20 mA signal to the Control Console control system. If pressure exceeds the setpoint, the Pressure Relief Cartridge pilot-opens, dumping excess flow back to the Hydraulic Reservoir at low energy loss.

The cylinder itself is precision-honed to 0.002 inch tolerances to minimize leakage. The Piston features O-ring grooves that are designed to operate at the specified working pressure; typical pressures of 250 bar produce negligible piston leakage (under 1 cc/min) over thousands of operating hours. The Ram Rod, hard-chrome-plated for corrosion resistance and reduced friction, transmits the piston thrust force directly to the upper die plate.

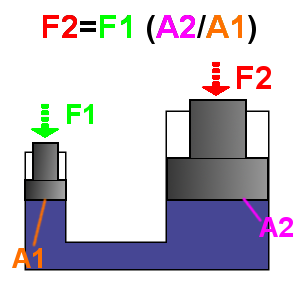

Force generation and mechanical advantage

Force is simply pressure times piston area. For a 150 mm bore at 250 bar:

Area = π × (75 mm)² = 17,671 mm²
Force = 250 bar × 17,671 mm² = 441.8 kN ≈ 45 tons

The beauty of hydraulic force is that it is constant throughout the stroke (assuming constant pump pressure). Unlike a mechanical press, where force varies dramatically as the crankshaft angle changes, a hydraulic press delivers the same crushing force at every point from full extension to full compression. This uniformity is excellent for mold-filling applications where consistent forming pressure is required.

The Rod Eye (often a clevis or spherical bearing) permits misalignment of several degrees without binding, unlike the rigid mechanical connection of a mechanical press. This flexibility accommodates wear in the Frame Columns and slightly worn Bolster Base.

Flow regulation and cycle timing

The operator selects cycle speed via a control valve. A proportional directional valve meters flow to the cylinder, allowing soft approach (2–5 mm/s), rapid advance (50–100 mm/s), and controlled retraction. Many presses add a pilot-operated check valve in the cap-end line to prevent free-fall of the loaded ram during retraction: the pilot pressure from the pump unloads the check, creating a smooth lowering speed. Without this, a fully-loaded ram would accelerate under gravity and impact the base, causing shock loads and fatigue failure.

Thermal management

Hydraulic fluid heats up due to throttling in directional valves and viscous shear in hoses. The Hydraulic Reservoir provides a large air-exposed surface (typically 3–4 m² for a 1000 L tank) where convection and radiation dissipate heat. A 20 kW pump running continuously may shed 2–4 kW into the fluid; if the press only runs 50 % of the time, dissipation is adequate. For continuous high-duty stamping, a shell-and-tube or plate-frame cooler is added to the return line, often cooled by facility chilled water. The desiccant breather on the Filler Breather prevents humid air from entering the tank and forming water-in-oil emulsions, which degrade bearing life and promote corrosion.

Contamination control and filtration

Hydraulic systems are extremely sensitive to particle contamination. A single 10 micron speck can jam a proportional solenoid. The Suction Strainer (typically 250 microns) protects the pump inlet from large debris. A 25-micron return-line cartridge filter (not shown in detail) cleans fluid exiting the cylinder before it reenters the tank. Cleanliness is tracked by ISO 4406 code (e.g., 16/14/11 meaning less than 1300 particles larger than 4 microns per 100 mL); typical hydraulic stamping presses operate at 17/15/12 or better.

Safety and redundancy

Double-acting cylinders (pressure on both cap-end and rod-end) require dual solenoid pilot signals to prevent unintended movement. Pilot-operated check valves lock the load in place when the pump stops. Load-holding valves prevent drift in vertical applications. Pressure transducers trigger alarms if system pressure drops unexpectedly (sign of a hose rupture or seal failure), and relief valve settings are certified annually.

Maintenance

Fluid analysis (viscosity, acid number, water content, particle count) is sampled every 500–1000 operating hours. The pump and motor shaft seals must be inspected for oil weeping; a 1–2 drop per minute is normal, but streams indicate seal wear. Solenoid coils are checked for continuity and insulation resistance. The Filler Breather desiccant cartridge is replaced when it turns blue or pink, indicating saturation.
