Space Station Treadmill Product
Overview
The International Space Station treadmill is a purpose-designed exercise apparatus that solves a unique biomechanics problem: how to provide astronauts with ground-reaction forces in microgravity. Unlike Earth treadmills, the ISS treadmill does not rely on gravity to hold the user on the belt; instead, it uses an elastic restraint system and precision vibration isolation to let astronauts run aerobically while absorbing impacts without destabilizing the station.
Astronauts in microgravity lose ~1–2% of bone mineral density per month and undergo cardiovascular deconditioning at a rate faster than Earth bed-rest studies predict. Treadmill exercise for 60–90 minutes per day, combined with resistance training (via the Advanced Resistive Exercise Device) and cycle ergometer work, is the primary countermeasure to microgravity deconditioning. The treadmill is therefore a critical life-support system, not a luxury amenity.
The design philosophy centers on three technical challenges:
Impact Absorption: In gravity, impact energy is dissipated by leg muscles working eccentrically. In microgravity, the astronaut must be held down to the belt by restraint force, then absorbed by the belt itself and structural isolation mounts.
Vibration Isolation: A 2 kW motor running at 3000 RPM, coupled to a belt bearing impact loads, would otherwise shake the ISS. Elastomer mounts and spring isolators at 30 Hz natural frequency attenuate motor vibrations by ~50 dB at module frequencies.
Load Predictability: The astronaut's weight must be replicated by adjustable bungee cords with known stiffness, so that the biomechanics of running remain similar to Earth conditions.
Restraint System

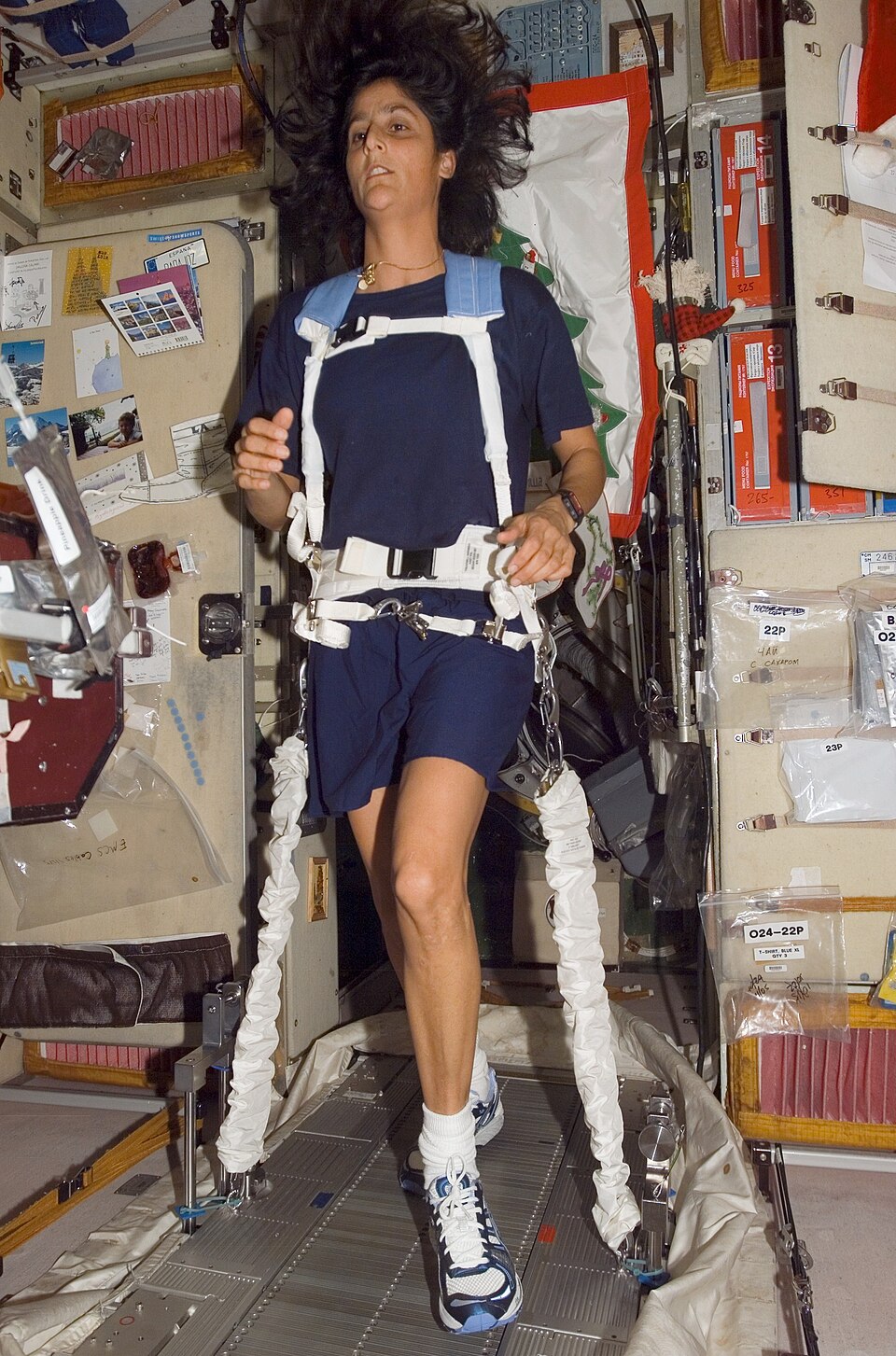

The [[iss-treadmill-restraint-system|dynamic restraint assembly]] is the defining innovation. Rather than locking the astronaut in place, it allows free vertical motion within a small range (10–20 mm) while applying a steady downward force.
The system consists of a [[iss-treadmill-waist-harness|padded waist harness]] connected via [[iss-treadmill-shoulder-strap|shoulder straps]] to four [[iss-treadmill-bungee-cord|elastic bungee cords]]. Each bungee is independently adjustable (by looping it back on itself) to accommodate different astronaut body weights and personal preference. A typical 70 kg astronaut uses bungee-cord combinations that exert 50–70 kg of downward force, creating the subjective sensation of running on Earth.
Critically, the bungees are not rigid—they stretch by 10–20 mm as the astronaut's center-of-mass accelerates downward during landing. This compliance absorbs impact energy in a way that's biomechanically realistic: the astronaut feels muscle loading similar to running on Earth, but the impact is absorbed gradually rather than instantaneously.
The [[iss-treadmill-bungee-anchor|overhead anchor points]] are threaded into the ISS aluminum truss grid, which is rated for 500 N per anchor. Four anchors distribute the load, so a 100 kg downward impulse is shared 25 kg per anchor—well within structure.
Belt Drive and Propulsion
The [[iss-treadmill-belt-drive|belt drive system]] uses a brushless DC motor rated 2 kW continuous, spinning at 3000 RPM nominal. A timing pulley reduces this to ~1500 RPM at the [[iss-treadmill-roller-drive|drive roller]], which is 100 mm diameter. This gearing results in a belt surface speed of ~4.7 m/s at 1500 RPM, corresponding to a 17 km/h running pace—a reasonable aerobic workout for an astronaut.
The [[drive-belt|running belt]] is reinforced elastomer-nylon composite, 1200 mm circumference and 180 mm width. It's tensioned to 200 N by a spring-loaded [[iss-treadmill-roller-idler|idler roller]], which automatically maintains tension as the belt stretches. The belt itself contains embedded elastomer inserts that absorb foot-strike energy and reduce noise transmission to the ISS structure.
The [[iss-treadmill-motor|brushless motor]] is hermetically sealed to prevent outgassing (which could contaminate optics and solar panels). Cooling is passive: the motor housing is aluminum and dissipates heat via radiation to the space station module interior (typically 18–22 °C). At 2 kW continuous, the motor generates ~1.5 kW of waste heat, which is acceptable for the ISS thermal management system.
The [[iss-treadmill-motor-control|motor controller]] is a custom PWM-based brushless driver running at 20 kHz switching frequency. Hall-effect sensors on the motor shaft detect commutation timing and enable smooth variable-speed operation. An astronaut typically presses a speed dial to set running pace from 2–20 km/h; the controller adjusts motor voltage to maintain that speed under load (i.e., under the dynamic restraint force).
Impact Absorption and Isolation
The [[iss-treadmill-impact-absorbers|vibration isolation system]] has two levels.
Primary isolation: The belt deck itself includes a [[iss-treadmill-belt-deck|shock-absorbing layer]] of polyurethane foam (Shore 60A, 15 mm thick) sandwiched under the running surface. This layer deforms ~3 mm under footfall, extending the impact duration and reducing peak acceleration. Peak decelerations drop from ~4 g (bare aluminum) to ~1.5 g (with foam).
Secondary isolation: The entire [[iss-treadmill-frame|main frame]] is mounted to the ISS rack via six [[iss-treadmill-iso-mount|elastomer-spring isolators]] positioned under each frame corner and motor mount. Each isolator has a natural frequency of 30 Hz—below typical crew-induced vibration frequencies (50–100 Hz from aerobic running) but above low-frequency thermal cycling (which occurs over hours).
At 30 Hz isolation frequency, motor vibrations (3000 RPM = 50 Hz, plus harmonics) and belt impacts (running cadence ~3 Hz fundamental + harmonics at 6, 9, 12 Hz) are mostly decoupled from the ISS structure. Transfer function analysis predicts >30 dB attenuation of 100 Hz components reaching the module walls.
In practice, the treadmill is installed in the U.S. Lab module on a dedicated locker/rack structure, and the vibration environment in adjacent modules is imperceptible even during vigorous running.
Data Logging and Performance Monitoring
The [[iss-treadmill-data-module|data acquisition system]] logs performance metrics automatically. A [[iss-treadmill-heart-rate-monitor|heart rate sensor]] (optical pulse oximetry) integrated into the waist harness feeds to the [[iss-treadmill-mcu|onboard microcontroller]], which samples at 1 Hz. An [[encoder|optical encoder]] on the motor shaft counts belt revolutions, allowing calculation of distance, speed, and cadence. Pressure switches under the belt deck detect foot strikes and compute stride frequency.
Every exercise session is logged to an SD card: timestamp, elapsed time, average speed, heart rate history, and total distance. Post-mission, this data is downlinked to flight surgeons and exercise physiologists on Earth, who assess the astronaut's cardiovascular response and recommend adjustments to future exercise protocols.
The [[iss-treadmill-mcu|MCU]] is a low-power ARM Cortex-M4 (STM32L4 family) that runs on <1 W during logging and draws <0.2 W in sleep mode. A small [[lipo-cell|backup battery]] (3000 mAh) retains data even if main power is lost during a 28 V bus reset.
Thermal and Structural Considerations
At 2 kW continuous power, the motor and resistances in the controller dissipate ~1.5 kW as heat. The ISS cabin is a sealed volume with active thermal control: air is circulated at ~0.5 m³/s through radiators and condensers. The treadmill heat load is modest compared to the crew (each person generates ~100 W basal + ~500 W during exercise), so it's readily accommodated. However, the controller PCB is positioned away from sensitive optics (e.g., cameras in the module's windows) to avoid thermal gradients.
Structurally, the [[iss-treadmill-frame|aluminum frame]] is rated to support 2× the expected worst-case load (400 kg vertical + dynamic impact). The frame is welded 6061-T6 aluminum with titanium gussets at stress concentrations. Fatigue life under expected duty (5 exercise sessions per week × 52 weeks = 260 cycles/year of motor startup/shutdown and impact transients) is >10 years.
The [[iss-treadmill-bracket-set|mounting brackets]] interface to the ISS standard 28 V and 120 VAC rack connectors. Structural tie-down uses titanium bolts through [[vibration-damper|elastomer bushings]] to the module wall, distributing the reaction load across 4–6 fasteners.
Maintenance and Future Upgrades
The treadmill requires minimal on-orbit maintenance: belt tension is checked monthly, connectors are cleaned quarterly, and the motor bearings are sealed for life. Major components (motor, controller, belt) are designed to be swappable without tools in under 2 hours.
Potential future upgrades include:
- Variable-incline capability: A servo-driven rocker to tilt the deck 5–10° for hill training.
- Real-time biofeedback: Integration with a head-mounted display showing heart rate, cadence, and running form video.
- Magnetic eddy-brake: Regenerative braking to harvest energy from the belt's momentum during deceleration.
Current treadmill performance meets design requirements: astronauts maintain cardiovascular fitness comparable to Earth-based training, bone loss is reduced by 20–30%, and the ISS structure remains stable and unaffected by exercise operations.
