Overview

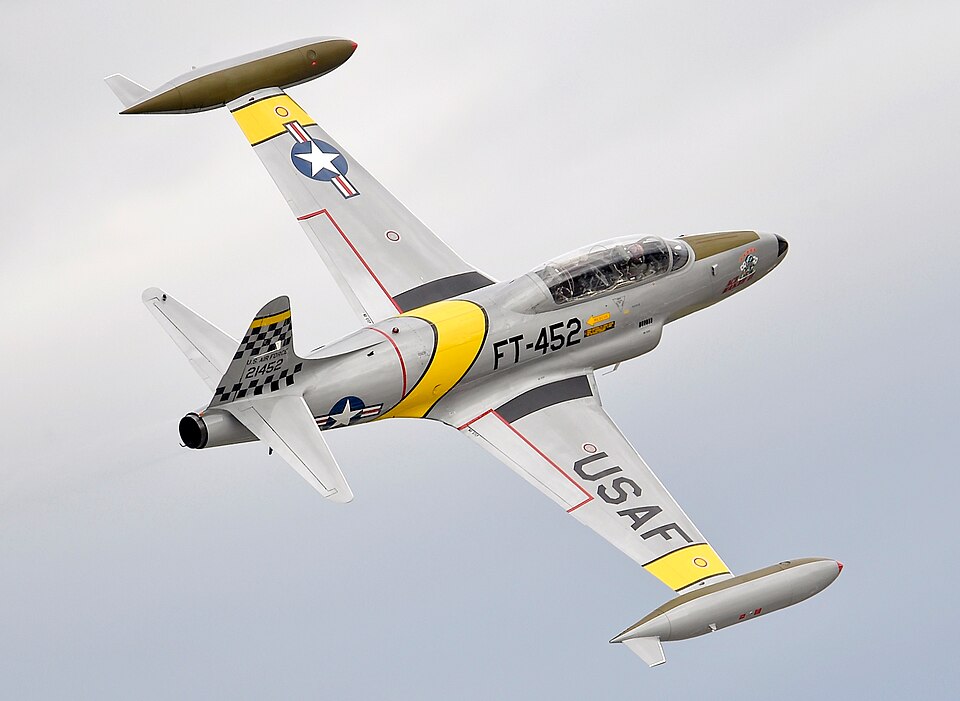

An advanced jet trainer is the aircraft on which military pilots make the jump from propeller basic trainers to frontline fast jets. The formula has been stable since the 1970s: a tandem two-seat Tandem Cockpit, a single non-afterburning Turbofan Engine of 20–30 kN, an Airframe stressed to fighter-class +8 g, and two Ejection Seat units. The BAE Hawk, KAI T-50, Leonardo M-346 and Boeing T-7 all follow this layout. The aircraft must be cheap enough to fly at perhaps a fifth of a fighter's hourly cost, forgiving enough for a 200-hour student, and representative enough that the transition to a frontline type adds little new workload.

Airframe

The structure is a conventional aluminium semi-monocoque: a Fuselage Frame Set of machined frames and longerons carrying Sheet Metal Panel stressed skins. Trainer airframes lead hard lives — circuits, aerobatics and repeated student landings — so the design fatigue life of around 10,000 hours assumes a far more punishing load spectrum than an airliner's. Each Wing is built around two machined Wing Spar members and a set of Wing Rib chord formers, carrying a hydraulically powered Aileron outboard and a single-slotted Flap inboard that brings approach speed down near 100 knots. The Empennage uses an all-moving All-Moving Tailplane rather than a fixed stabiliser with elevator, preserving pitch authority as shock waves form on the tail near Mach 0.8; the Fin and Rudder is sized generously for spin recovery, a certification point unique to trainers among jet aircraft. A ventral Airbrake lets the instructor bleed energy quickly when a student arrives at the circuit fast and high.

Propulsion

The single Turbofan Engine trades the afterburner of a fighter engine for fuel economy and maintainability. Air from two fuselage-side intakes passes through the two-stage Fan Module, with the core flow continuing into the HP Compressor at an overall pressure ratio near 13:1, the annular Annular Combustor, and the Turbine Module before leaving through a fixed convergent nozzle. A dual-channel FADEC Unit schedules fuel against throttle position and the engine's temperature and speed limits — important in training, where slam accelerations from idle to full power on a botched approach are routine and the control unit, not the student, protects the engine. The Accessory Gearbox on the underside of the engine drives both Hydraulic Pump units, the high-pressure fuel pump and the DC generator.

Cockpits and escape system

The rear seat sits roughly 0.3 m higher than the front so the instructor can see the runway over the student's helmet — the stepped tandem arrangement that defines the type's silhouette. Both cockpits carry a full Instrument Panel with three LCD Panel multifunction displays, and the front cockpit adds a head-up display showing the same symbology the student will meet on a frontline type. The Control Stick and Rudder Pedals are mechanically linked between cockpits, so the instructor feels every input and can take control instantly.

Each Ejection Seat is a zero-zero design: it must save the occupant from a standstill on the runway. Pulling the handle fires detonating cord in the Canopy, shattering the acrylic, then the Rocket Catapult gun and rocket accelerate the Seat Bucket up the rails at about 14 g. The Seat Sequencer times drogue deployment, harness release and main canopy inflation from the Drogue and Main Parachute pack; the whole sequence from handle pull to a full parachute takes under three seconds. The Restraint Harness retracts the occupant upright first, because spinal alignment under the catapult load is what keeps an ejection survivable.

Systems

Flight controls are hydraulically boosted through tandem Hydraulic Servo Actuator units fed by two independent 207 bar systems of the Flight Control System, each monitored by Pressure Sensor transmitters; newer designs replace the mechanical runs with digital fly-by-wire so the trainer can mimic the handling of whatever fighter the syllabus targets. The Landing Gear uses oleo-pneumatic Gear Strut legs rated for 4 m/s touchdowns — roughly double an airliner's design sink rate — with carbon Wheel Brake Unit discs and anti-skid on the mains, retracted by Retraction Actuator rams.

The Fuel System holds about 1,700 kg in three Fuel Tank cells, with a flop-tube feed that keeps the engine running through up to 30 seconds of inverted flight; electric Boost Pump units pressurise the feed line against cavitation at altitude.

Avionics and embedded training

The Avionics Suite suite is where modern trainers differ most from their predecessors. The Mission Computer runs embedded simulation: a synthetic radar picture, simulated threats, and scoreable weapons employment, all generated on board and displayed as if the sensors were real. This lets air forces teach tactical phase flying without the cost of a radar-equipped aircraft. Navigation comes from a hybrid INS/GPS Unit unit, identification from an IFF Transponder, and communication from two V/UHF Radio sets covering both civil and military bands — a student's first sorties are flown in shared civilian airspace.
