Laser Rangefinder
ProductOverview
A laser rangefinder measures how far away an object is by firing an invisible laser pulse at it and timing how long the reflection takes to come back. Light covers about 30 cm per nanosecond, so the whole measurement is over in microseconds and the instrument simply reports the number on a display the user already has their eye to.

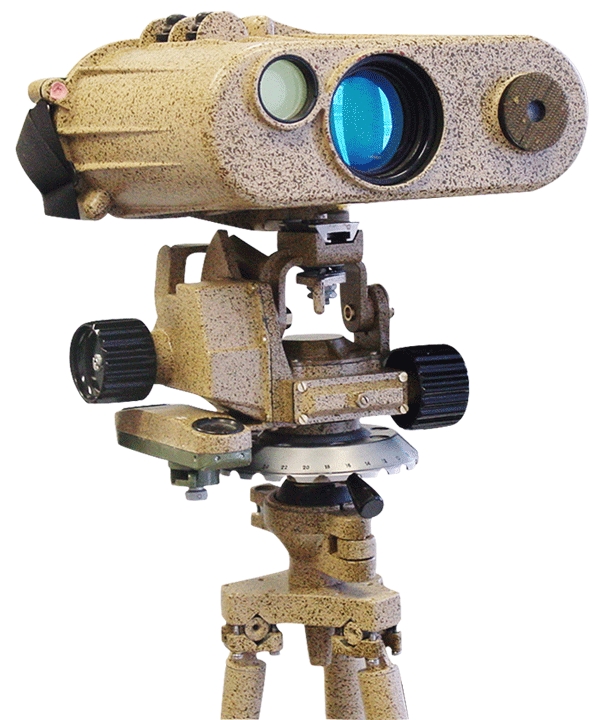

The device is built around two optical paths that share the body. The user aims through a conventional sighting telescope, the Objective Optics Group form the image and the Eyepiece & Erecting Optics magnify it, while the laser system works alongside it. The Laser Emitter Module sends the outgoing pulse and the APD Receiver Module catches the faint return. Between them, the Time-of-Flight Timing Board does the arithmetic and pushes the result into the Reticle Display Module, which overlays the reticle and the distance reading into the eyepiece view. Everything runs off a single cell in the sealed Housing & Rubber Armor, commanded by a two-key Button Pad.
How it works
Pressing the button tells the Time-of-Flight Timing Board to start a measurement. It triggers the Laser Emitter Module, whose driver dumps a stored charge through the Pulsed Laser Diode (905 nm) to make a nanosecond near-infrared pulse, shaped by a collimating lens into a narrow beam aimed at the target.
A tiny fraction of that light scatters back. The APD Receiver Module gathers it with its own lens, passes it through a narrowband filter that rejects sunlight, and lands it on the Avalanche Photodiode (APD), whose internal gain turns a handful of photons into a usable pulse. A transimpedance amplifier sharpens the edge and hands it to the time-to-digital converter on the timing board, which measures the interval between transmit and receive to picosecond resolution. Half that interval times the speed of light is the distance. Because returns from grass, glass, and the true target can arrive at slightly different times, the firmware can report the first or last hit, or scan continuously. The number is rendered on the reticle LCD and folded into the sight line by a beam splitter, so the reading floats over whatever the user is looking at.
Laser Rangefinder parts and their functions
11 top-level parts · 220 parts in total · full bill of materials below| # | Part | Qty | What it does |
|---|---|---|---|
| 1 | Laser Emitter Module 4 parts | 1× | Laser transmitter |
| 2 | APD Receiver Module 4 parts | 1× | APD return path |
| 3 | Time-of-Flight Timing Board 6 parts | 1× | Time-of-flight processor |
| 4 | Objective Optics Group 2 parts | 1× | Sighting objective |
| 5 | Eyepiece & Erecting Optics 3 parts | 1× | Magnifying eyepiece |
| 6 | Reticle Display Module 3 parts | 1× | Reticle overlay |
| 7 | Button Pad 3 parts | 1× | |
| 8 | Li-ion Cell, 18650 | 1× | Or CR2 primary |
| 9 | Housing & Rubber Armor 3 parts | 1× | |
| 10 | O-Ring Set | 2× | Weather sealing |
| 11 | Fastener Set | 1× | Bolts, nuts, and washers. |
3D model
No 3D model yet. Have a CAD file of this? Add a 3D model. STL renders right on this page; STEP, FreeCAD, and OpenSCAD sources are welcome too (openly licensed, like all 3D models on BOMwiki).
Build & assembly graph
expand / collapse · shared sub-assemblies converge · links to related products · est. labourTap an assembly to expand/collapse · tap a part to open it · use “Open page” for any node · drag to pan, scroll to zoom.
Bill of materials for Laser Rangefinder
11 top-level lines · 46 rows shown · 220 parts total · indented to 3 levels| # | Item / sub-assembly | Part no. | Qty/assy | Ext. qty | Parts | Type |
|---|---|---|---|---|---|---|
| 1 | Laser Emitter Module 4 parts | lrf-emitter-module | 1× | 1 | 37 | assembly |
| 1.1 | Pulsed Laser Diode (905 nm) | lrf-laser-diode | 1× | 1 | · | part |
| 1.2 | Collimating Lens | lrf-collimating-lens | 1× | 1 | · | part |
| 1.3 | Laser Pulse Driver Board 4 parts | lrf-driver-board | 1× | 1 | 34 | assembly |
| 1.3.1 | Bare PCB | pcb-bare | 1× | 1 | · | part |
| 1.3.2 | Power MOSFET | mosfet | 2× | 2 | · | part |
| 1.3.3 | Pulse Storage Capacitor | lrf-storage-cap | 1× | 1 | · | part |
| 1.3.4 | SMD Passive (R/C/L) | smd-passives | 30× | 30 | · | part |
| 1.4 | Emitter Optical Mount | lrf-emitter-mount | 1× | 1 | · | part |
| 2 | APD Receiver Module 4 parts | lrf-receiver-module | 1× | 1 | 45 | assembly |
| 2.1 | Receiver Objective Lens | lrf-receive-lens | 1× | 1 | · | part |
| 2.2 | Avalanche Photodiode (APD) | lrf-apd | 1× | 1 | · | part |
| 2.3 | Narrowband Optical Filter | lrf-bandpass-filter | 1× | 1 | · | part |
| 2.4 | Transimpedance Amplifier Board 3 parts | lrf-tia-board | 1× | 1 | 42 | assembly |
| 2.4.1 | Bare PCB | pcb-bare | 1× | 1 | · | part |
| 2.4.2 | Transimpedance Amplifier IC | lrf-tia-ic | 1× | 1 | · | part |
| 2.4.3 | SMD Passive (R/C/L) | smd-passives | 40× | 40 | · | part |
| 3 | Time-of-Flight Timing Board 6 parts | lrf-timing-board | 1× | 1 | 118 | assembly |
| 3.1 | Bare PCB | pcb-bare | 1× | 1 | · | part |
| 3.2 | Compute SoC Module | soc-module | 1× | 1 | · | part |
| 3.3 | Microcontroller | mcu | 1× | 1 | · | part |
| 3.4 | Time-to-Digital Converter | lrf-tdc-ic | 1× | 1 | · | part |
| 3.5 | SMD Passive (R/C/L) | smd-passives | 110× | 110 | · | part |
| 3.6 | Connector | connector | 4× | 4 | · | part |
| 4 | Objective Optics Group 2 parts | lrf-objective-optics | 1× | 1 | 2 | assembly |
| 4.1 | Lens Assembly | camera-lens | 1× | 1 | · | part |
| 4.2 | Objective Lens Barrel | lrf-objective-barrel | 1× | 1 | · | part |
| 5 | Eyepiece & Erecting Optics 3 parts | lrf-eyepiece-optics | 1× | 1 | 4 | assembly |
| 5.1 | Lens Assembly | camera-lens | 2× | 2 | · | part |
| 5.2 | Roof Prism | lrf-roof-prism | 1× | 1 | · | part |
| 5.3 | Diopter Adjust Ring | lrf-diopter-ring | 1× | 1 | · | part |
| 6 | Reticle Display Module 3 parts | lrf-display-module | 1× | 1 | 3 | assembly |
| 6.1 | LCD Panel | lcd-panel | 1× | 1 | · | part |
| 6.2 | Reticle Backlight LED | lrf-backlight-led | 1× | 1 | · | part |
| 6.3 | Beam-Splitter Plate | lrf-beam-splitter | 1× | 1 | · | part |
| 7 | Button Pad 3 parts | lrf-button-pad | 1× | 1 | 4 | assembly |
| 7.1 | Bare PCB | pcb-bare | 1× | 1 | · | part |
| 7.2 | Tactile Switch | lrf-tact-switch | 2× | 2 | · | part |
| 7.3 | Rubber Key Mat | lrf-rubber-keymat | 1× | 1 | · | part |
| 8 | Li-ion Cell, 18650 | li-cell-18650 | 1× | 1 | · | part |
| 9 | Housing & Rubber Armor 3 parts | lrf-housing | 1× | 1 | 3 | assembly |
| 9.1 | Polymer Housing Shell | lrf-housing-shell | 1× | 1 | · | part |
| 9.2 | Rubber Armor Overmold | lrf-rubber-armor | 1× | 1 | · | part |
| 9.3 | 1/4-20 Tripod Bushing | lrf-tripod-thread | 1× | 1 | · | part |
| 10 | O-Ring Set | oring-set | 2× | 2 | · | part |
| 11 | Fastener Set | fastener-set | 1× | 1 | · | part |
Something wrong in this list? Report a problem with this BOM.
