A launch escape system is a crew-safety architecture that protects occupants of a spacecraft during the most dangerous phase of spaceflight: ascent to orbit. In the event of a launch vehicle structural failure, engine loss-of-thrust, or other anomaly during the first 10–100 seconds of flight, the Launch Escape System fires its main Escape Motor to propel the crew capsule away from the failing rocket, following a ballistic arc to a safe altitude and distance where parachute recovery systems deploy.

The system is autonomous and redundant. Pre-flight software loads a decision tree into the flight computer; during ascent, the Flight Control Avionics continuously monitor accelerations, velocities, and vehicle orientation via the Inertial Measurement Unit inertial measurement unit. If sensors detect anomalies consistent with a loss-of-thrust condition—sudden deceleration, tumbling, or out-of-envelope trajectory—the computer fires the main Escape Motor and simultaneously activates the Pitch Control Motor to orient the capsule away from the launch vehicle debris cloud. The Jettison Motor severs the escape tower once the capsule reaches a safe altitude, allowing the crew capsule to re-enter under its own parachute system.

No human pilot input is required. The entire abort sequence—ignition through tower jettison—occurs within 15–45 seconds, with main motor burnout typically at 60–85 seconds flight time and capsule apogee around 200–400 m altitude. The crew experiences 15–30 g of acceleration but in a controlled, survivable manner.

System architecture and sequencing

The Launch Escape System consists of three functional subsystems: the propulsion chain (three solid rockets), the flight control and sequencing avionics, and the tower structure that integrates all components.

Propulsion subsystem. The Escape Motor is the primary abort thruster, typically providing 1500–3500 kN of thrust for 6–10 seconds. The motor case and propellant grain are identical to those used in the launch vehicle's upper stage or attitude control systems, leveraging manufacturing commonality. Ignition occurs when two redundant redundant pyrotechnic igniters fire, initiated by the flight computer.

The Pitch Control Motor provides lateral thrust (100–300 kN), mounted perpendicular to the tower longitudinal axis. On abort command, this motor ignites simultaneously with the main escape motor, producing a cross-axis force that tips and separates the capsule from the launch vehicle within the first 2–3 seconds. The combined vector of main thrust plus pitch control thrust rotates the capsule attitude to angle it away from the rocket.

The Jettison Motor is a detonating cord charge and set of Explosive Separation Bolts, mounted at the mechanical interface between the tower and the crew capsule. At a time when the capsule has reached ~85 km altitude (or when main motor burnout is confirmed), the avionics fire the jettison charge in a controlled sequence: the Explosive Separation Bolts sever, the Jettison Charge shaped charge cuts the structural attachment points, and springs eject the tower away from the capsule. The capsule then coasts under gravity and deploys its main parachute.

Flight control avionics. The Flight Control Avionics box contains the Microcontroller flight computer, the Inertial Measurement Unit with 3-axis accelerometers and gyroscopes, and a Bare PCB sequencing board with redundant logic for ignition and ordnance control. The software monitors acceleration along the launch vehicle's main axis; loss-of-thrust is inferred when axial acceleration drops below a threshold (typically 0.5–1.5 g) for more than 50–200 milliseconds. Once abort is triggered, the computer closes a relay that sends current to the main motor igniter and simultaneously to the pitch control motor igniter.

A watchdog timer protects against avionics failure: if the computer stops updating the mission timer register, a secondary analog circuit fires the igniters autonomously. This dual-level redundancy ensures that even catastrophic computer failure does not prevent abort.

Tower structure. The Tower Structure is a rigid aluminum or titanium tube (2–3 m diameter, 8–15 m long) that carries the three motors in a cantilevered stack and integrates the avionics shelf and Escape Fairing. The main Escape Motor is mounted along the tower centerline, with the smaller Pitch Control Motor clamped on the side. Motor Mount Brackets distribute the thrust loads through the tube structure to the capsule interface. All external systems—sensors, connectors, ordnance firing leads—are integrated into the Electrical Harness and Ordnance Distribution bundle, which routes through the tower and across to the launch vehicle ground power and telemetry connectors.

Aerodynamics and control

Once the main and pitch motors ignite, the escape tower and capsule experience extreme transient loads. The Canard Fins (usually four small control surfaces mounted near the top of the tower) provide aerodynamic stability, keeping the capsule oriented nose-forward as it ascends and coasts. Canard control surfaces are set to a fixed trim angle pre-calculated based on capsule mass and center-of-gravity. Some designs include a mechanical or pyrotechnic Control Rod Linkage that adjusts the Fin Hinge Mechanism angle in-flight to correct for center-of-gravity changes due to fuel burn or other asymmetries.

The Escape Fairing provides thermal and structural protection: the Fairing Shell is a composite streamline that reduces drag and aerodynamic flutter, while the Fairing Insulation layer (ablative or multi-layer insulation) insulates the avionics box and ordnance charges from aerodynamic heating during the high-Mach, high-acceleration portions of flight.

Performance envelope and limitations

The escape system is operationally usable from T-0 (while fueling) through approximately 60–85 seconds after launch, corresponding to an altitude of 15–40 km. Above that point, the capsule has sufficient velocity and altitude to separate safely from the launch vehicle under ballistic coasting, and the crew can rely on the main parachute recovery system.

Below 5 km altitude, atmospheric drag becomes dominant, and the motor thrust cannot impart sufficient relative velocity to the capsule. Some systems use smaller abort motors for low-altitude scenarios; others accept that low-altitude aborts below 5 km will result in a lower-altitude parachute deployment and longer freefall.

Maximum abort-rated vehicle mass is constrained by the escape motor thrust and target abort acceleration limits. A typical crew of 3–4 people plus 500–1000 kg capsule hardware can sustain 20 g sustained acceleration; thus escape motor thrust is sized such that (thrust − capsule weight)/capsule mass ≈ 20 g.

Qualification and testing

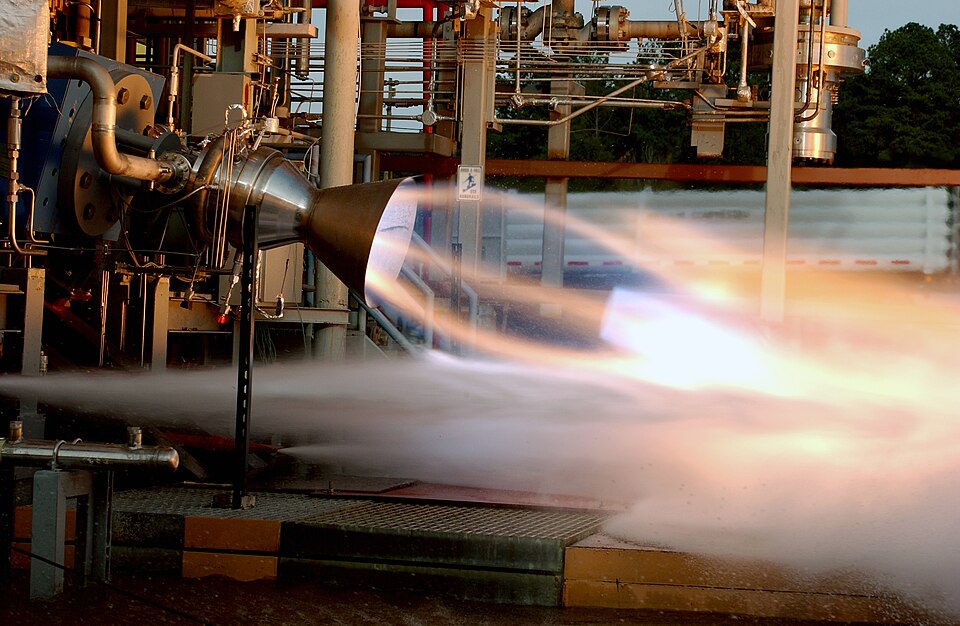

The Launch Escape System is ground-tested extensively: motor static fires validate thrust and burn profile, ignition reliability is proven through repetitive electrical firing tests, and shock/vibration tests validate the structure under launch vehicle acceleration loads. One or more pad aborts are conducted on a real launch vehicle, usually with a test capsule or water ballast, to validate the real-world abort sequence and recovery.

In-flight abort tests have historically been rare and expensive, so most LES designs rely on simulation, scaled analog tests, and one or two full-scale pad or tower drop tests. Modern computer modeling of aerodynamics and control allows high confidence even with limited in-flight data.
