Overview

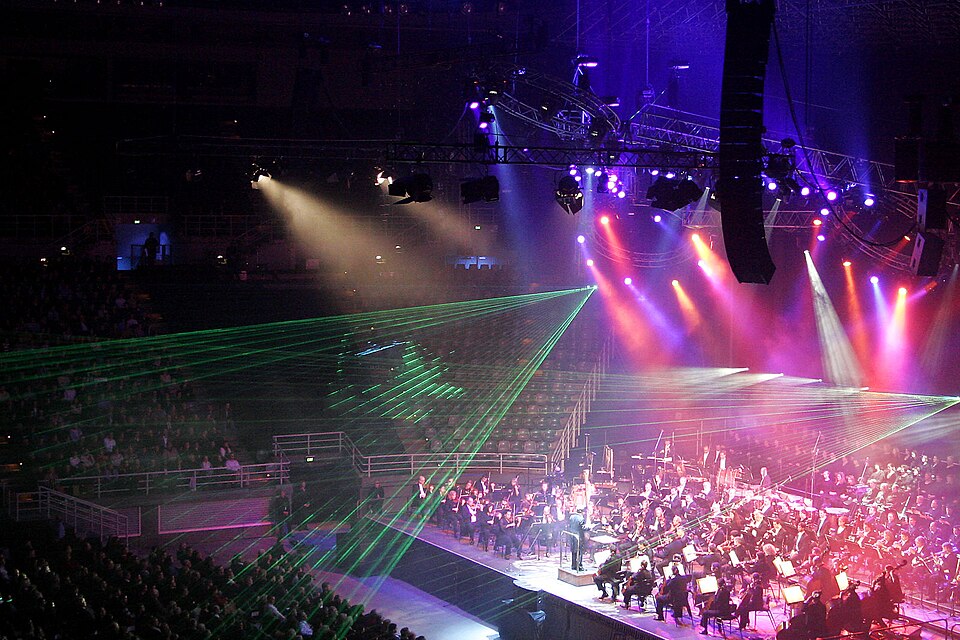

A lighting grid batten (or lighting bar) is the backbone of studio lighting rigs. Suspended from the ceiling or theater grid using [[lighting-grid-batten-suspension-hardware|eyebolts and shackles]], the [[lighting-grid-batten-tube-beam|aluminum beam]] carries a row of stage lights (fresnels, cycs, spotlights), distributes power and DMX control signals, and can be raised or lowered via a [[lighting-grid-batten-hoist-mechanism|motorized hoist]] to adjust light angle and position. In a multi-camera broadcast or theater production, a dozen or more battens arranged in rows create the three-dimensional lighting structure that shapes shadow, directs attention, and sets mood.

Structure and suspension

The [[lighting-grid-batten-tube-beam|aluminum box beam]] is hollow, creating internal chambers for [[lighting-grid-batten-power-distribution|power distribution]] and [[lighting-grid-batten-data-raceway|data cables]]. An internal [[lighting-grid-batten-beam-divider|divider plate]] separates the power zone (hot wires) from the data zone (DMX, Ethernet), preventing EMI and maintaining safety.

Each batten is suspended from the ceiling structure via two or more [[lighting-grid-batten-eyebolt|eyebolts]] (M16 or larger, grade 8.8 steel), connected with [[lighting-grid-batten-shackle|shackles]] to [[lighting-grid-batten-suspension-hardware|rigging cables]] or chains. Most modern venues use [[lighting-grid-batten-hoist-mechanism|motorized chain hoists]] (PWM-controlled variable speed) so a single operator can raise or lower the entire batten smoothly. A [[lighting-grid-batten-load-cell|load cell]] beneath the hoist reports the current load, and a soft-start ramp prevents jerky movement.

Safety is paramount: a batten holding 500 kg of lighting equipment and cables falling from 10 meters is catastrophic. Every batten includes a [[lighting-grid-batten-safety-tether|backup safety cable]] rated for double the working load and fitted with a [[lighting-grid-batten-shock-absorber|shock absorber]] that limits deceleration to 4 g if the hoist fails. Theater codes mandate this redundancy; the cable is mechanically independent, running through separate eyebolts and anchor points.

Power and distribution

The [[lighting-grid-batten-power-distribution|main power feed]] enters one end of the batten from the facility's electrical distribution board, typically 63 A at 120/240 V (North America) or 63 A at 230 V (elsewhere). A [[lighting-grid-batten-circuit-breaker|thermal-magnetic breaker]] protects against overload. The current flows along an [[lighting-grid-batten-power-rail|aluminum busbar]] running the length of the beam, where [[lighting-grid-batten-outlet-cluster|multi-outlet clusters]] (typically 4× 20 A per cluster) tap power for fixtures.

Each outlet is a Hubbell or Twist-Lock connector rated 20 A, 250 V. A single cluster might supply four 5 kW fixtures; the batten can deliver 63 A total, so three clusters consume the full capacity. Larger facilities use multiple battens in parallel, each with its own 63 A feed, to avoid overload.

Some battens integrate a [[camera-control-unit-main-supply|dimmer interface]]—a set of control contacts that the lighting console can pulse with low-level DC current to command external dimmer packs below the grid. This allows wireless or over-network lighting control without running separate dimmer cables to each batten.

Data and control

Modern lighting uses DMX512, a serial protocol letting a lighting console send 512 channels of dimmer instructions over a single twisted-pair XLR cable. The batten carries [[lighting-grid-batten-data-raceway|DMX conduit]] from one end connector ([[lighting-grid-batten-dmx-connector|XLR-3 or XLR-5 female input]]) through to a [[lighting-grid-batten-dmx-connector|male XLR output]] on the opposite end, allowing daisy-chaining of battens. The data is low-voltage, so it's isolated from the high-current power zone by the internal divider.

Modern installations often add [[lighting-grid-batten-network-jack|Gigabit Ethernet (RJ45)]] alongside or instead of DMX, for control protocols like Art-Net or sACN that run over IP networks. This allows remote lighting control from tablets or smartphones, and integration with other show-control systems (video playback, audio mixing, stage automation).

A [[lighting-grid-batten-control-connector|control termination connector]] houses both input and output for DMX, plus [[lighting-grid-batten-shield-ground|shield grounding]] that prevents RF noise from coupling into the data line.

Fixture attachment

Lights mount to the batten using [[lighting-grid-batten-fixture-mounts|C-clamps or grip hooks]]. A typical C-clamp has a [[lighting-grid-batten-clamp-jaw|textured aluminum jaw]] (100 mm opening) that grips the batten's side, and a [[lighting-grid-batten-clamp-ball-joint|ball joint]] accepting a 3/8" NPT connector from the fixture. The ball joint allows the fixture to be tilted or rotated without unbolting—critical for precise light aiming.

Most venues space [[lighting-grid-batten-fixture-mounts|clamps every 0.5–1 meter]] along the batten. A single batten can hold 8–12 fixtures depending on weight distribution and safety margins. The [[lighting-grid-batten-fixture-mounts|clamp and fixture]], once in place, should not move or creak during a production—even a slight bounce in a follow-spot beam is visible on camera.

Thermal management

Stage lights (especially tungsten fresnels and cycs) generate enormous heat. A 5 kW tungsten fresnel radiates heat in all directions, and multiple lights on a batten create a hot zone. The batten itself must not overheat; insulation on power cables inside the beam can degrade. Most modern battens include [[lighting-grid-batten-heat-management|thermal dissipation fins or perforated aluminum]] on the exterior, allowing convective heat loss. Some installations fit active [[lighting-grid-batten-cooling-system|ventilation fans]] if heat load is extreme.

Practical considerations

A well-designed lighting grid is a modular, plug-and-play infrastructure. Battens are standardized lengths (3 m, 4 m, 6 m); crews can hang and configure them as needed for a production. Cable looms are color-coded by circuit (red = 1 circuit, blue = 2nd circuit, etc.), so electricians can quickly trace which outlets belong to which dimmer pack or control console output. The [[lighting-grid-batten-cable-routing|cable tray]] and [[lighting-grid-batten-cable-management|guard clips]] keep power and data cables organized and away from the [[lighting-grid-batten-wheel-assembly|wheel paths]] of mobile cameras or equipment carts.

In large facilities, dozens of battens are pre-hung on a permanent grid. Before each production, electricians power them up, test circuits, and load the rigging plot provided by the lighting designer. In smaller venues, battens are portable—rigged for one show, struck (removed) and stored for the next. Either way, safety, power capacity, and control clarity are non-negotiable.
