Magic Lantern Product

Overview

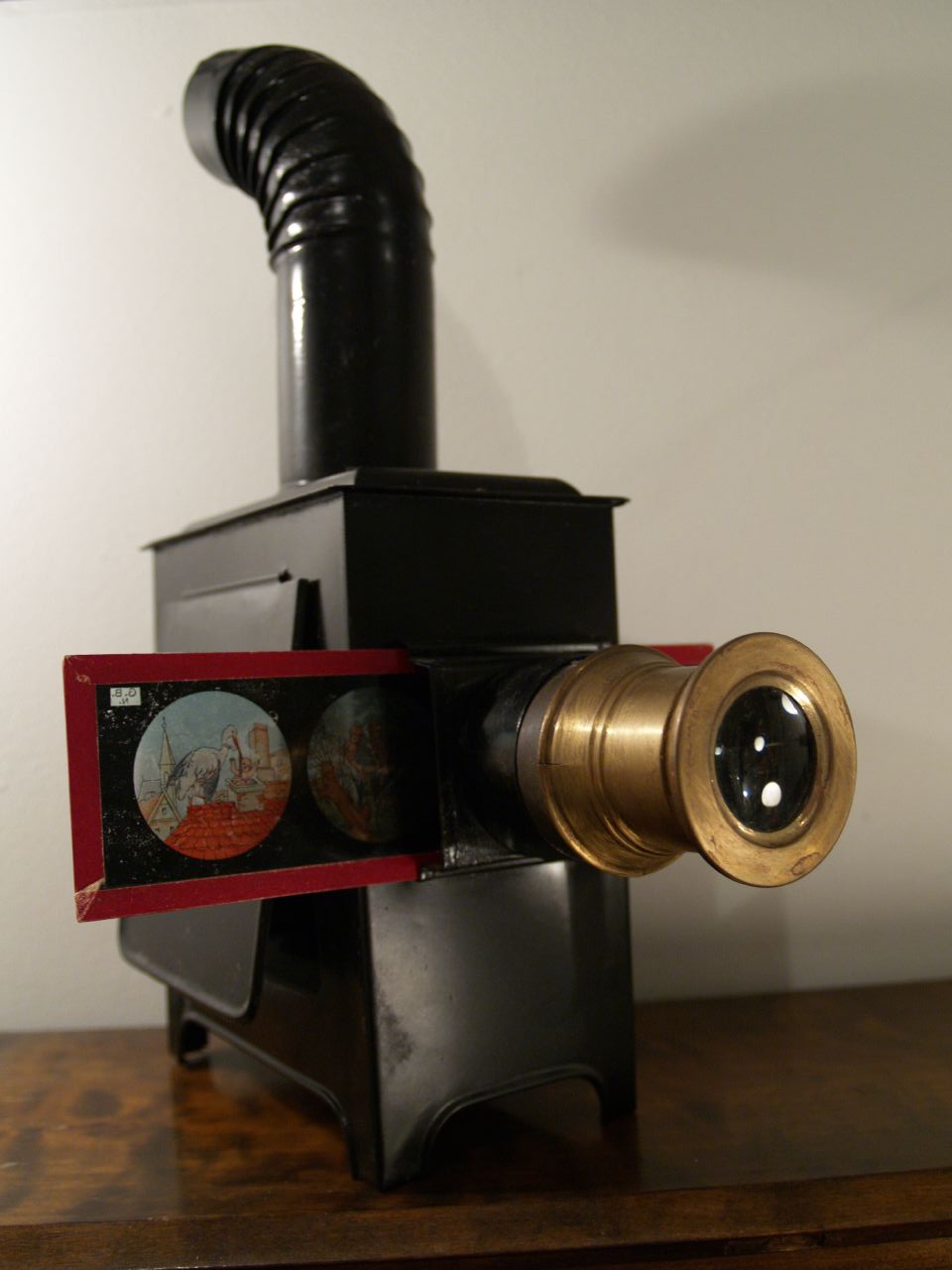

The magic lantern is an optical projection device that displays enlarged images from glass slides onto a distant screen or wall. Also called a "projection lantern" or "optical lantern," it was the dominant method for large-scale image display from its invention in the 1600s until the advent of motion pictures (1890s) and electric projection (mid-20th century).

The device works by passing light from a bright source (oil lamp, candle, or electric bulb) through a glass slide positioned at the focal point of a lens system. The lens magnifies the slide image and projects it onto a screen, where it appears enlarged. Because the human eye integrates the light from a large projected image, even dim light sources can produce visible projected images in a dark room.

Magic lanterns were essential tools for entertainment, education, and scientific demonstration. Traveling lanternists (like Charles Dickens, who was an enthusiastic amateur lanternist) toured villages and cities, projecting hand-colored slides depicting faraway lands, moral stories, and scientific phenomena. They were precursors to cinema and early television in terms of mass-audience visual communication.

Light Source and Lamphouse

The Lamphouse is an enclosed chamber protecting the light source and containing the [[magic-lantern-reflector|reflector]] that concentrates light. Historical light sources evolved:

Oil lamps (pre-1900): A wick lamp (similar to a Dip or Argand lamp) burned vegetable or mineral oil, producing a bright yellow flame. The flame was positioned at the focal point of a [[magic-lantern-reflector|parabolic reflector]] (brass or silvered copper), which bounced diverging light rays back toward the slide. Light output was modest (~5–20 lumens) but sufficient in a dark parlor.

Candles (earliest, 1600s–1700s): Even less powerful, requiring a smaller, more intimate audience. Used for home entertainment and private demonstrations.

Limelight (calcium light, 1820s–1900s): A lime rod heated to incandescence by a hydrogen-oxygen flame, producing a bright white light (~100 lumens, far superior to oil). Limelight was the dominant projection light source in the 19th century, particularly for large public demonstrations and theatrical applications.

Electric incandescent bulbs (1900 onward): As electric power became available, carbon-filament and tungsten bulbs (25–100 W) provided reliable, bright light without the maintenance and danger of open flames. By the 1920s, electric-powered lanterns dominated.

The [[magic-lantern-lamp-enclosure|enclosure]] is typically brass or copper, chosen for high thermal conductivity and safety. A [[magic-lantern-heat-shield|heat shield]] protects the optical elements (particularly the glass slide) from radiant heat, which could crack or discolor the slide.

Condensing System

The [[magic-lantern-condensing-lenses|condensing system]] transforms diverging light from the lamphouse into a parallel or slightly converging beam that efficiently illuminates the slide. It consists of two lenses ([[magic-lantern-condenser-lens-1|primary]] and [[magic-lantern-condenser-lens-2|secondary]]) housed in a [[magic-lantern-condensing-frame|frame]].

The condenser lenses are typically plano-convex (one flat side, one curved), made of crown glass or borosilicate glass for heat resistance. Focal lengths range 30–100 mm. The two lenses are spaced precisely (calculated to match the optical design) to produce a parallel beam of uniform intensity across the slide aperture.

The condensing system is critical: without it, light rays striking the slide at sharp angles would be lost (since the objective lens can only accept light within a certain cone angle). With proper condensing, the intensity is maximized and vignetting (darkening of the image edges) is minimized.

An [[magic-lantern-lens-aperture|adjustable iris diaphragm]] (similar to a camera aperture) can be closed to reduce light intensity, useful for very bright scenes or to improve contrast in dimly lit conditions.

Slide Stage and Thermal Management

The Slide Stage holds the glass slide in the optical path. A [[magic-lantern-slide-carrier|carrier frame]] (metal ring or spring clip) grips the slide''s edges, positioning it perpendicular to the optical axis. The slide is typically 3–5 inches (75–125 mm) square and ~3 mm thick glass.

Glass slides can be:

• Hand-colored: Original photographic prints or lithographs painted by hand with oils or watercolors, giving rich, detailed color images. These were labor-intensive but beautiful.
• Monochrome: Black-and-white images (engravings, photographs, drawings) on glass, often hand-tinted with a single translucent color (sepia, blue, etc.).
• Experimental (special effects): Slides with moving parts, mirrors, or colored glass overlays for dynamic effects.

Heat management is critical because the lamp output includes significant infrared radiation, and a thin glass slide positioned just 100 mm behind the heat source can reach 100–150 °C, causing discoloration or cracking. Early solutions included:

• Water-cooled slides: A [[magic-lantern-cooling-coil|cooling jacket]] of copper or brass tubing circulated water around the slide aperture.
• Air cooling: Slotted metal or glass envelopes around the slide allowing heat dissipation.
• Heat-absorbing glass: Special blue-green glass (copper-sulfate glass) placed between the lamphouse and slide, absorbing infrared while transmitting visible light.

Modern lanterns typically use heat-absorbing glass or a combination of air circulation and reflective heat shields.

A [[magic-lantern-stage-shutter|shutter]] (iris or sliding blade) at the stage opening allows the operator to control the image boundaries, masking unwanted edges or creating transitions (e.g., gradually revealing the image by opening the iris).

Objective Lens

The [[magic-lantern-objective-lens|objective]] is the primary projection lens, responsible for magnifying the slide image and focusing it on the screen. It typically consists of two glass elements ([[magic-lantern-objective-element-1|front]] and [[magic-lantern-objective-element-2|back]]) designed to minimize spherical and chromatic aberrations.

Focal length determines magnification and working distance. Short focal lengths (25–50 mm) magnify more but require the screen to be closer; long focal lengths (100–150 mm) magnify less but work over longer distances.

f-number (focal length divided by effective diameter) affects brightness and depth of focus. Magic lantern objectives typically operate at f/4–f/8 (moderate apertures), a compromise between light throughput and image quality.

The objective is mounted in a brass cell with [[magic-lantern-objective-mount|helical threads]] allowing the operator to [[magic-lantern-focus-screw|focus]] the image on the screen by rotating the cell. An [[magic-lantern-objective-stop|aperture diaphragm]] inside the cell limits the effective lens diameter, improving image sharpness and reducing vignetting.

Objective optical quality varies widely. Early objectives (1600s–1800s) were simple, often showing significant optical aberrations. 19th-century achromatic objectives (corrected for chromatic aberration) were much superior. Premium lantern objectives approached 2–3% distortion, acceptable for that era but high by modern standards.

Optical Alignment

Precise alignment of the [[magic-lantern-optical-axis|optical axis]] is essential for bright, sharp projection. The lamphouse, condenser lenses, slide, and objective must all be co-linear (aligned on the same axis). The lantern body is designed to enforce this alignment: [[magic-lantern-alignment-rails|rigid alignment rails]] fix the positions of all optical elements relative to the base.

[[magic-lantern-centering-adjustment|Centering adjustment screws]] allow small transverse shifts to correct for minor misalignment. The [[magic-lantern-focus-screw|focus screw]] is the only element that moves during operation—the objective is advanced or retracted to bring the image on the screen into sharp focus.

This mechanical rigor (as opposed to optical benches used in laboratories) ensures repeatable setup and reliable performance by non-specialist operators.

Chimney and Ventilation

The [[magic-lantern-chimney|chimney]] is a metal tube (brass or iron, 50–100 mm diameter) extending upward from the lamphouse. It serves two critical functions:

1. Heat dissipation: Hot air rises naturally, creating a draft that carries heat away from the optical elements and slide. This passive convection (without forced air blowers) helps maintain safe temperatures.

2. Draft control: A [[magic-lantern-damper-valve|damper valve]] (adjustable blade) throttles the draft, allowing the operator to balance heat removal against light output. Over-strong draft can cool the lamp flame, reducing output; under-ventilation risks overheating.

Stand and Mechanical Support

The [[magic-lantern-stand|stand assembly]] supports the lantern and allows adjustment for aiming the projection. It consists of:

• [[magic-lantern-base-platform|Base platform]]: A stable foot (cast iron or heavy wood, ~300 × 400 mm) preventing tipping.
• [[magic-lantern-vertical-post|Vertical post]]: An adjustable column (telescoping or screw-adjustable) for height control.
• [[magic-lantern-tilt-joint|Tilt joint]]: A ball-and-socket or sliding joint allowing angular adjustment (pitch and yaw), aiming the projection toward the screen.
• [[magic-lantern-handle|Handle]]: A grip for carrying or repositioning the entire lantern assembly.

Many lanterns were portable—compact enough for traveling lanternists to transport between towns, yet sturdy enough to withstand years of use.

Image Quality and Projected Appearance

Projected images from magic lanterns are characteristically:

• Dim in well-lit rooms: Requiring semi-darkness for visibility. This drove the popularity of evening entertainment and theatrical use.
• Soft-edged and slightly diffuse: Optical aberrations and diffraction effects produced a glow around bright areas, giving images a dreamy quality valued in entertainment.
• Color-rich (if hand-colored slides): Multiple translucent paint layers on glass produced saturated, luminous colors when backlit.
• Limited contrast: Early photographic slides had modest density ranges, resulting in washed-out shadows and blown-out highlights by modern standards.

Despite these limitations, magic lantern images captivated audiences. The combination of a large projected image, dim surroundings, and narrative storytelling created a powerful visual experience—the closest 19th-century equivalent to cinema.

Applications and Legacy

Magic lanterns dominated:

• Entertainment: Traveling shows ("lantern displays") featuring exotic lands, moral tales, scientific phenomena.
• Education: Classroom projection of diagrams, historical engravings, scientific illustrations.
• Religion: Church projection of biblical scenes and moral lessons (particularly in missionary education).
• Science and research: Projection of microscope images (using an adapter) and astronomical phenomena.
• Theater and special effects: Projection of backdrops and atmospheric effects (clouds, water, fire).

The introduction of motion pictures (1895 onward) eventually displaced magic lanterns for entertainment. However, educational lantern use persisted well into the 20th century, with slide projection (using electric light sources) remaining standard in classrooms and lecture halls until the advent of digital projectors (1990s–2000s).

Magic lanterns are now primarily museum pieces and collector items. Restored antique lanterns are valued for their mechanical elegance and historical significance. Modern hobbyists and historians use magic lanterns to experience 19th-century optical culture and to project hand-colored slides, keeping the tradition alive.
