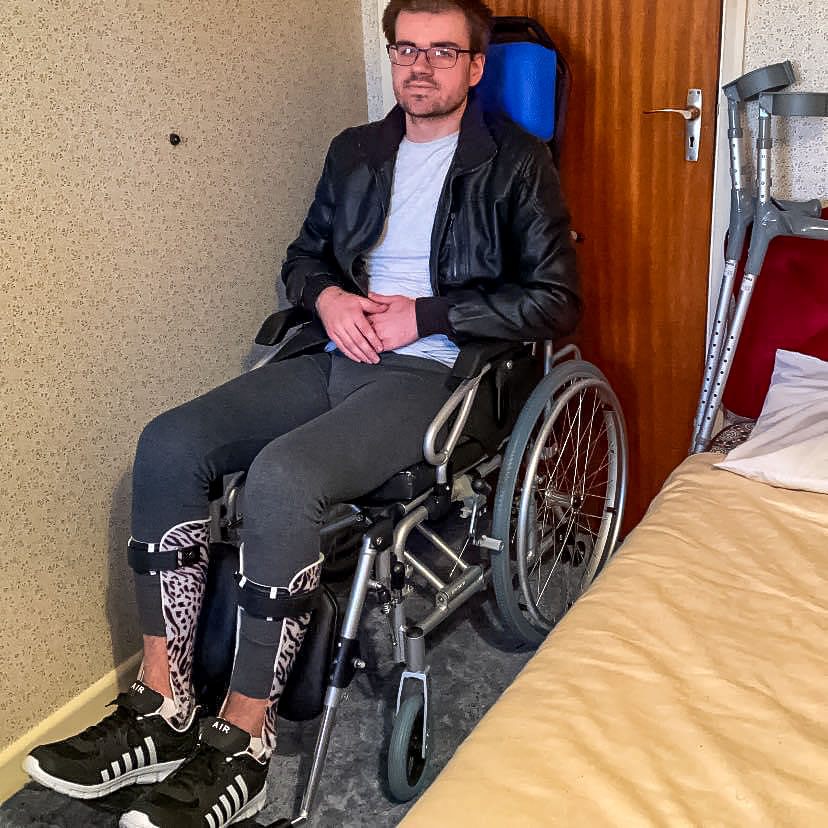

Manual Wheelchair Product

Overview

A manual wheelchair is a self-propelled mobility device allowing individuals with lower limb disabilities, paralysis, or mobility impairment to move independently. The user grasps a handrim attached to each drive wheel and pushes to propel themselves forward, backward, or to turn. Unlike motorized wheelchairs, manual chairs require upper-body strength and coordination but offer lower cost, light weight, improved maneuverability in tight spaces, and no dependence on batteries or charging infrastructure—advantages that make manual wheelchairs the global standard for mobility assistance in developing regions and the preferred mode for active wheelchair users.

The chair comprises a Main Wheelchair Frame (welded steel or aluminum tubing), two Drive Wheel Assembly (Large Wheel) (large 24-inch diameter wheels), two Front Caster Assembly (Small Wheel) (small 8-inch swivel wheels), Handrim (Push Rim) Assembly (push rims), a Mechanical Brake System (hand-operated rim brakes), and upholstered Seat Assembly (Suspended / Sling), Backrest Assembly, Footrest Assembly, and Armrest Assembly. Most wheelchairs fold by opening the seat via a central hinge, allowing storage in a car trunk or transport by plane.

Frame structure

The Main Wheelchair Frame is typically welded steel (lighter, cheaper) or aluminum (lighter, more expensive, less rigid). The two main rails (left and right side frames) run from the rear wheel Wheel Hub (Center) forward and upward to the front Caster Fork Tube. Cross-bracing (Cross-Member Brace) prevents racking (lateral deformation under side loads).

The Seat Pan Support Frame is a four-bar linkage in folding chairs, meaning the seat rails connect to the main frame via pivots that allow the seat to hinge closed (like closing a book). In rigid non-folding wheelchairs, the seat pan bolts directly to fixed frame rails. The Folding Mechanism Hinge at the center of the frame allows the left and right side frames to hinge toward each other, reducing the chair width from 65 cm (seated position) to ~25 cm (folded).

A Caster Fork Assembly at the front of the frame pivots upward to support a Swivel Mechanism (a thrust-bearing assembly that allows 360° rotation of the caster wheel), enabling turning without moving the chair forward or backward.

Drive wheels and propulsion

The Drive Wheel Assembly (Large Wheel) are 24 inch pneumatic-tire wheels (a standard size, trademarked as "24 inch" though the outer diameter is actually ~27 inches). The Wheel Rim is aluminum or steel, usually single-wall to minimize weight. Spokes (Wire) (stainless steel wire, 36-spoke pattern) distribute loads evenly and allow spoke tension adjustment for true (non-wobbling) wheels.

The Wheel Hub (Center) houses two or four Wheel Ball Bearings per wheel, mounted on a Axle Shaft that extends left and right. The axle is typically fixed to the frame (non-quick-release) on standard chairs, though sports wheelchairs often use quick-release hubs for rapid removal.

A manual-wheelchair-handrim (25 mm diameter aluminum or steel tube) is bolted concentrically to the wheel hub, slightly offset (10–15 cm) from the wheel rim to provide optimal leverage. The user grasps the handrim and pushes downward and backward to propel the chair forward; the mechanical advantage depends on the handrim radius and the gear reduction (ratio of handrim radius to wheel radius, typically 0.4–0.5, meaning the hand moves about half the distance the wheel travels, but with twice the force advantage).

Casters and steering

The Front Caster Assembly (Small Wheel) are 8 inch pneumatic or solid polyurethane wheels, much smaller than drive wheels. They swivel via the Swivel Mechanism—a thrust bearing that allows the Caster Fork Assembly to rotate about a vertical axis. The caster weight (typically 1–2 kg per wheel assembly) is much less than a drive wheel, reducing the chair's overall weight and improving maneuverability.

Casters trail behind the pivot axis of the wheelchair, which creates caster flutter (jitter) on rough surfaces. Castor design (trail length, camber angle, and spindle length) affects stability and turning effort, and manufacturers optimize these parameters for different uses (quick sports chair vs. stable everyday chair).

Brakes

The Mechanical Brake System prevents roll-away when the user is stationary. The simplest design is a rim brake: a Brake Control Lever mounted on each side frame is pulled toward the user by hand. This lever operates a cable (Brake Cable, 2–3 mm wire rope) that runs down the frame to a manual-wheelchair-brake-pad (rubber or polymer block) mounted on the frame behind the drive wheel.

When the lever is pulled, the cable tension pulls the pad against the tire, generating friction that slows and stops the wheel. The cable has a mechanical lock (a pawl or ratchet mechanism, or friction lock) that keeps the lever pulled until deliberately released. Some wheelchairs use drum brakes (mechanical brakes mounted on the wheel hub) but these are less common on manual chairs.

A Brake Return Spring spring pulls the pad away from the tire when the lever is released, allowing free wheel rotation. The manual-wheelchair-limit-switches or simple friction alone prevent the lever from drifting back.

Seating and comfort

The Seat Assembly (Suspended / Sling) is typically a sling (fabric suspended between the seat rails) or a padded seat pan. The sling style uses Seat Fabric Cover (nylon or vinyl webbing, sometimes with a foam backing) attached to the frame via Velcro or stitching. The Seat Foam Padding (if present) is 2–3 cm of closed-cell polyethylene or polyurethane.

The sling stretches and sags slightly under body weight, creating a gentle hammock that distributes pressure relatively evenly across the buttocks. This is lighter and more packable than a rigid pan, but offers less support for users with poor trunk control.

Rigid seat pans (plastic or plywood) provide more stability and support for active transfer (standing-then-sitting) maneuvers, and some include pressure-relief openings for catheter users. The Suspension Strap attach the seat corners to the frame, adjustable to change seat depth and support.

The Backrest Assembly is a hinged or fixed fabric panel (typically nylon or vinyl over aluminum tubing) that provides posterior support for the trunk. Height is usually 30–40 cm (low back only, allowing shoulder mobility for propulsion), though extended backrests (50+ cm) are available for users with limited trunk control. The Back-Hinge Assembly on many models allows the backrest to fold forward, opening the chair width-wise for transfers or reducing footprint for storage.

Footrests and armrests

The Footrest Assembly is a removable or swing-away platform supporting the feet and legs. It typically hangs from the front of the chair (ahead of the main frame), preventing the footrest from hitting the drive wheels during turning. A Swing-Away Hinge with Lock (swing-away mechanism) allows the footrest to be swung 90° to the side for standing transfers, and a pin or lever locks it in place to prevent accidental movement.

The Armrest Assembly (left and right) are fixed or removable side supports. Fixed armrests are welded or bolted to the frame and cannot be removed (lower cost, more rigid). Removable armrests (bolt-on or quick-disconnect) allow transfers: the user lifts an armrest or pulls a quick-release pin, swings the arm away, then transfers onto or off the chair sideways.

Armrest height is typically 20–25 cm above the seat, supporting the forearms and providing a surface for the user to push off when transferring to bed or toilet.

Caster system and mobility

The manual-wheelchair-caster-system comprises the caster wheels, bearings, and swivel mechanism. All five wheels are fitted with manual-wheelchair-caster-locking-brakes—foot-operated cam brakes that lock the caster swivel (preventing rotation) or the wheel itself. These are used when:

• Propelling the wheelchair uphill or through sand (lock swivel for straight-line traction)
• Performing lateral transfers (lock swivel and wheel to prevent chair movement)
• Parking on slopes

Most users leave casters unlocked during normal propulsion, relying on friction between the caster wheel and ground to provide self-aligning stability.

Clinical and everyday use

A user with spinal cord injury propels themselves by pushing the handrims with their arms. Speed and distance depend on upper-body strength, endurance, and technique. Experienced users can achieve 4–5 mph on smooth floors, navigate curbs using wheelies (balancing on the two drive wheels), and traverse rough terrain with some difficulty.

The manual wheelchair remains the most common wheelchair globally because it requires no electricity, has minimal maintenance (occasional spoke truing, tire inflation, brake pad replacement), is affordable (~$400–$1500 for a standard model), and—unlike powered chairs—can be used in settings without electricity or charging infrastructure. It is the de facto standard in low-income countries and remains preferred by active wheelchair users in developed nations for daily use and sports.
