Marine Toilet Product

Overview

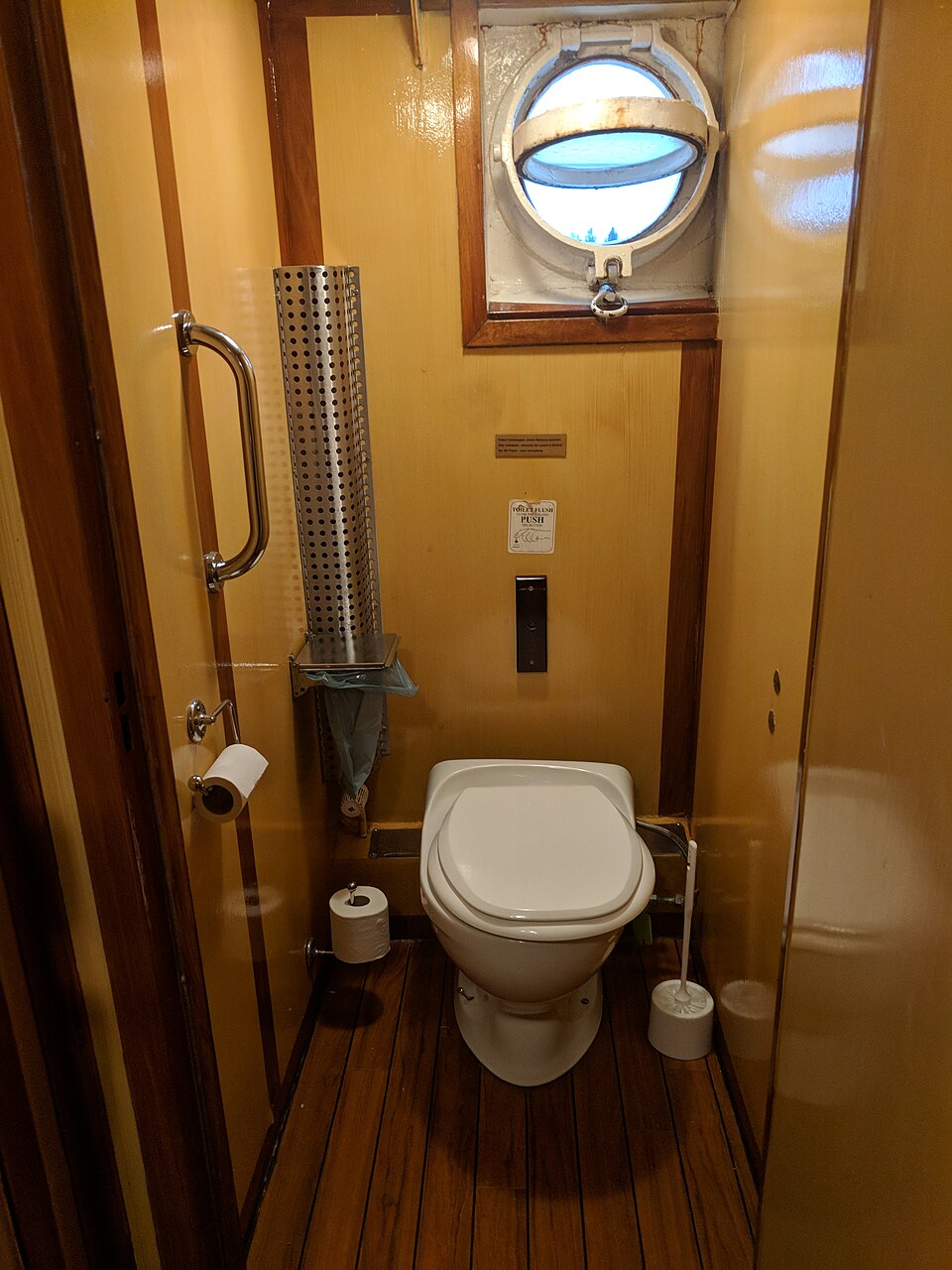

A marine toilet, or head, is the seagoing version of a sanitation device, engineered to work in the confined, moving spaces of a ship's cabin and to handle both salt and fresh water in applications where traditional plumbing cannot exist. Unlike a shore toilet fed by municipal water pressure and gravity-drained into a sewer main, a marine toilet draws water from an open through-hull fitting called a seacock (fed by the sea itself, or by a freshwater tank below deck) and discharges waste either directly overboard through another through-hull fitting or into a holding tank. The core design problem is preventing backflow: when the vessel rocks or waves slosh, seawater can siphon backward up the discharge line into the bowl, so a Joker Valve (Anti-Siphon) breaks that siphon by admitting air.

The Bowl Assembly is typically vitreous china—the same material as a household toilet—but the plumbing around it is the innovation. A Flush Pump Unit (either hand-pumped or electric) draws water through the Water Intake System and flushes the bowl, while the Discharge / Waste System carries waste away. Isolation valves and a vent system prevent trapped air and allow the crew to stop the flow if a hose ruptures.

How it works

The operator pulls the flush handle or presses a button, commanding the Flush Pump Unit to draw water from a seacock or tank. The pump (a piston-driven hand pump or a low-voltage DC motor driving an impeller) pushes pressurized water through the Flush Rim Ring and around the Ceramic Bowl perimeter, scouring the bowl. Meanwhile, waste inside the bowl is forced down the integral Ceramic Bowl trapway by the flush stream.

The discharged mix of waste and flush water exits the bowl through a 1.5-inch hose routed to the Discharge / Waste System. That line runs to either an overboard Overboard Fitting (a through-hull elbow with anti-siphon tube) or a holding tank below deck. The critical component is the Joker Valve (Anti-Siphon), a spring-loaded one-way flapper mounted in the discharge line that allows waste out but seals shut when sea pressure or wave motion would push seawater backward into the bowl. The flapper also serves as an air vent: when the pump stops and the line depressurizes, the flapper cracks open slightly, admitting air and breaking any siphon that might otherwise draw seawater up into the cabin.

The Water Intake System includes a Seacock (a bronze through-hull ball valve) that the crew can close if the hose bursts. A Strainer Basket upstream of the pump catches kelp, sand, and other debris that would clog the pump. Manual models have a simple hand pump; electric models use a small impeller pump powered by the boat's 12V or 24V battery system. The Discharge / Waste System also includes isolation valves so the crew can shut off discharge if there is a leak, and a vent cock so they can manually break a siphon if the joker valve sticks.

The whole assembly is mounted to the cabin sole (deck) through the Mounting Hardware, with a Deck Flange finishing the opening and a Seat & Cover Assembly providing ergonomic comfort and weather protection for the bowl.

Standards and maintenance

Most marine toilets must meet IMO MARPOL Annex IV and EPA Type III MSO (Marine Sanitation Device) regulations. Holding tanks are mandated in certain waters; overboard discharge is restricted within 3 nautical miles of shore in U.S. waters. Manual models are favored by cruisers because they do not depend on battery power; electric models are faster and less physically demanding, but require a charged battery and wiring. Hoses must be sanitary-grade (not garden hose) to resist mold and odor. Seacocks must be opened when the boat is in use and closed when moored unattended, to prevent backflow siphoning seawater into the cabin if a hose ruptures.
