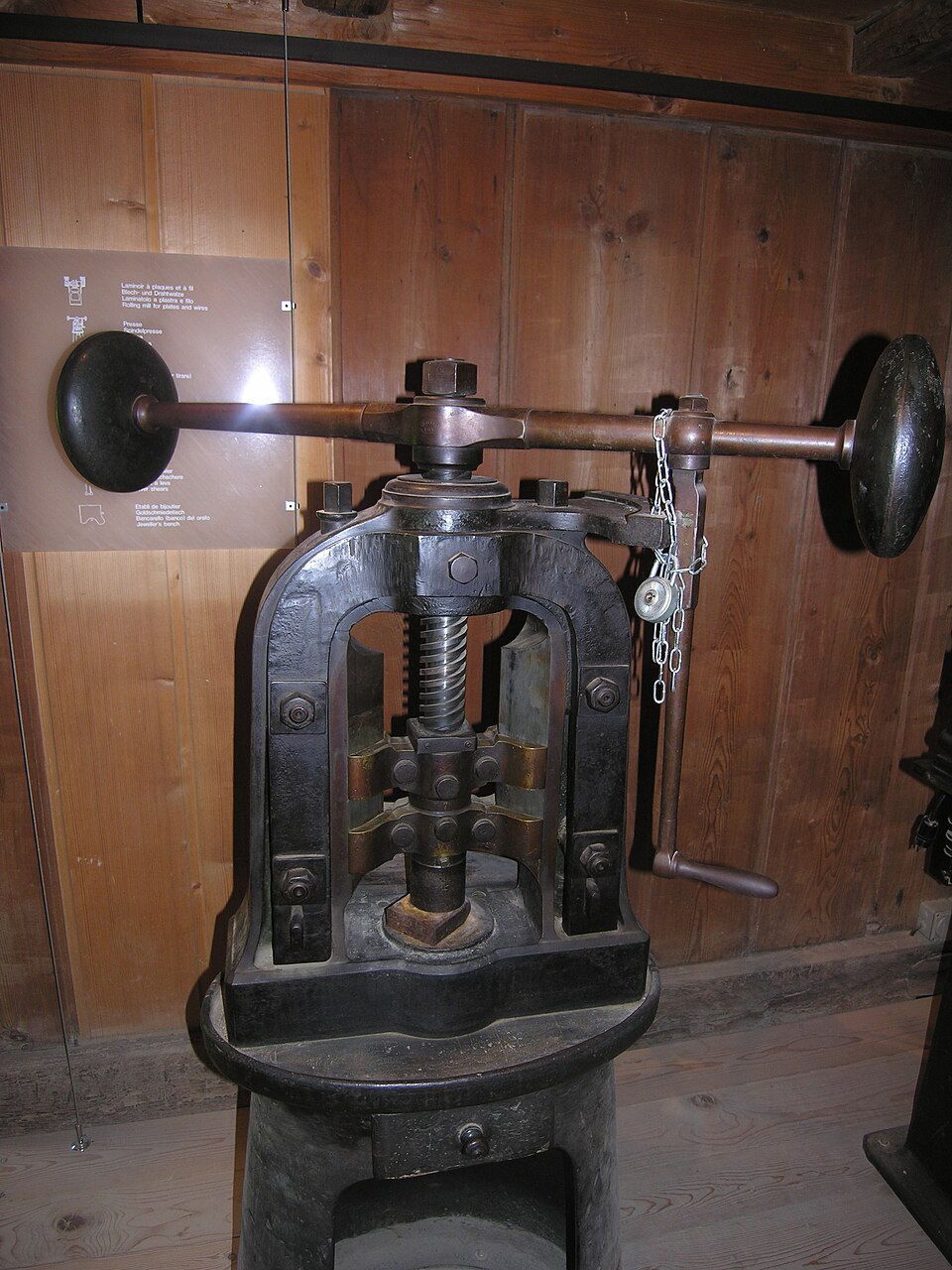

Mechanical Stamping Press Product

Overview

A mechanical stamping press is a reciprocating machine that converts rotational motion from an electric motor into rapid vertical linear motion of a hardened steel ram (called the slide). The slide compresses workpieces—typically sheet metal, powder, or plastic—against a lower die mounted on a massive bolster plate. The crankshaft and flywheel form the kinetic heart of the machine: as the crankshaft rotates at constant speed, its offset throws drive the connecting rod and slide up and down hundreds of times per minute. The Flywheel acts as an energy reservoir, smoothing the speed variations that occur during the high-shock moment of impact. Mechanical presses dominate metal-stamping plants because they are simple, durable, and efficient for high-volume repetitive operations. Unlike hydraulic systems, they require no fluid pressurization and generate consistent, predictable force at every point in the stroke.

How it works

The process begins with a Motor Housing-mounted Stator Assembly and Rotor Assembly spinning the crankshaft at constant rpm. The Frame Uprights and Top Crossbeam form a rigid C-shaped backbone that resists the enormous reaction forces from stamping. The Crankshaft is the kinematic core: its eccentric throws are offset from the rotation axis, so one complete revolution drives the slide from its highest point (top dead center) down to the workpiece, impact, and back up again. The connecting rod, Connecting Rod, is a rigid link between the crank pin and the slide block, transmitting the compressive and tensile forces that arise during pressing.

Energy delivery is not uniform: at the start of the downstroke, inertial forces are low, but as the slide approaches the workpiece, deceleration forces spike dramatically. The Flywheel stores rotational kinetic energy throughout the complete revolution, releasing it on demand to maintain crankshaft speed despite the shock. The larger the flywheel and the faster its rpm, the more smoothly the crankshaft turns and the more consistent the pressing force becomes.

The Clutch-Brake Unit is the safety and control interface: when engaged, the electromagnetic clutch friction pack connects the motor-driven crankshaft to the main drive. When disengaged, the brake pack instantly clamps the brake drum, stopping the crankshaft and locking the slide at bottom dead center so operators can safely extract finished parts and load new blanks. Most mechanical presses are controlled by foot pedal: a short press engages the clutch for one full cycle, and release immediately triggers the brake.

The slide itself, the Slide Block, is hardened steel traveling in precision-ground Guide Posts that ensure zero lateral runout—critical for part accuracy and die life. The upper die is clamped to the slide via the Die Mounting Plate using quick-change die clamps. Below, the lower die is bolted to the Bolster Plate, a massive steel beam anchored to the Base Plate. Dies are custom-shaped steel tools that compress the blank into the final form; an upper die descends into a cavity-shaped lower die, and the metal flows and deforms to fill the cavity, producing the stamped part.

Mechanical stamping works because the slide stroke is mechanically fixed: the depth of deformation is determined solely by the die geometry and the mechanical linkage geometry—no feedback control is needed. This determinism, combined with high-speed repetition (300 strokes per minute is routine), makes mechanical presses the workhorse of mass production. Stamped parts range from automotive body panels and hardware to appliance components and electrical components.

Mechanical advantage and force scaling

The Crankshaft geometry determines the mechanical advantage curve. Near bottom dead center (the point of impact), the connecting rod is nearly vertical, and a small input torque translates into very large linear force. For example, a 10-ton press might only need a 5 kW motor because the mechanical advantage at impact is roughly 20:1. However, at the start of the downstroke when the connecting rod is nearly horizontal, the same motor must accelerate the slide mass, and the mechanical advantage is much lower. The Flywheel compensates for this variation, storing energy when torque demand is low and releasing it when demand spikes.

Die sets and runout control

Precision guide posts and bushings keep the slide runout under 0.05 mm to ensure that the upper die aligns perfectly with the lower die on every stroke. Misalignment causes uneven metal flow, part defects, and accelerated die wear. High-capacity presses often use four guide posts instead of two for added stiffness. The Guide Straps prevent side-to-side rocking by constraining lateral deflection.

Lubrication and maintenance

The crankshaft main journals and connecting rod bearings are flood-lubricated with circulating oil; the guide posts are grease-lubricated. The clutch friction pack and brake pack require periodic inspection and replacement as they wear. The flywheel and crankshaft must be balanced to within 6.3 mm/s at nominal speed, or vibration will accelerate bearing wear and create fatigue cracks in the frame.

Safety interlocks

Modern mechanical presses integrate safety systems: palm buttons (both hands required to start a cycle), light-curtain barriers around the die area, and two-hand control circuits that prevent single-button actuation. Older machines relied solely on operator discipline and foot-pedal guards.
