Tape Measure Product

Overview

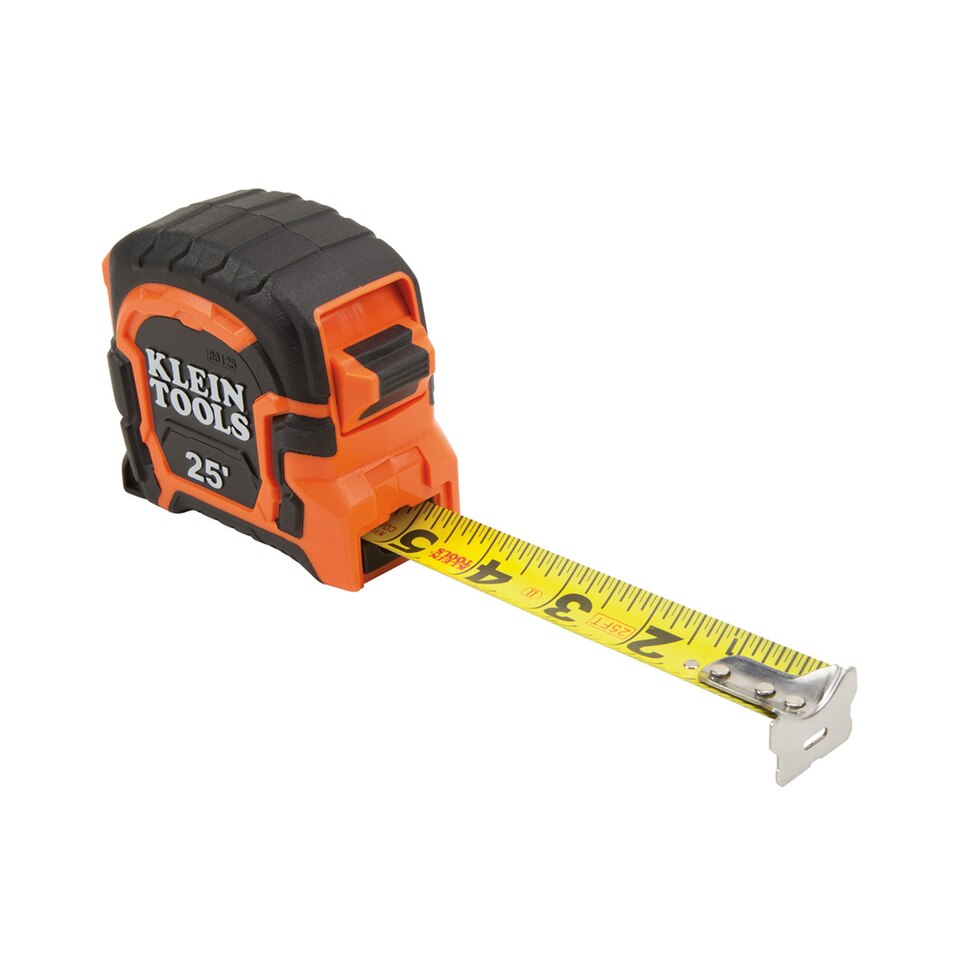

A tape measure is a precision instrument for measuring distance from 0 to 25 feet (or up to 50 feet in industrial models). The core is a Coil Spring Assembly—a flat steel ribbon coiled under tension inside a Case Assembly. The Measuring Blade is the thin graduated tape that you pull out of the case; when released, the spring automatically rewinds it back inside.

The design is elegant in its simplicity: you pull the Measuring Blade out as far as you need, and the Blade Hook Assembly catches on the object you're measuring. A Lock Button Assembly engages a Brake Pad to hold the tape in place while you record the measurement. Release the button, and the spring pulls the tape back in at high speed.

The tape is marked with feet on one side and metric units on the other (or both on one side), with 1/8 inch and 1 cm divisions for accuracy. Professional construction workers use 25 ft tape measures for framing; renovators use 16 ft tapes; craftspeople might prefer 12 ft for detail work. The tape retraction speed is fast enough that if you release the button abruptly, the winding Coil Spring Assembly can pinch your fingers, so caution is necessary.

How it works

The Coil Spring Assembly is a pre-wound flat steel ribbon, much like a watch spring. One end is anchored to a central Spring Arbor (the hub), and the ribbon is wrapped around it in a tight spiral, held under tension by the Spring Cover.

The Measuring Blade is actually the free (outermost) end of the spring ribbon. As you pull it out, the spring unwinds, resisting your pull. The Blade Steel is tempered (heat-treated) to hold the uncoiled shape without curling; the Blade Markings are printed or etched onto the surface.

At the end of the tape is the Blade Hook Assembly—a hooked tab that catches on edges. The hook has a small Hook Slot that allows ±1/8 inch play; this compensates for the hook's own thickness when measuring inside versus outside dimensions. If you're measuring from a wall edge to a point, the hook's thickness is part of the measurement, so the slot lets you hook on and get an accurate reading.

The Lock Button Assembly is a button on the case that, when pressed, engages a Brake Pad against the Spring Arbor. The pad presses against the arbor's circumference, creating friction that stops the spring from unwinding further. When you release the button, the Button Spring pushes the brake pad away, and the spring unwinds at high speed, retracting the tape.

The Case Assembly houses the entire assembly. It is typically injection-molded polypropylene for affordability or die-cast aluminum for durability. The Blade Exit Window is a slot through which the Measuring Blade exits; the Case Grip is a knurled or rubberized band for comfortable grip.

Rewind happens automatically when you release the button. The Arbor Bearing is a low-friction axle that allows the Spring Arbor to spin freely at high speed. A Drive Gear or pulley may transfer torque, but many designs have the Measuring Blade wound directly on the arbor.

Accuracy and wear

A new tape measure is typically accurate to ±1/16 inch over 25 feet (±1.6 mm over 7.6 m), which is Class I in NIST standards. After years of use, the Blade Steel can develop kinks, and the Blade Markings can wear off. A kinked or creased blade will snap easily if you try to retract it, so care in handling is important.

The Coil Spring Assembly loses tension over 5–10 years. If the spring weakens, it no longer pulls the blade back in at high speed; the rewind becomes sluggish. At this point, replacement is usually cheaper than re-tensioning the spring, which is not a field-serviceable operation.

The Brake Pad wears out over time. If the pad becomes glazed or flat, the brake won't grip as well and the tape may slip. Replacement pads are available but require disassembly.

Field techniques

Professional tape measures are used at angles—hooked on a nail 12 feet up, then measured down to the ground. The Blade Steel must be stiff enough to hold its length without sagging; a cheaper, thinner blade sags and gives inaccurate measurements. The Blade Ferrule at the tip prevents the blade from rolling or twisting.

Many users "burn in" the first foot of the tape by hitting it with a hammer or running a car wheel over it, creating a slight curl so it holds its shape when extended. This is informal and not recommended by manufacturers, but it's a common field practice.

The Blade Hook Assembly can bend if you drop the tape or kink the blade sharply. A bent hook can usually be straightened with a mallet, but repeated bending work-hardens the metal and eventually it will snap.

Safety

The main hazard is finger pinching when the Coil Spring Assembly rewinds. Release the button gently to avoid sudden high-speed retraction. Pinched fingers between the Measuring Blade and the Blade Exit Window are common injuries in construction sites.

A snapped blade under tension can whip back into your face, so wear safety glasses when working with tape measures around other people.
