Microfilm Scanner Product
Overview

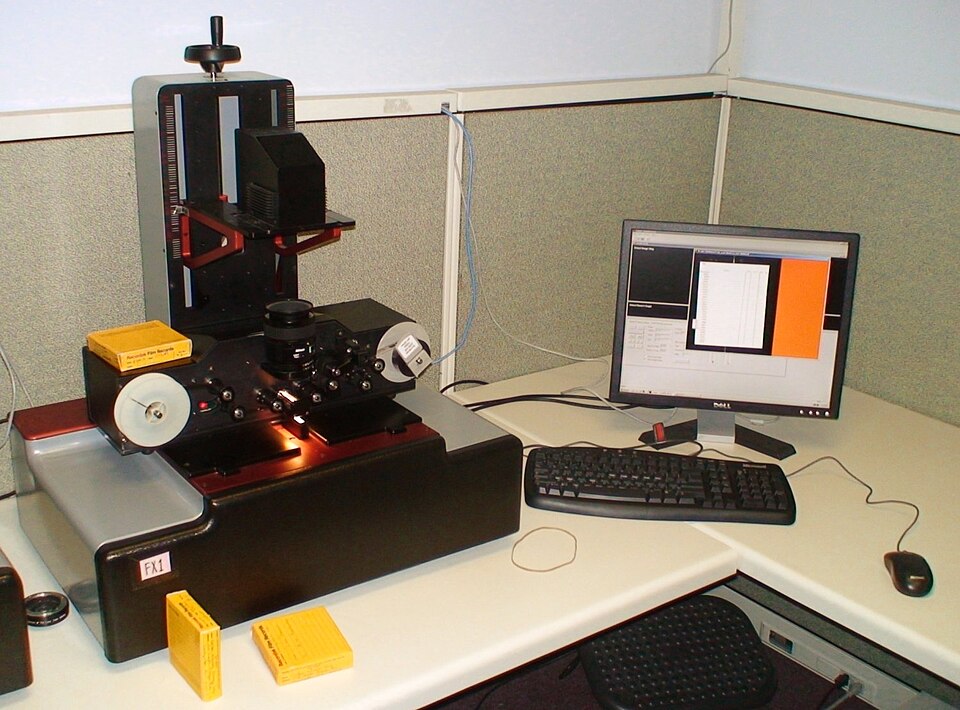

Microfilm was the archival storage medium of the twentieth century: newspapers, bank records, court documents, and library collections were photographed at 7× to 105× reduction onto 16 mm and 35 mm film, on the strength of a 500-year rated life for silver-halide stock. A microfilm scanner is the machine that brings those archives back out — transporting roll film continuously past a line-scan sensor and reconstructing each photographed page as a digital image. Production machines digitise an entire 30 m roll, several thousand frames, in minutes.
The architecture is a film projector crossed with a document scanner. The Film Transport moves film from the Supply Spindle through the Film Gate to the Take-Up Spindle; the Illumination Unit backlights the film; the Imaging Optics relay the frame onto the Line-Scan Sensor Module; and the Control Electronics assembles, segments, and ships the images.
Line-scan imaging
Unlike a camera that captures a whole frame at once, the line-scan CMOS Image Sensor sees only a single row of 7,000–14,000 pixels spanning the film width. The second image dimension comes from the film's own motion: as film passes the sensor line at constant velocity, successive row readouts stack into a continuous ribbon image of the entire roll. This is why transport quality is image quality. The Encoder on the film path clocks the sensor readout so each row corresponds to an equal increment of film travel; any speed ripple would stretch or compress the image locally, and any lateral weave shows as wavy text lines. The Tension Dancer Arm feedback keeps the servos from ever snatching at film that may be 70 years old and brittle.
Geometric precision is set by small parts. The Sensor Alignment Mount squares the pixel line to the travel direction — a misalignment of 0.1° skews every page. The Gate Plate Pair hold the film within the lens depth of field, around ±25 µm at these magnifications, with Gate Glass Flat pairs pressing curled stock flat, and the Autofocus Stage trimming focus from measured image contrast as film thickness varies along a splice-laden roll.
Illumination and tonal calibration
Microfilm is a transmissive original with enormous density range: clear base around density 0.1, dense silver blacks above 3.0 — a 1000:1 transmission ratio. The LED Light Bar behind the Diffuser Panel must hold output constant to a fraction of a percent across the width and across hours of scanning, which is why the LEDs are current-stabilised and temperature-anchored on the LED Heatsink. Before each run the machine scans the Calibration Target and clear film base to flat-field the sensor: per-pixel gain and offset corrections that remove illumination roll-off and pixel response non-uniformity. Most output is 8-bit grayscale, thresholded to bitonal TIFF G4 for text documents, where adaptive binarisation must separate faded text from stained or vignetted backgrounds.
Finding the frames
A roll is a continuous ribbon; the scanner must cut it into document images. Two methods coexist. Blip-indexed film, common in business records, carries small rectangular marks along one edge — one size per document, larger sizes for batch boundaries — read by the Blip Mark Sensor, giving exact frame addressing and even random access ("go to document 4,512"). Unindexed archival film relies on image processing in the Compute SoC Module: detecting the dark or clear gaps between exposures, handling duplex layouts (two document streams side by side on 16 mm film), rotated frames, and newspaper pages spanning multiple exposures. Frame detection errors are the main source of rescans, so production software previews segmentation before committing a roll.
Throughput and workflow
A production scanner runs film at several metres per minute, equivalent to 100–300 frames per minute, streaming over USB 3.0 or Ethernet while the Image Buffer RAM buffers frames for deskew, cropping, and compression. The Auto-Load Mechanism threads each new roll without manual leader-lacing, which matters when a digitisation project means tens of thousands of rolls. Downstream, OCR converts the images to searchable text — the step that turns a microfilm archive from preserved into usable.
The machines occupy a narrowing but steady niche. Billions of frames remain undigitised in government, newspaper, and genealogical archives, and microfilm is still written today as an analogue preservation copy of born-digital records, precisely because a strip of film with a loupe needs no file format, reader software, or migration policy — only the kind of machine described here when bulk access is wanted again.
Build & assembly graph
expand / collapse · shared sub-assemblies converge · links to related products · est. labourTap an assembly to expand/collapse · tap a part to open it · use “Open page” for any node · drag to pan, scroll to zoom.
Bill of materials
10 top-level lines · 52 rows shown · 348 parts total · indented to 3 levels| # | Item / sub-assembly | Part no. | Qty/assy | Ext. qty | Parts | Type |
|---|---|---|---|---|---|---|
| 1 | Film Transport 7 parts | microfilm-scanner-transport | 1× | 1 | 60 | assembly |
| 1.1 | Supply Spindle | microfilm-scanner-supply-spindle | 1× | 1 | — | part |
| 1.2 | Take-Up Spindle | microfilm-scanner-takeup-spindle | 1× | 1 | — | part |
| 1.3 | Servo Motor 4 parts | servo-motor | 2× | 2 | 24 | assembly |
| 1.3.1 | Stator Assembly 3 parts + deeper › | stator-assembly | 1× | 2 | 3 | assembly |
| 1.3.2 | Rotor Assembly 4 parts + deeper › | rotor-assembly | 1× | 2 | 19 | assembly |
| 1.3.3 | Encoder | encoder | 1× | 2 | — | part |
| 1.3.4 | Motor Housing | motor-housing | 1× | 2 | — | part |
| 1.4 | Tension Dancer Arm | microfilm-scanner-tension-arm | 2× | 2 | — | part |
| 1.5 | Guide Roller | microfilm-scanner-guide-roller | 6× | 6 | — | part |
| 1.6 | Encoder | encoder | 1× | 1 | — | part |
| 1.7 | Auto-Load Mechanism | microfilm-scanner-autoload | 1× | 1 | — | part |
| 2 | Film Gate 5 parts | microfilm-scanner-film-gate | 1× | 1 | 8 | assembly |
| 2.1 | Gate Plate Pair | microfilm-scanner-gate-plates | 1× | 1 | — | part |
| 2.2 | Gate Glass Flat | microfilm-scanner-glass-flat | 2× | 2 | — | part |
| 2.3 | Gate Opener | microfilm-scanner-gate-opener | 1× | 1 | — | part |
| 2.4 | Coil Spring | coil-spring | 2× | 2 | — | part |
| 2.5 | Anti-Static Brush | microfilm-scanner-dust-brush | 2× | 2 | — | part |
| 3 | Line-Scan Sensor Module 5 parts | microfilm-scanner-sensor-module | 1× | 1 | 64 | assembly |
| 3.1 | CMOS Image Sensor | image-sensor | 1× | 1 | — | part |
| 3.2 | Sensor Carrier Board | microfilm-scanner-sensor-board | 1× | 1 | — | part |
| 3.3 | Analog Front-End / ADC | microfilm-scanner-adc | 1× | 1 | — | part |
| 3.4 | Sensor Alignment Mount | microfilm-scanner-sensor-mount | 1× | 1 | — | part |
| 3.5 | SMD Passive (R/C/L) | smd-passives | 60× | 60 | — | part |
| 4 | Imaging Optics 5 parts | microfilm-scanner-optics | 1× | 1 | 5 | assembly |
| 4.1 | Lens Assembly | camera-lens | 1× | 1 | — | part |
| 4.2 | Magnification Stage | microfilm-scanner-zoom-stage | 1× | 1 | — | part |
| 4.3 | Autofocus Stage | microfilm-scanner-focus-stage | 1× | 1 | — | part |
| 4.4 | Fold Mirror | microfilm-scanner-fold-mirror | 1× | 1 | — | part |
| 4.5 | Lens Cell | microfilm-scanner-lens-cell | 1× | 1 | — | part |
| 5 | Illumination Unit 5 parts | microfilm-scanner-illumination | 1× | 1 | 5 | assembly |
| 5.1 | LED Light Bar | microfilm-scanner-led-bar | 1× | 1 | — | part |
| 5.2 | Diffuser Panel | microfilm-scanner-diffuser | 1× | 1 | — | part |
| 5.3 | LED Driver Board | microfilm-scanner-led-driver | 1× | 1 | — | part |
| 5.4 | LED Heatsink | microfilm-scanner-heatsink | 1× | 1 | — | part |
| 5.5 | Calibration Target | microfilm-scanner-cal-strip | 1× | 1 | — | part |
| 6 | Control Electronics 7 parts | microfilm-scanner-controller | 1× | 1 | 193 | assembly |
| 6.1 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 6.2 | Compute SoC Module | soc-module | 1× | 1 | — | part |
| 6.3 | Microcontroller | mcu | 1× | 1 | — | part |
| 6.4 | Image Buffer RAM | microfilm-scanner-ram-bank | 1× | 1 | — | part |
| 6.5 | Connector | connector | 8× | 8 | — | part |
| 6.6 | SMD Passive (R/C/L) | smd-passives | 180× | 180 | — | part |
| 6.7 | Blip Mark Sensor | microfilm-scanner-blip-sensor | 1× | 1 | — | part |
| 7 | Chassis and Covers 4 parts | microfilm-scanner-chassis | 1× | 1 | 10 | assembly |
| 7.1 | Optical Base Casting | microfilm-scanner-base-casting | 1× | 1 | — | part |
| 7.2 | Sheet Metal Panel | sheet-panel | 4× | 4 | — | part |
| 7.3 | Access Lid | microfilm-scanner-access-lid | 1× | 1 | — | part |
| 7.4 | Isolation Foot | microfilm-scanner-isolation-feet | 4× | 4 | — | part |
| 8 | Power Supply | power-supply | 1× | 1 | — | part |
| 9 | Wire Bundle | wire-bundle | 1× | 1 | — | part |
| 10 | Fastener Set | fastener-set | 1× | 1 | — | part |
Sourcing — likely vendors
Companies that make this · indicative price $100–$8k · MOQ & lead are typical| Vendor | HQ | Specialty | MOQ | Lead time |
|---|---|---|---|---|
| 🇯🇵Canon canon.com ↗ | Tokyo, JP | Imaging & optics | 500 units | 10–16 wks |
| 🇯🇵Nikon nikon.com ↗ | Tokyo, JP | Imaging & optics | 500 units | 10–16 wks |
| 🇩🇪ZEISS zeiss.com ↗ | Oberkochen, DE | Optics & optoelectronics | 500 units | 10–16 wks |
| leica-camera.com ↗ | Wetzlar, DE | Cameras & optics | 500 units | 10–16 wks |
| flir.com ↗ | Wilsonville, US | Thermal imaging | 500 units | 10–16 wks |
