Overview

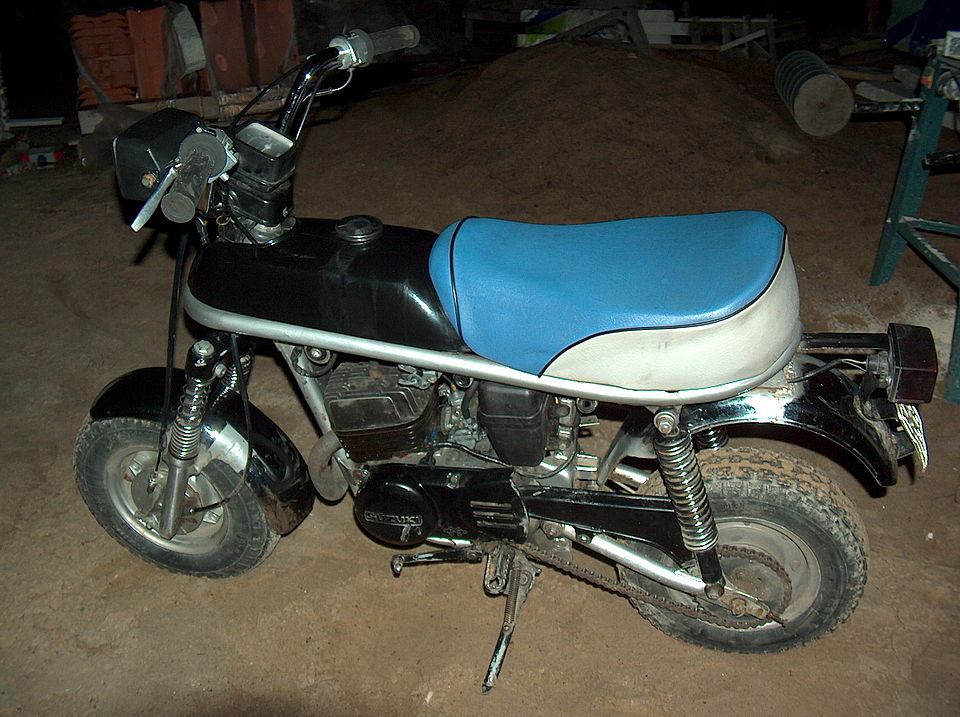

A mini bike is a scaled-down motorcycle built from the cheapest reliable parts industry makes: a horizontal-shaft utility engine, a bent-tube frame, go-kart drive components, and small implement tires. The format dates to 1950s American garages, where surplus lawnmower engines met welded tube frames; today's machines (Coleman CT200U, Baja MB200, and kin) are factory versions of the same recipe. Nothing about it is road legal — no lights, no suspension, no homologation — and that constraint is what keeps it simple enough to sell for a few hundred dollars.

Engine

The Four-Stroke Engine is the ubiquitous 212 cc "clone" pattern: an air-cooled overhead-valve single descended from the Honda GX200, produced in enormous volume as a generator and pressure-washer engine. The Cylinder Block pairs an aluminium casting with an iron bore liner at 70 × 55 mm; pushrods from a single cam gear work two valves. It makes about 4.8 kW at a governed 3,600 rpm — modest, but the torque curve is flat and the engine runs on any pump gasoline.

Everything around it is utility-engine practice rather than motorcycle practice. Ignition is a Flywheel Magneto — magnets cast into the flywheel sweep an external coil, so there is no battery anywhere on the vehicle. Starting is the Recoil Starter rope. Fuel falls by gravity from the tank to a 19 mm float-bowl Carburetor. Lubrication is splash only — a dipper on the rod flings sump oil around the case — which is why the Low-Oil Sensor exists: with no pump and no pressure to monitor, a float switch simply grounds the ignition when the level drops. Owners routinely derestrict these engines (governor removal, jet and Air Cleaner changes) to double output, a modification culture large enough that aftermarket suppliers sell stage kits.

Transmission

The drive line is borrowed from karting. Base models use a Centrifugal Clutch: spring-loaded shoes on the crankshaft that fling outward and grab the drum around 1,800 rpm, giving automatic engagement and exactly one ratio. The better machines fit a Torque Converter — the 30-series two-pulley CVT in which a Drive Belt rides pulleys that change effective diameter with rpm and load, sweeping from about 2.7:1 at launch to 0.9:1 overdrive. The CVT transforms the bike: it launches without bogging, climbs without stalling, and spares the clutch-glazing that kills shoe clutches under heavy riders. Either way, power leaves through a #35 Drive Chain to a 60-tooth Rear Sprocket, roughly 6:1 final reduction, all hidden behind the Chain Guard. Chain tension is set the agricultural way: the whole engine slides in the slotted Engine Plate.

Chassis

The Frame Loop is the entire chassis — bent 25 mm steel tube, welded into a loop that is backbone, seat rail, and axle mounts at once. There is no rear suspension and the Front Fork is rigid or nearly so; compliance comes from the fat 145/70-6 Tires run at 80–120 kPa on bolted-together split Wheel Rims, the same principle a dirt bike uses but with the tires doing all of the work. The Rear Hub carries sprocket on one flange and the 160 mm Brake Disc on the other, squeezed by a cable-pulled Brake Caliper from the left-hand Brake Lever. Most mini bikes have no front brake at all — at 40 km/h on dirt, a single rear disc is judged sufficient, and the omission saves a caliper, a cable, and a lever.

Controls and bodywork

The rider interface is a crossbraced Handlebar, a spring-return Twist Throttle cabled to the carburetor, and a Kill Switch that stops the engine by grounding the magneto — the only electrical control on the machine. Folding Footpegs and a padded Saddle at 560 mm set the famously knees-up riding position; the 3.6-litre Fuel Tank sits on the engine and feeds through a shutoff petcock. Steel Fenders and a motocross-style Number Plate complete the bodywork.

The result weighs about 45 kg, costs less than a bicycle drivetrain group, and tops out near 40 km/h — a vehicle whose entire engineering brief is maximum grin per dollar with a parts list a teenager can service with hand tools.
